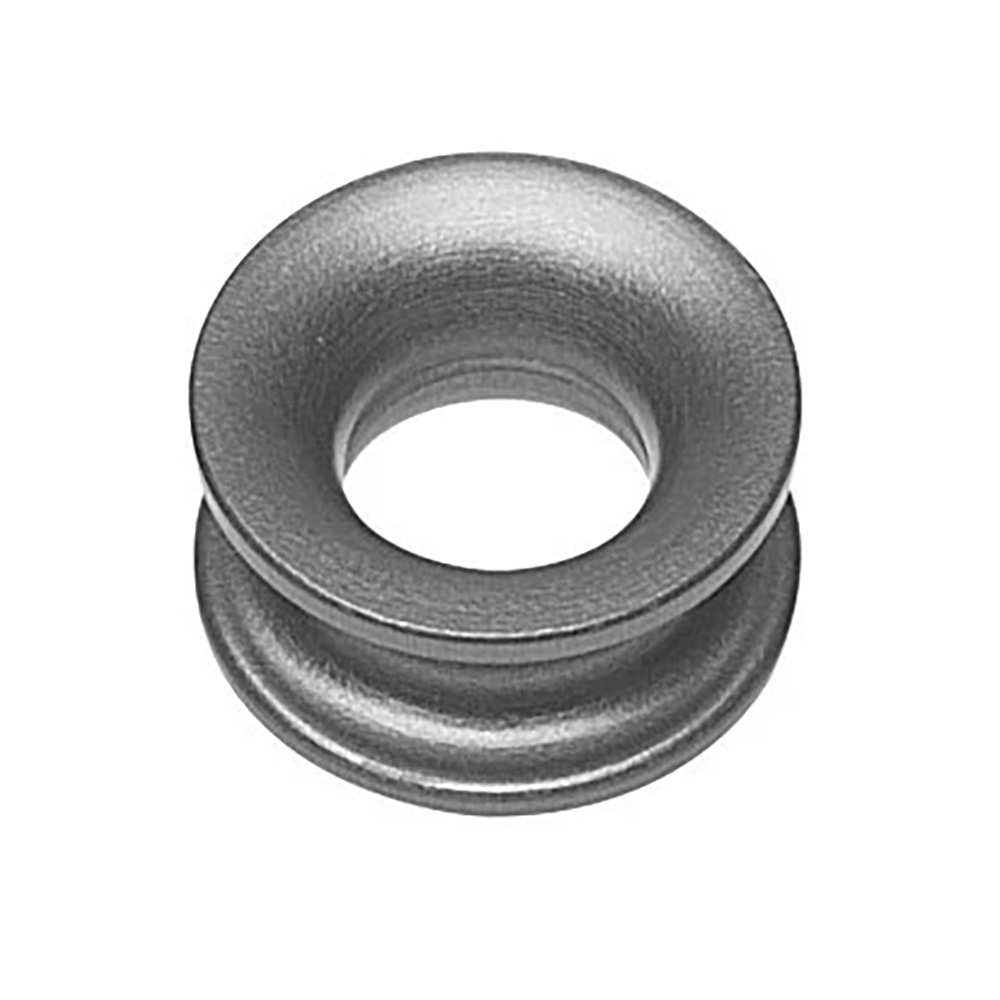

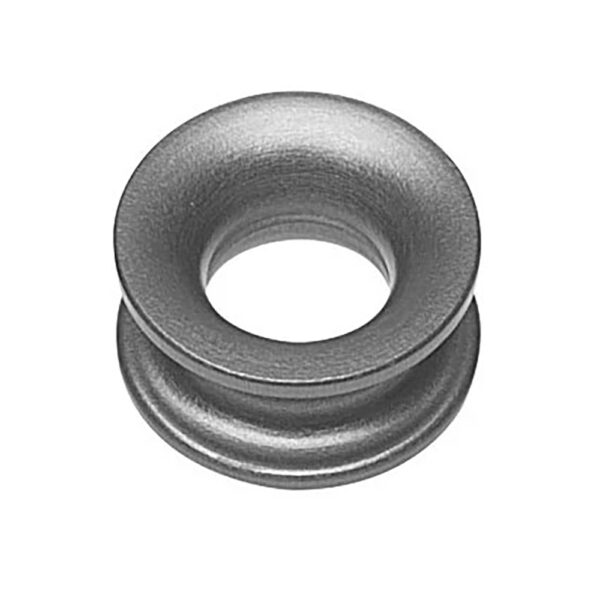

High Load Eye 6mm Bore

Available in six sizes. Manufactured in marine-grade aluminum with a hard anodized finish. These lightweight high-load eyes are suitable for a variety of uses on board, from lazy jacks, barber haulers, and ast base tidies to stanchion lead eyes. The smallest size can be attached using a 3mm line with a bullseye diameter of 6mm. The largest size can be attached using a 16mm line with a bullseye diameter of 28mm.

Ergonomically designed to maximize the strength and efficiency of the eye. With HV500 hard anodizing and the profile of the curved surfaces, these have been developed to keep friction as low as possible. The range has amazing strength-to-weight ratios, making them ideal for use as kickers, tweakers, genoa barber haulers, and anywhere where weight saving and strength are important.

Wear Resistance

The hard anodizing HV500 has amazing low friction properties. After over 300 hours on an abrasion test machine, no visual signs of wear on the anodized coating could be found.

Features:

• High load eye compared to a standard plain bearing block on average across the range
• Friction increased by only 15%
• Strength increased by 272%
• Weight reduced by 51%
• Data based on using 4mm D12 SK75 Dyneema core

Manufacturer : Barton Marine
Manufacturer Part No : 60449
UPC : 5035088604494
