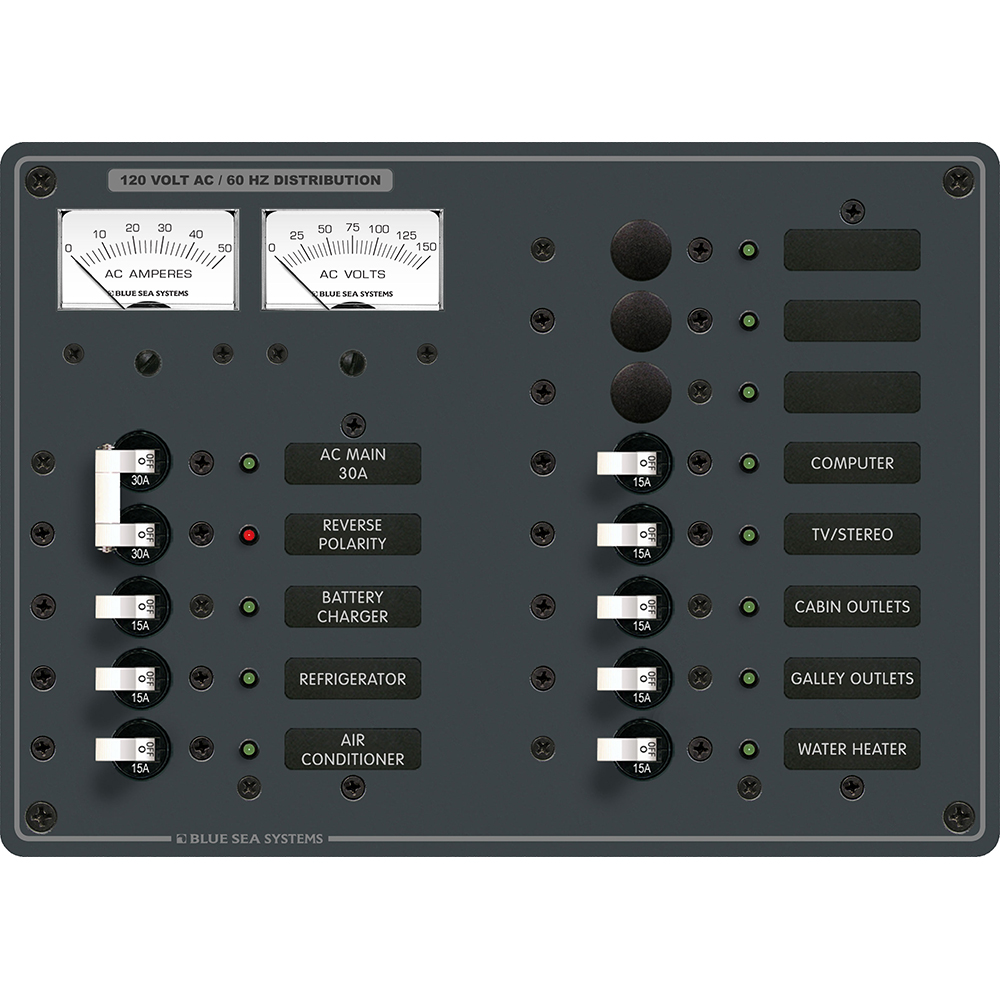

8076 AC Main +11 Positions Toggle Circuit Breaker Panel – White Switches

Features:

• Red reverse polarity indicating LED
• All hot, neutral and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels – No kit required
• “ON” indicating LEDs installed in all circuit positions

Specifications:

• Positions: 11
• Nominal Voltage: 120v AC
• Height: 7.5″
• Width: 10.5″

Included:

• (1) 8031 Basic AC Panel Label Set – 30 Labels
• (12) 8034 LED – 120v AC Green
• (1) 8066 LED – 120v AC Red
• (8) 7210 A-Series White Toggle Circuit Breaker – Single Pole 15A (Branch)
• (1) 7238 A-Series White Toggle Circuit Breaker – Double Pole 30A (Main)
• (1) 8244 AC Micro Voltmeter – 0 to 150v AC (Meter)
• (1) 8246 AC Micro Ammeter – 0 to 50A w/ Coil (Meter)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 8076
UPC : 632085080761
