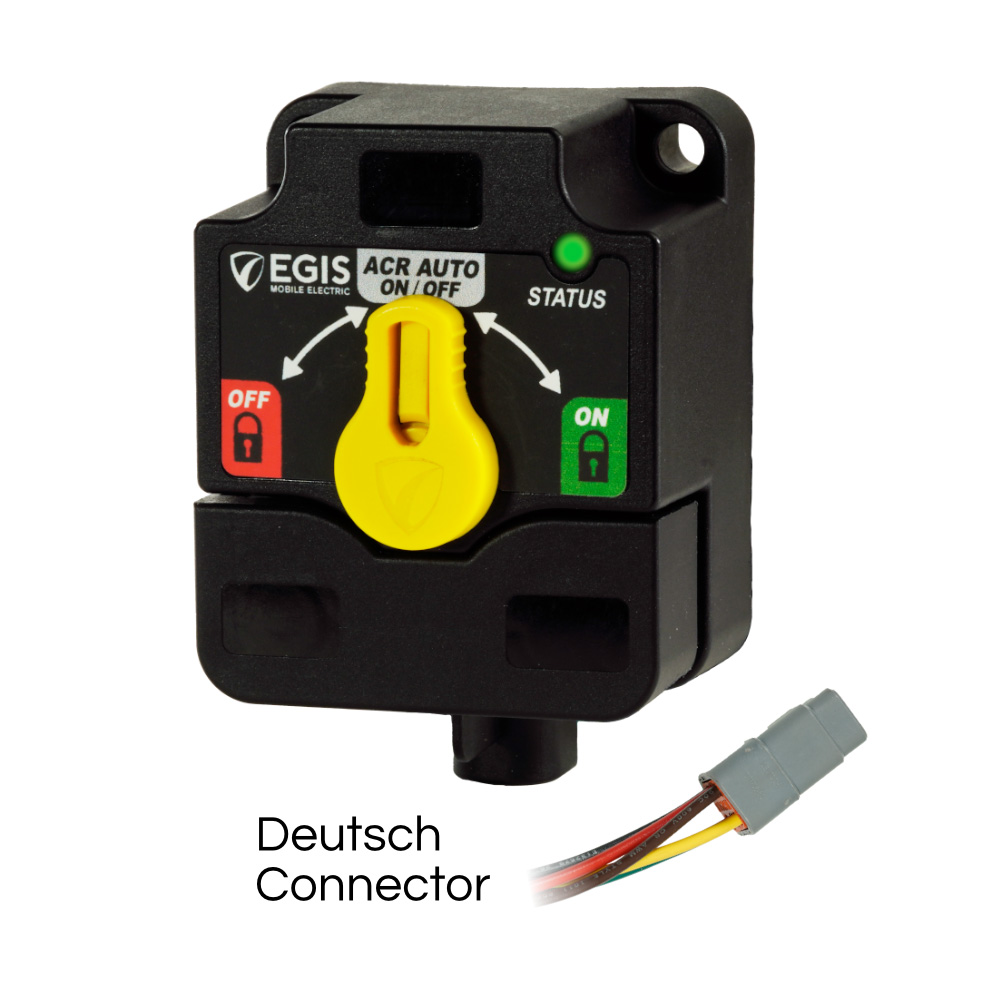

XD Series Single Flex 2 ACR-Relay with Knobs – DTM Conn

This Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.

Applications:

  • Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.
  • Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories.

Features:

  • Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware
  • The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions)
  • Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers
  • Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays
  • 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality

Specifications:

  • Total Continuous Current Amps: 500
  • Max Cranking Current (Amps): 1500
  • Mechanical Switching Life: 1,000,000 Cycles
  • Voltage Range (VDC): 8-36
  • Off-State Current Draw (mA): 1.3
  • State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features:

Led Status Display

The easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED.

3-Position Manual Override

Force each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition.

40 Circuit Label Sheet Included

Convenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Stainless Hardware

Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.

Programmable

Via dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications.

Smaller Footprint

XD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum.

Integrated Vent

High-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments.

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Egis Mobile Electric
Manufacturer Part No : 8810-1300
UPC : 850035199831

Specs & Manuals

Additional information

Weight 1.20 lbs
Dimensions 8.00 × 4.00 × 3.00 in
