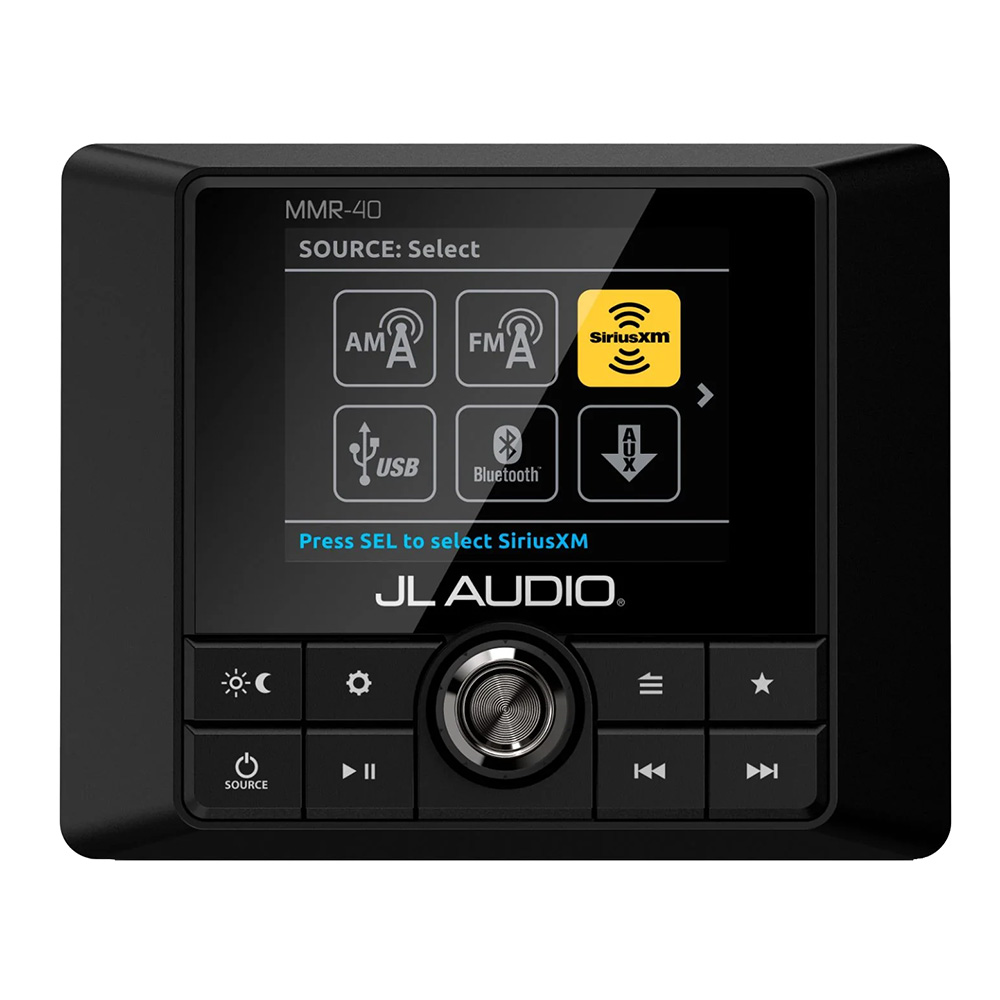

MMR-40 Full-Function Wired NMEA 2000® Network Controller for MediaMaster®

The MMR-40 is an NMEA 2000® Network Controller engineered to add full-function, auxiliary control to MediaMaster® source units.

Outfitted with an NMEA 2000® Micro-C connector, the MMR-40 connects to a host MediaMaster® source unit in two ways:

• Direct interface with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included)
• Direct connection of one MMR-40 with one host MediaMaster® source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000® network

Once connected, the MMR-40 automatically recognizes the host MediaMaster® source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-color, 2.8-inch LCD, resulting in a complete MediaMaster® user experience.

The MMR-40 is equipped with an independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66-rated) chassis is built to withstand the harshest environments.

The MMR-40 includes the following features:

• NMEA 2000® Certified (LEN 4)
• Easy-to-read, high-brightness, 2.8-inch full-color LCD with large backlit controls
• Independent day/night display themes and lighting controls
• IP66 rated for real marine duty
• Protective Sun Cover included

Note: The MMR-40 is not a stand-alone receiver and does not function without a connected MediaMaster® source unit. All remote control functionality of the MMR-40 is solely derived from the host source unit. Functionality of the MMR-40 requires connection to a NMEA 2000® network or use of MMC-PN2K powered network cables (sold separately).

Manufacturer : JL Audio
Manufacturer Part No : 010-03129-00
