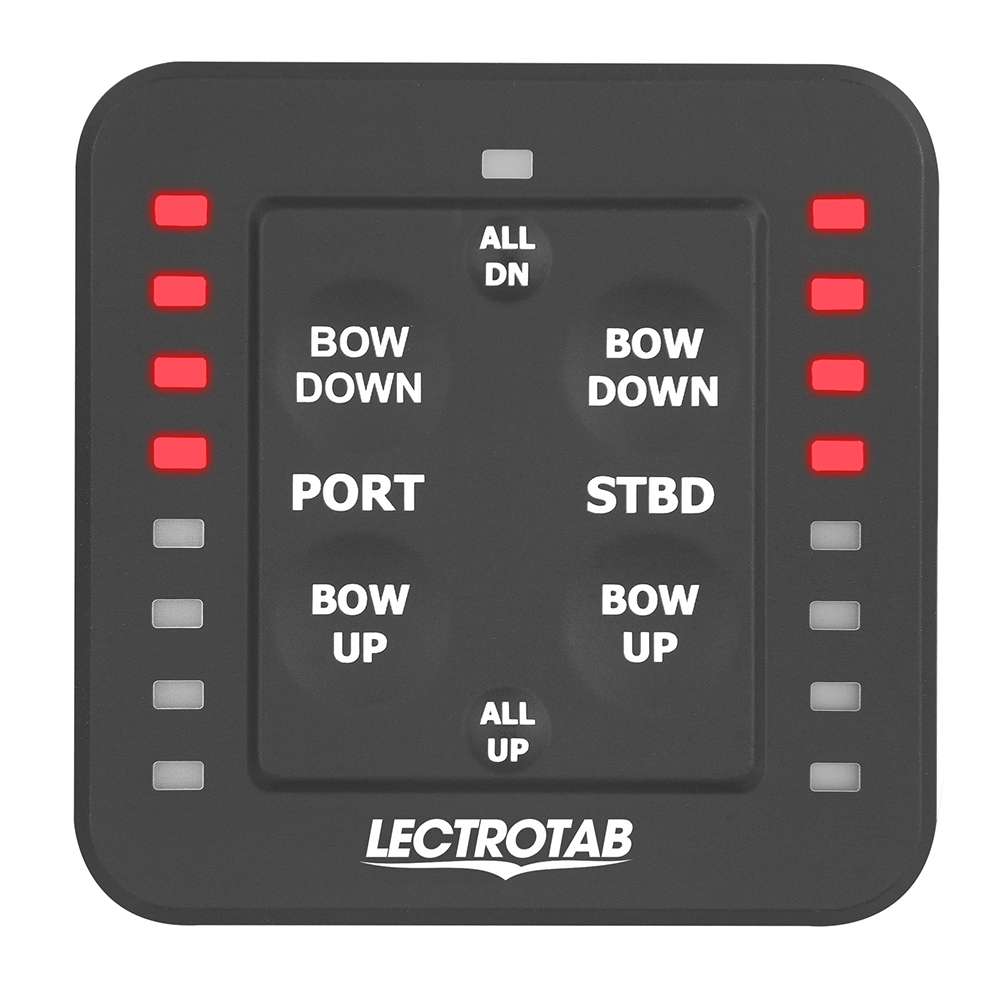

One-Touch Leveling LED Control

Lectrotab’s one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Convenience, easy of use and reliability will make boating more enjoyable.

Features:

• Microprocessor-based trim tab control with LED tab position indicators
• Single-button press to move both tabs up or down simultaneously
• Automatic return to last tab position if the ignition key is turned off and back on again
• Completely sealed, completely waterproof and will not deteriorate in sunlight
• No external power module required for single or dual actuator per tab systems
• LED tab position indicators dim automatically in darkness and brighten in the sunlight
• Adjustable programming features

Technical Specifications:

• Display Color – Black
• Actuators per Tab Plate – One (1) or Two (2)
• Dimensions (W x H) – 3″ x 3″ (77 x 77 mm)
• Mounting Hole Cutout (H x W) – 2.25″ x 2.5″ (57 to 64 mm)
• Operating Voltage – 12 or 24 V

*Sold as an Individual

Manufacturer : Lectrotab
Manufacturer Part No : SLC-11
UPC : 850046155055
