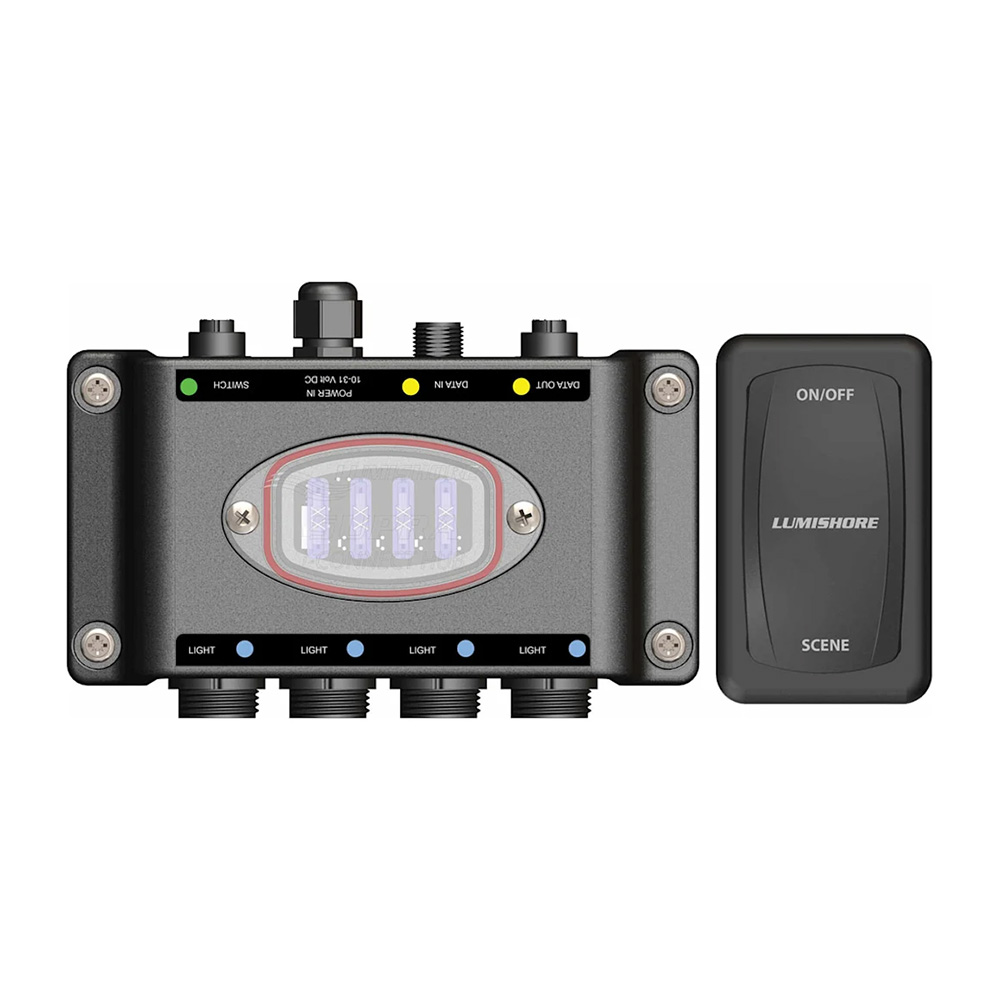

SUPRA THS/TIX i-Connect Installation/Upgrade Kit

The SUPRA Installation/Upgrade Kit enhances the function of your Dual Color SUPRA lights!

It’s plug-and-play junction box makes for easy installation and includes the fuses and easy-connect terminals for the lights and the switch.

This kit is required for all underwater TIX/THX models and optional for the SMX53.

Features:

• Full control via certified MFD or EOS-LUX-SUPRA Display
• Specially Designed for Ease of Installation
• Plug and Play Connections
• IP68 Field Installable Connectors (supplied)
• Built-in Switching Power Relay
• Replaceable Blade Fuse For Each Light
• Status Indication LED for Each Light
• Built-In Noise Filter

Specifications:

• Number of Lights per Hub: 4
• Max Number of Hubs per Installation (Surface Mount): 4 Hubs (16 Lights)
• Connections: SMX – Field Installable Connector (supplied with Hub)
• Fuses: Replaceable Blade Fuses. Each Light Individually Fused
• Status Indication LEDs: Yes – for Each Light
• Voltage Range: 10.5 – 31V DC
• Max Input Current: 40 A
• Max Output Current (i.e., Max Current Per Light): 10 A
• Cable Entry / Exit: IP68 Connections
• Switching Method: Built-in Relay
• Noise Suppression: Built-in Noise Filter
• Reverse Polarity Protection: Yes
• Lumi-Link Compatible: Yes

Manufacturer : Lumishore
Manufacturer Part No : 010-04358-00
UPC : 847772002227
