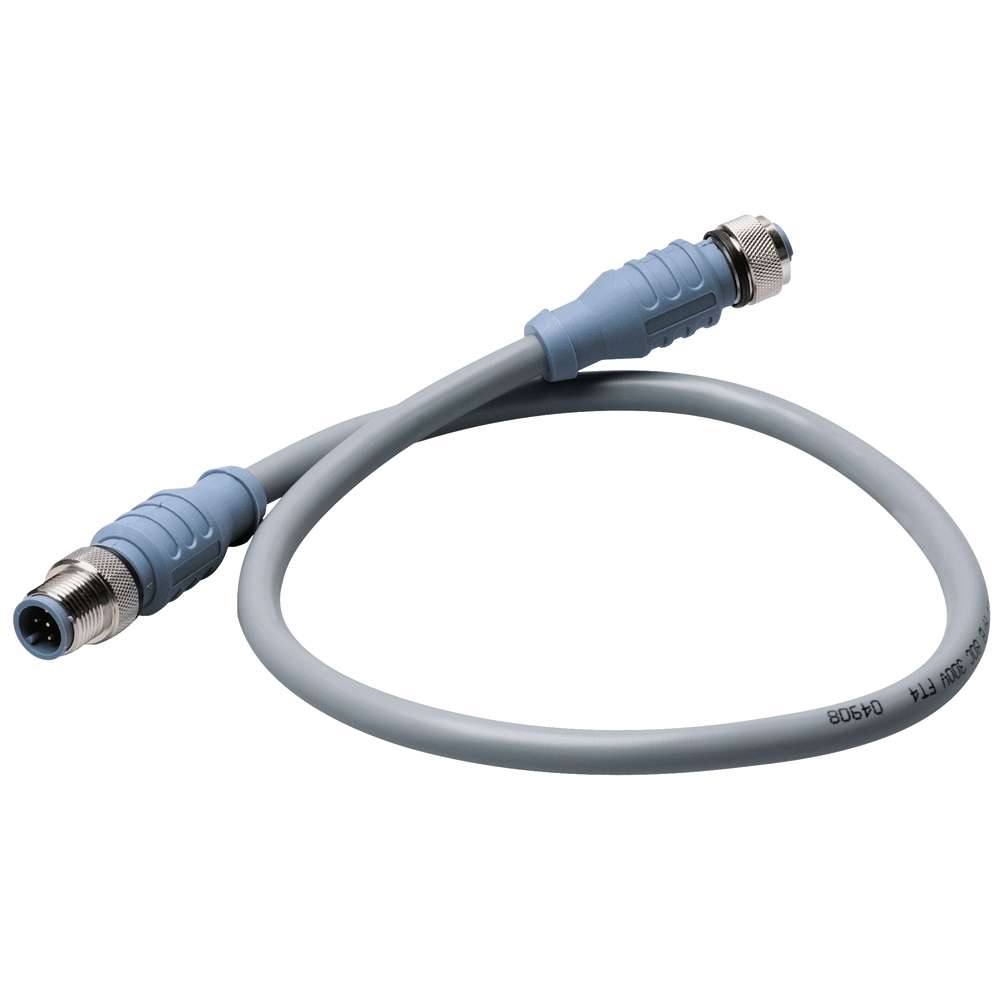

Maretron Micro Double-Ended Cordset – 10 Meter

MPN: CM-CG1-CF-10.0
SKU: CW31801
Maretron Micro Double-Ended Cordset - 10 Meter

Maretron Micro Double-Ended Cordset – 10 Meter

MPN: CM-CG1-CF-10.0

SKU: CW31801

The Maretron CM-CG1-CF-10.0 is a high-quality mechanical and electrical connector designed for durability and performance. It features robust materials and environmental protection, making it suitable for various applications. The product meets stringent safety and approval standards, ensuring reliability. Its specifications include impressive ratings for current, voltage, and temperature.

Features
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Current Rating: 4.0 Amps
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C
  • NMEA: NMEA 2000 Approved

Categories: ,

11 in stock

$51.90

Free Shipping

OEM Parts

11 in stock

-

With 2-Day Shipping

Get By Thursday 05/08

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Maretron Micro Double-Ended Cordset – 10 Meter

[mwai_chatbot id="default"]

About your product

Product Description

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

    Manufacturer : Maretron
    Manufacturer Part No : CM-CG1-CF-10.0
    UPC : 873804001609

    • Specs & Manuals

    Additional information

    Weight 1.50 lbs
    Dimensions 7.00 × 7.00 × 3.00 in
    Brand

    UPC

    MPN
