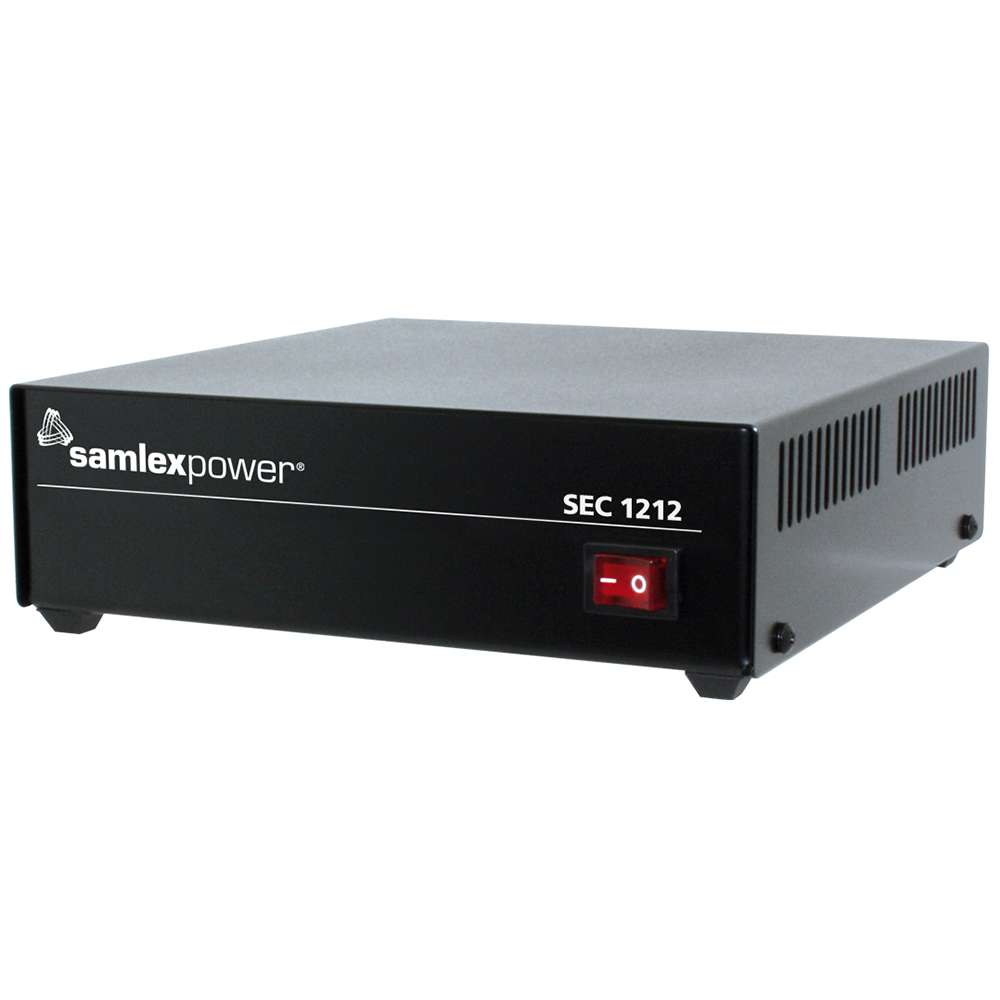

Desktop Switching Power Supply – 120VAC Input, 12V Output, 10 Amp

This high efficiency UL-60950-1 approved AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 10 Amps with an AC input of 120 Volts, 60 Hz (230 Volts, 50 Hz model also available). These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.

Features:

• Advanced switch-mode technology
• Reliable power with minimum weight and size
• Circuit innovations minimize output voltage ripple and RFI
• Input voltage can be set at 120VAC or 240VAC (internal jumper)
• UL listed to both USA & Canadian safety standards

Specifications:

• Input: 100-130 VAC
• Output: 13.8 VDC
• Amps: 10 Amps
• Fuse: 3 Amps
• Weight: 3.4 (lbs)
• Weight: 1.54 (kg)
• Dimensions: 8.19 x 7.28 x 2.4 (in)
• Dimensions: 20.8 x 18.5 x 6.1 (cm)
• Safety: UL, FCC
• Warranty: 3 Year Limited

Applications:

• Two way radio base stations
• Communications systems
• Security systems
• Test equipment
• Plotters
• GPS receivers
• Automotive & Marine displays
• DC computers
• 12 Volt lighting systems
• OEM applications

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Samlex America
Manufacturer Part No : SEC-1212
UPC : 622988030512
