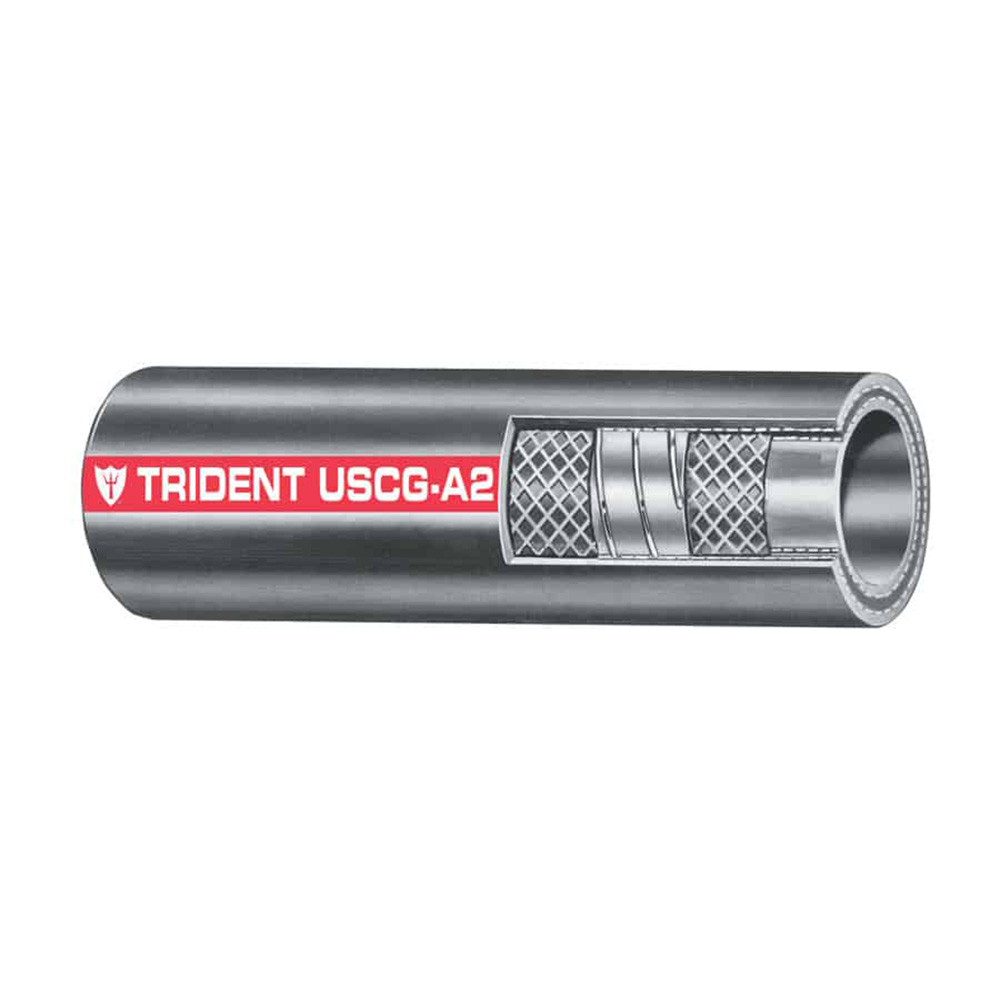

1-1/2″ x 50′ Coil Type A2 Fuel Fill Hose

Trident 1-1/2″ ID A2 fuel fill hose for gasoline (including ethanol blends) and diesel (including bio diesel blends).

Features:

• This hose is built with the best fuel, fire, and age-resistant formulation
• Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
• Also, provides excellent bend-ability

Application:

• Marine Fuel Hose for fill and vent plus diesel distribution
• Approved, for all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

• Tube & Cover: NBR / Neoprene
• Reinforcement: High tenacity polyester 2 spiral, spring steel helix
• Temperature Range: -20°F to 212°F (-20ºC to 100ºC)
• Length: 50 ft. (15.24 m) Coil

Specifications:

• Inner Diameter: (inch) 1/2″ / (mm) 38
• Outer Diameter: (inch) 2 / (mm) 51
• Wall: (inch) 0.25 / (mm) 6.4
• Working Pressure: (psi) 60 / (mpa) 0.41
• Bend Radius: (inch) 5.5″ / (mm) 140

*The #327 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2; and is NMMA Type Accepted, CE certified, and Lloyds Registry Type Approved

Manufacturer : Trident Marine
Manufacturer Part No : 327-1126
UPC : 704917009056
