Wicahrd Self-Locking Long D Shackle – Diameter 5mm – 3-16″

MPN: 01212
SKU: CW93096

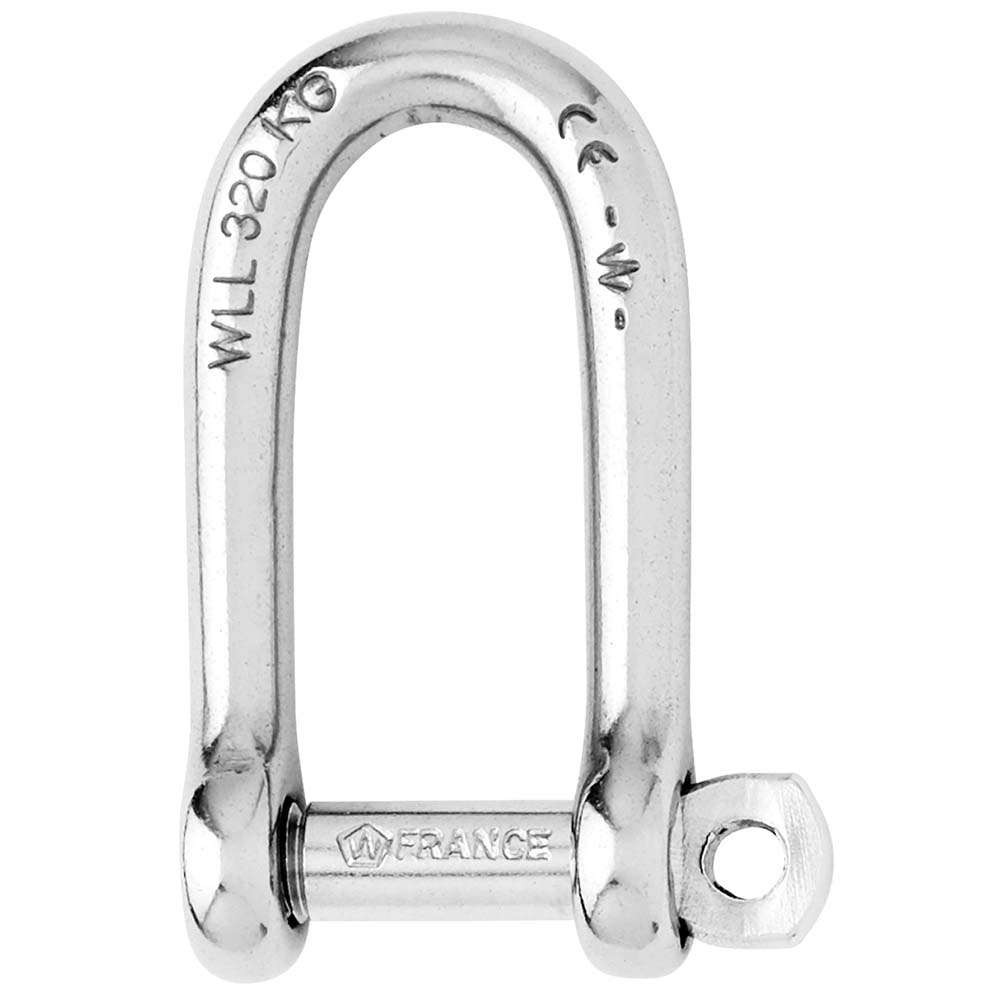

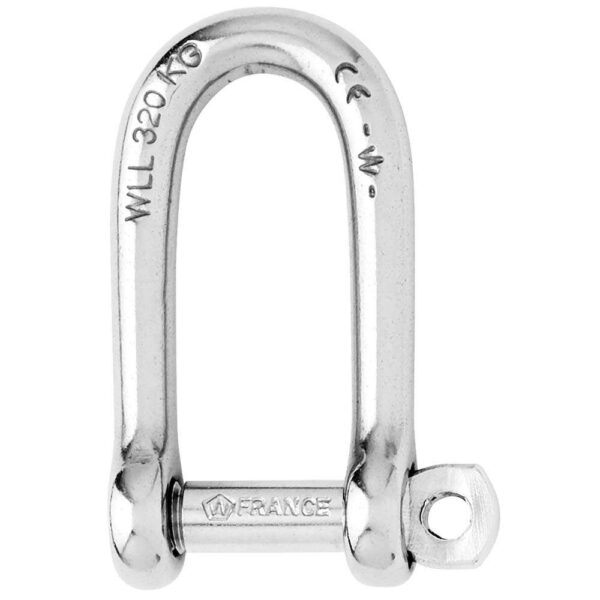

Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3-16"
Wicahrd Self-Locking Long D Shackle - Diameter 5mm - 3-16" - Image 2

Wicahrd Self-Locking Long D Shackle – Diameter 5mm – 3-16″

MPN: 01212

SKU: CW93096

The Self-Locking Long D Shackle is crafted from grade 316L stainless steel, ensuring durability and reliability. It features a self-locking mechanism that prevents loosening from vibrations, making it ideal for industrial applications. With impressive working and breaking loads, it is designed for various attachment needs. This shackle is marked with CE certification and a batch number for quality assurance.

Features
  • Self-locking long shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications

Categories: ,

2 in stock

$17.29

UPS Ground

OEM Parts

2 in stock

-

With 2-Day Shipping

Get By Saturday 05/10

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Wicahrd Self-Locking Long D Shackle – Diameter 5mm – 3-16″

[mwai_chatbot id="default"]

About your product

Product Description

Self-Locking Long D Shackle – Diameter 5mm – 3/16″

Features:

  • Self-locking long shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications
  • CE Marking and batch number

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 880
  • WLL (lb) 440
  • Breaking load (lb) 2200
  • Weight (lb) 0.037

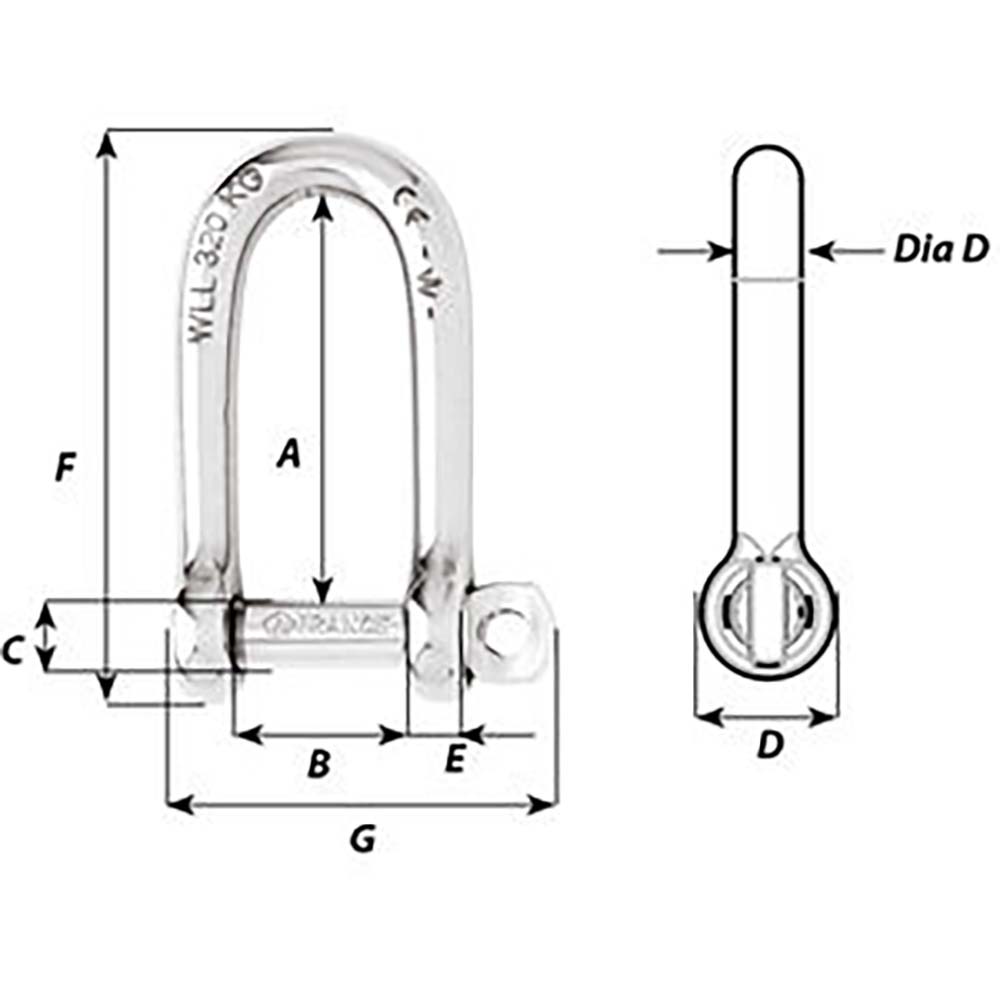

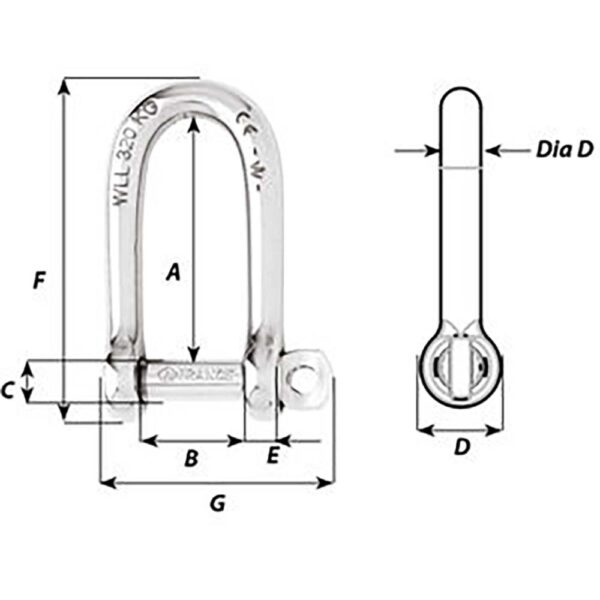

Dimensions (see 2nd image):

  • A (inch) 1-9/64″
  • B (inch) 25/64″
  • C (inch) 13/64″
  • D (inch) 25/64″
  • D diameter (inch) 13/64″
  • E (inch) 5/32″
  • F (inch) 1-39/64″
  • G (inch) 1-1/32″

Manufacturer : Wichard Marine
Manufacturer Part No : 01212
UPC : 768536012125

Specs & Manuals

Additional information

Weight 0.05 lbs
Dimensions 6.00 × 2.00 × 1.00 in
