Summary

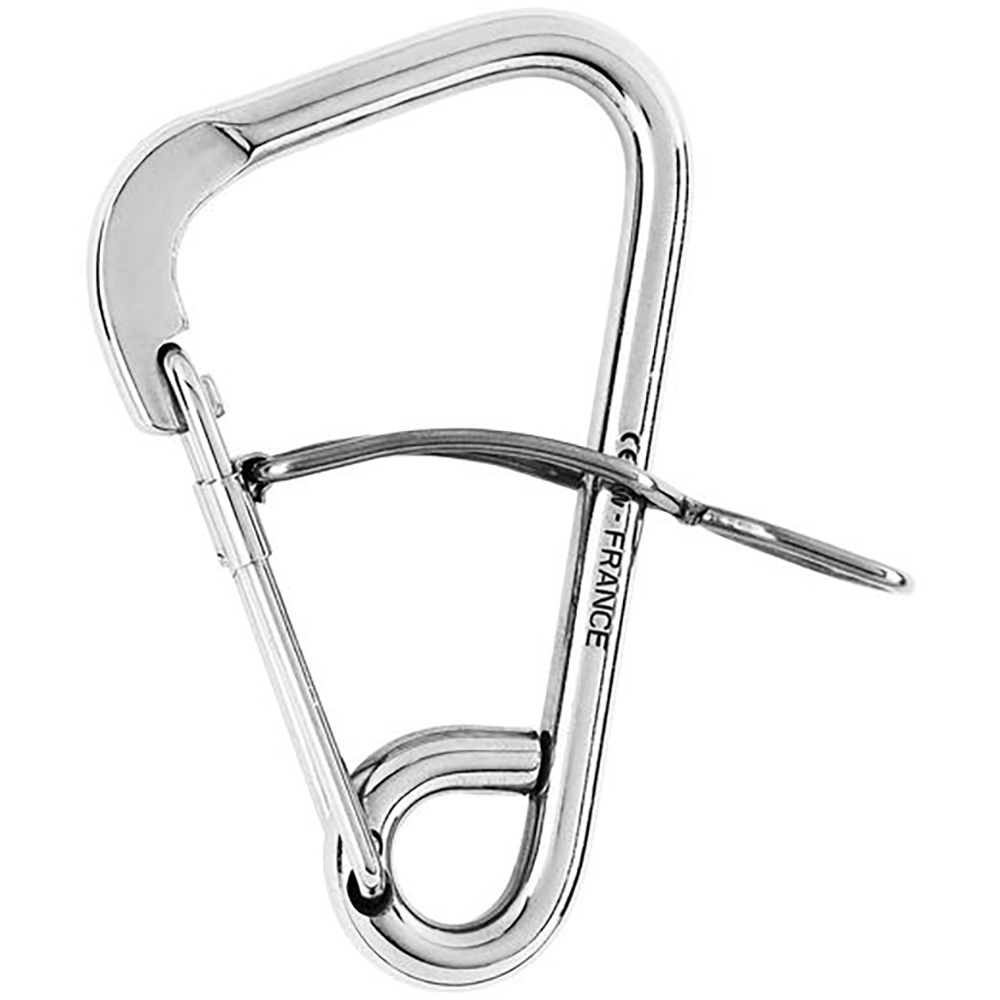

The Automatic Mooring Hook, with a length of 170mm (6-11/16"), is designed for efficient mooring and can be installed on most boat hooks. Made from 316L stainless steel, it weighs 0.838 lbs (380g) and features specific dimensions for various applications. The hook is suitable for both nautical and industrial uses, with a working load limit that is five times the breaking load. This product is sold individually and is manufactured by Wichard Marine, part number 02329.

Features

• Automatic mooring hook
• Perfect for mooring
• Can be installed on most boat hooks

Applications

• Mooring application

Specifications

• Materials: 316L stainless steel grade
• Weight: (lb) 0.838 / (g) 380

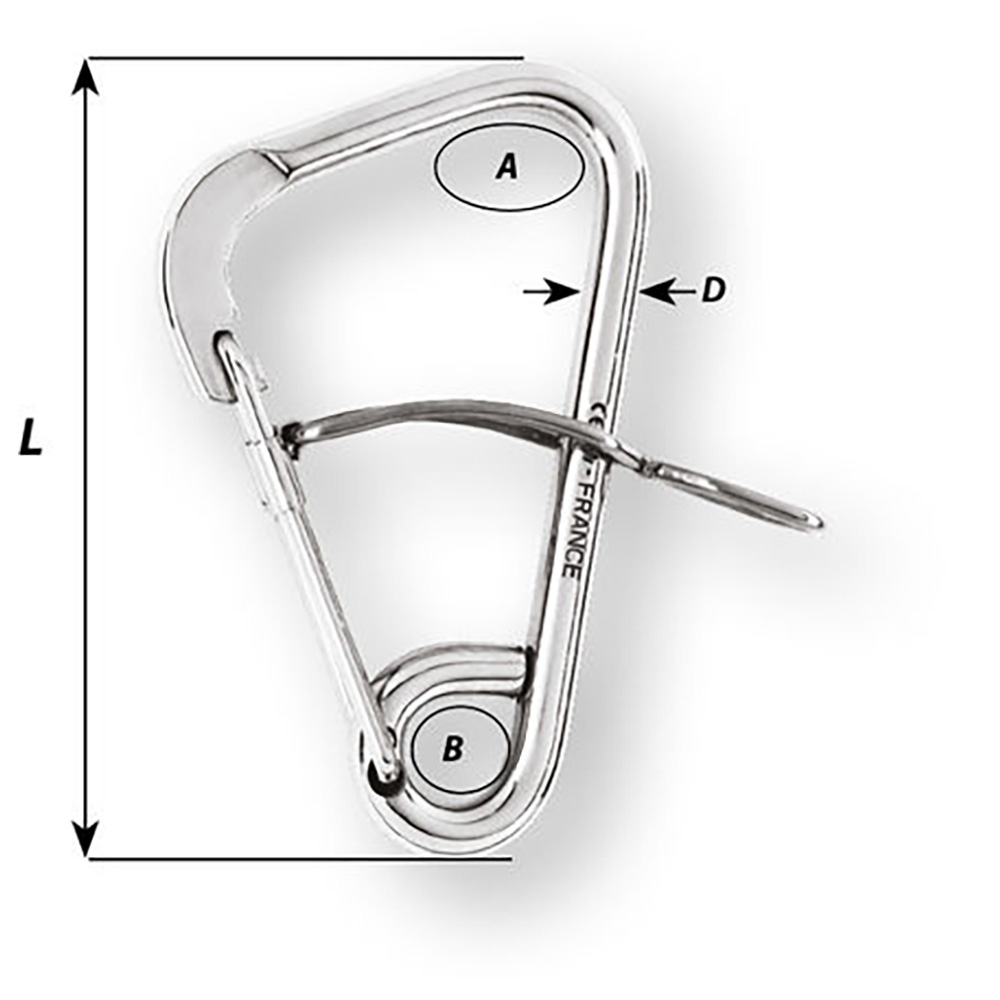

Dimensions

• A: (inch) 1 3/16" / (mm) 30
• B: (inch) 25/32" / (mm) 20
• D diameter: (inch) 15/32" / (mm) 12
• Length: (inch) 6 11/16" / (mm) 170

Caption

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
