Wichard Captive Pin D Shackle – Diameter 4mm – 5-32″

MPN: 01401
SKU: CW93109

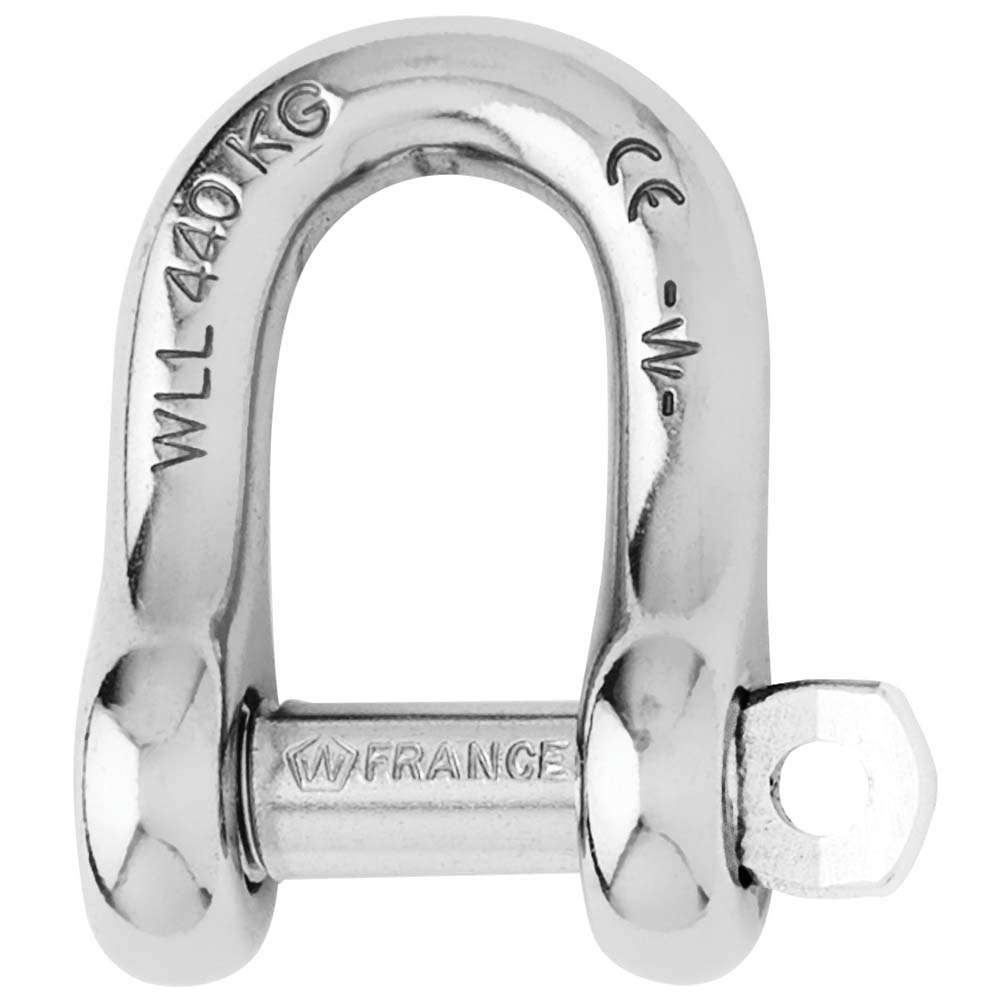

Wichard Captive Pin D Shackle - Diameter 4mm - 5-32"
Wichard Captive Pin D Shackle - Diameter 4mm - 5-32" - Image 2

Wichard Captive Pin D Shackle – Diameter 4mm – 5-32″

MPN: 01401

SKU: CW93109

The Captive Pin D Shackle is a robust and reliable fastening solution made from grade 316L stainless steel. Its unique design ensures the pin remains connected to the body, preventing loosening from vibrations. With impressive working and breaking loads, it is ideal for various applications. This shackle is perfect for both standard and attachment uses.

Features
  • Captive pin "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Categories: ,

4 in stock

$18.91

UPS Ground

OEM Parts

4 in stock

-

With 2-Day Shipping

Get By Monday 06/16

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Wichard Captive Pin D Shackle – Diameter 4mm – 5-32″

[mwai_chatbot id="default"]

About your product

Product Description

Captive Pin D Shackle – Diameter 4mm – 5/32″

Features:

  • Captive pin “D” shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle
  • Attachment applications: blocks, head…

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 700
  • WLL (lb) 440
  • Breaking load (lb) 2200
  • Weight (lb) 0.02

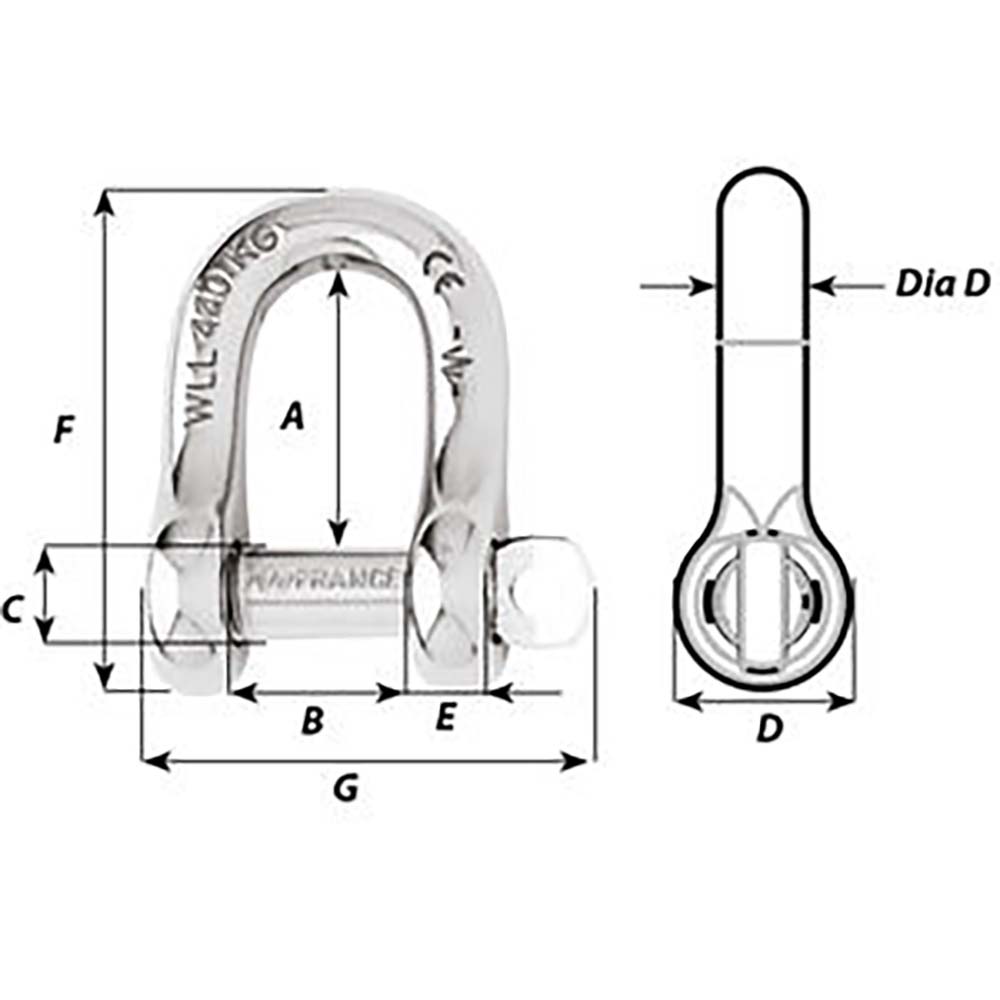

Dimensions (see 2nd image):

  • A (inch) 33/64″
  • B (inch) 5/16″
  • C (inch) 13/64″
  • D (inch) 23/64″
  • D diameter (inch) 5/32″
  • E (inch) 5/32″
  • F (inch) 15/16″
  • G (inch) 55/64″

Manufacturer : Wichard Marine
Manufacturer Part No : 01401
UPC : 768536014013

Specs & Manuals

Additional information

Weight 0.05 lbs
Dimensions 6.00 × 2.00 × 1.00 in
