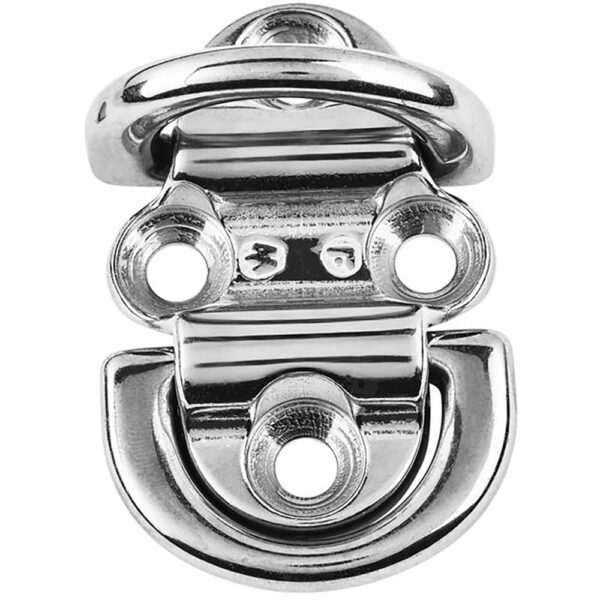

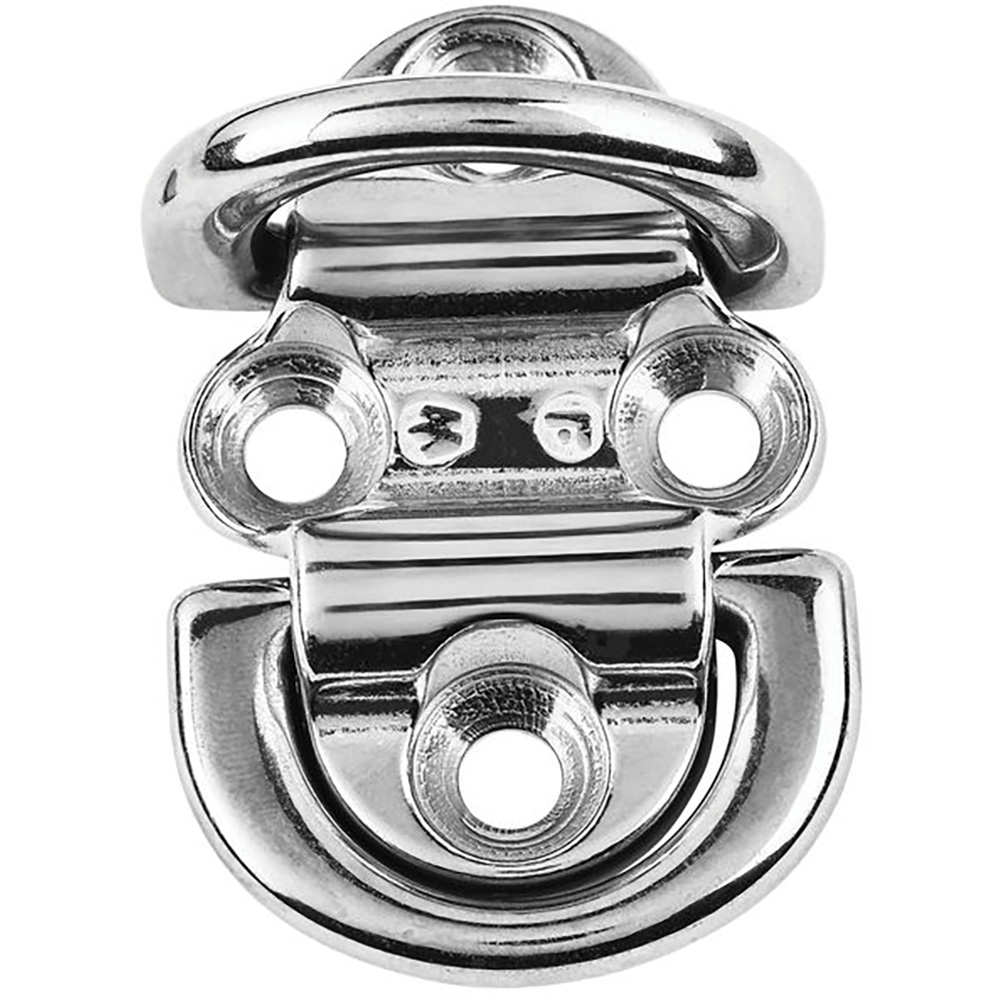

Double Folding Pad Eye – 8mm Diameter – 5/16″

Features:

• Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
• Perfect solution attachment (stay, blocks, jib tack point)
• Possibility to attach several stays
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates noise and unpleasant vibrations

Applications:

• For any fastening/attachment application
• Allows to attach several shrouds

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 9470 / (kg) 4300
• Weight: (lb) 0.556 / (g) 252

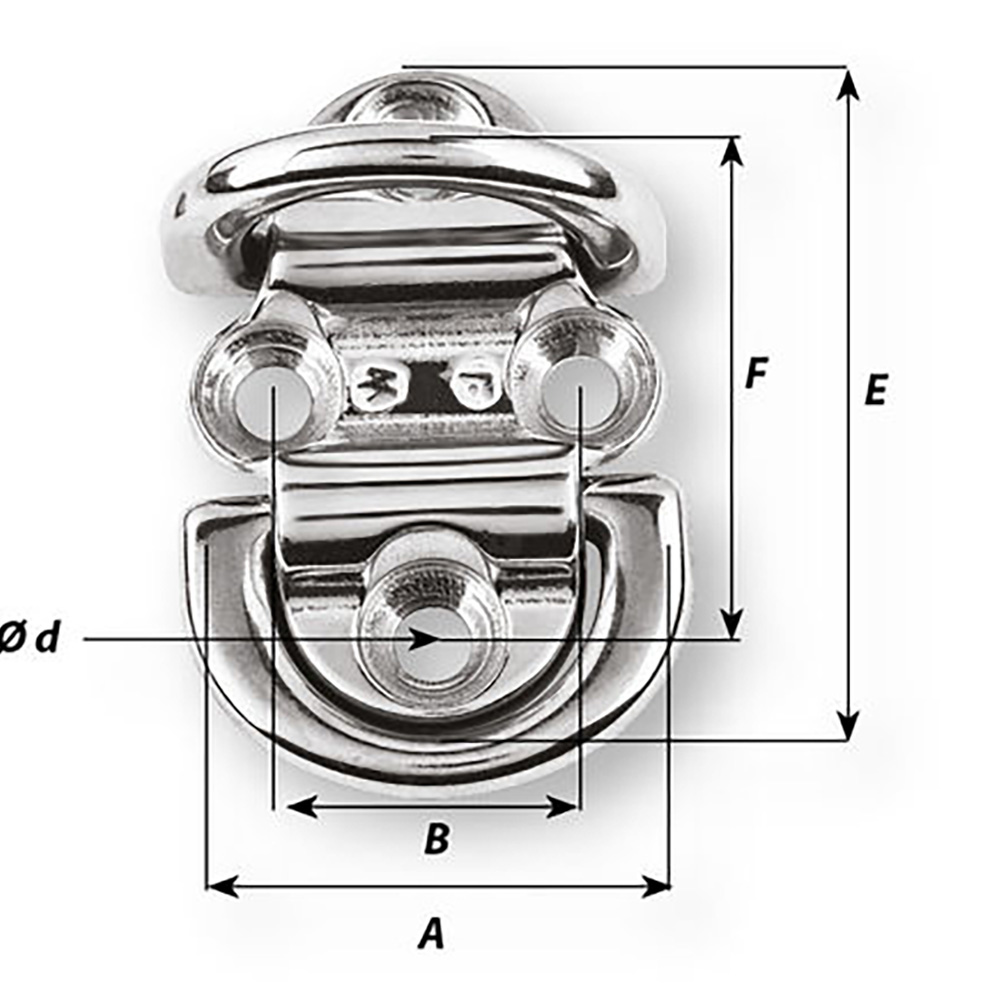

Dimensions:

• A: (inch) 2 21/64″ / (mm) 59
• B: (inch) 1 3/8″ / (mm) 35
• C: (inch) 43/64″ / (mm) 17
• d diameter: (inch) 21/64″ / (mm) 8.5
• D diameter: (inch) 5/16″ / (mm) 8
• E: (inch) 3 3/16″ / (mm) 81
• F: (inch) 2 21/64″ / (mm) 59

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Manufacturer : Wichard Marine
Manufacturer Part No : 06565
