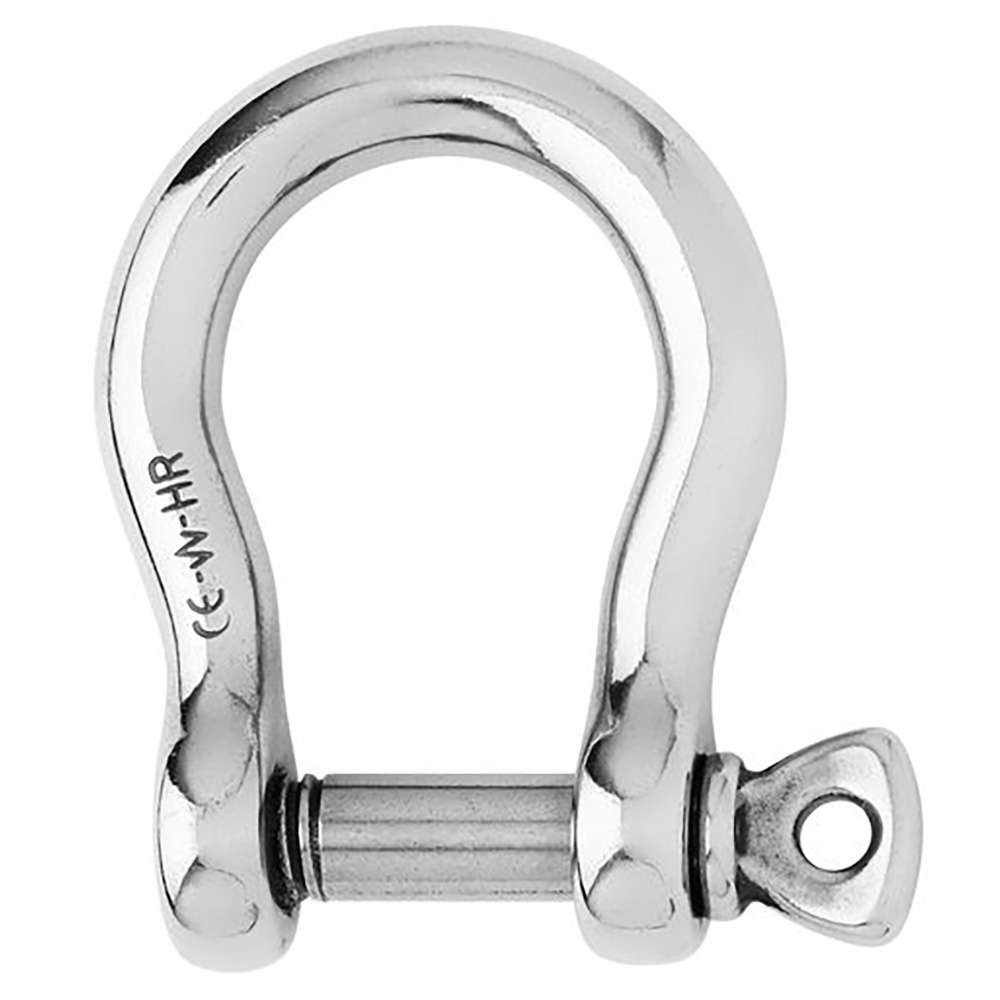

HR Bow Shackle – 16mm Diameter – 5/8″

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use it for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 14990 / (kg) 6800
• WLL: (lb) 8370 / (kg) 3800
• Breaking load: (lb) 41880 / (kg) 19000
• Weight: (lb) 1.16 / (g) 526

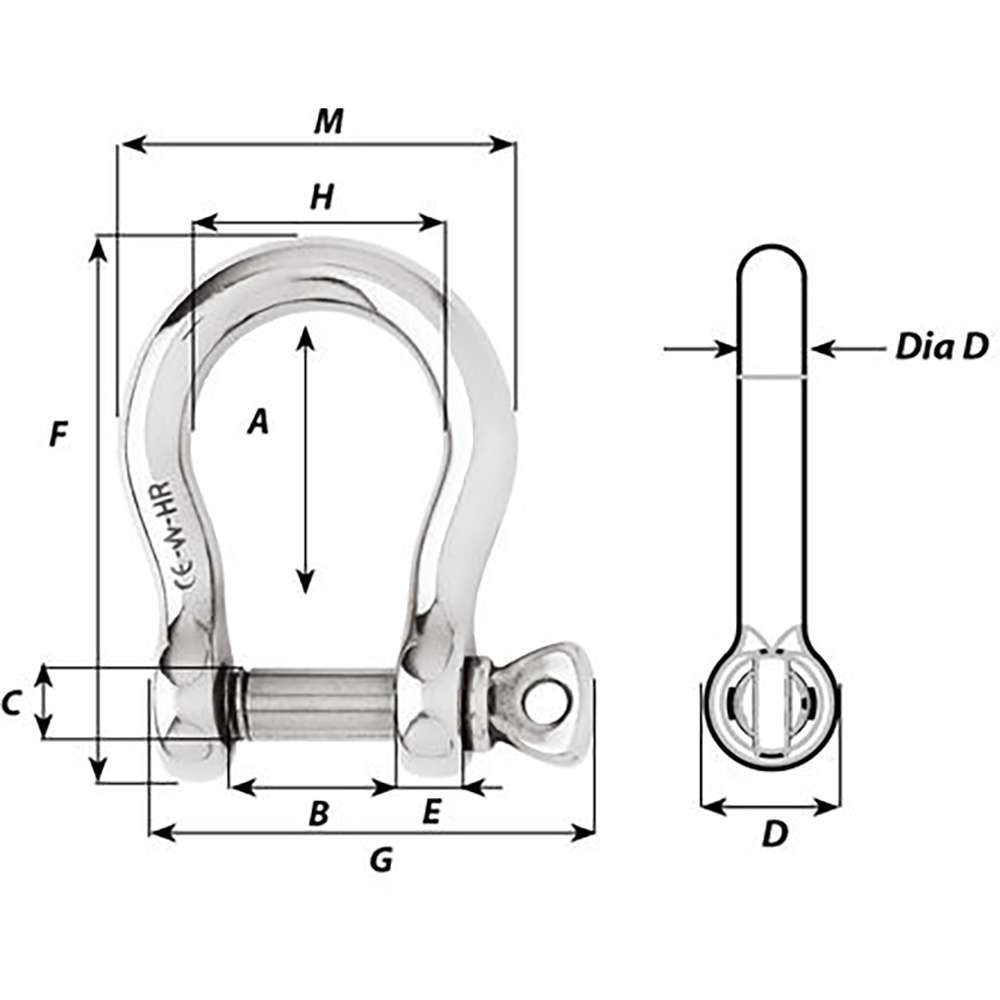

Dimensions:

• A: (inch) 2 3/4″ / (mm) 70
• B: (inch) 1 17/64″ / (mm) 32
• C: (inch) 5/8″ / (mm) 16
• D: (inch) 1 17/64″ / (mm) 32
• D diameter: (inch) 5/8″ / (mm) 16
• E: (inch) 19/32″ / (mm) 15
• M: (inch) 3 17/64″ / (mm) 83

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Manufacturer : Wichard Marine
Manufacturer Part No : 11247
UPC : 768536015102
