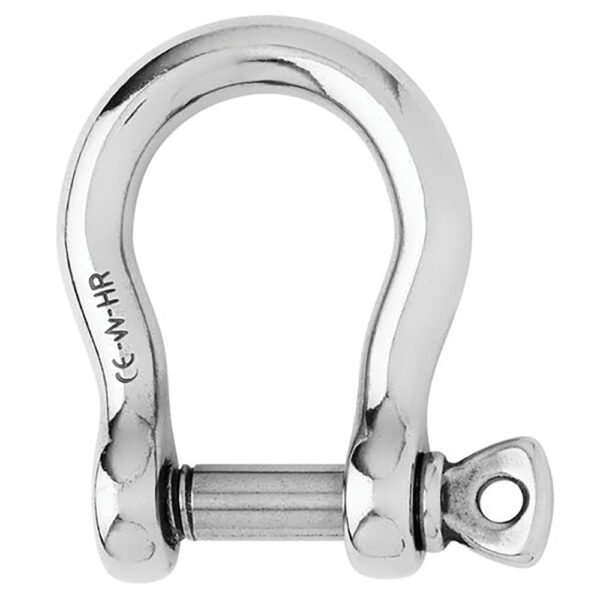

HR Bow Shackle – 8mm Pin Diameter

Features:

• Forged bow shackle in HR stainless steel grade (17,4 PH)
• Outstanding working and breaking load
• A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
• WLL: only for industrial applications (lifting i.e…)
• CE marking

Applications:

• Applications requesting high loads
• To be used when ample room is required
• Possibility to attach several lines or cables
• Do not use for mooring applications

Specifications:

• Materials: HR 17.4 PH stainless steel grade
• Working load: (lb) 3880 / (kg) 1760
• WLL: (lb) 1800 / (kg) 820
• Breaking load: (lb) 9030 / (kg) 4100
• Weight: (lb) 0.15 / (g) 68

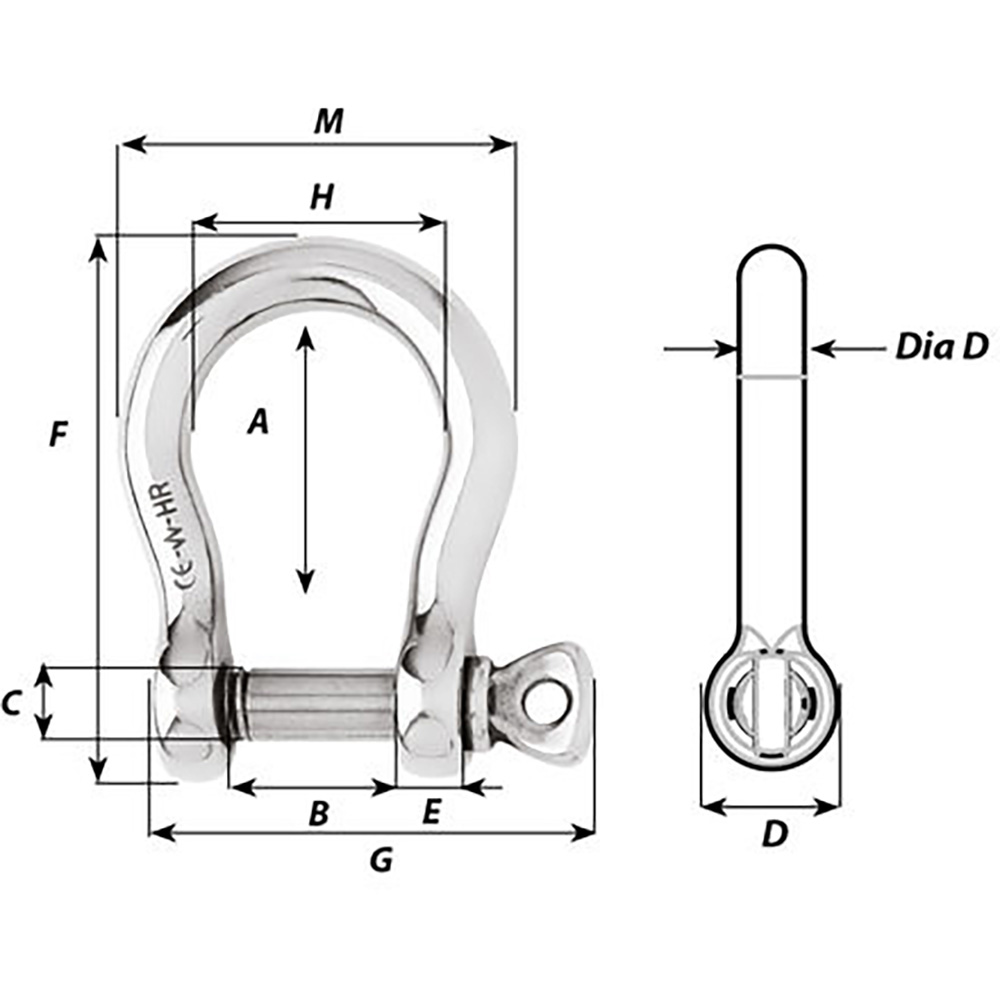

Dimensions:

• A: (inch) 1 29/64″ / (mm) 37
• B: (inch) 5/8″ / (mm) 16
• C: (inch) 5/16″ / (mm) 8
• D: (inch) 5/8″ / (mm) 16
• D diameter: (inch) 25/64″ / (mm) 10
• E: (inch) 9/32″ / (mm) 7
• M: (inch) 1 21/32″ / (mm) 42

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
• High Resistance (HR)

*Sold as an Individual

Manufacturer : Wichard Marine
Manufacturer Part No : 11244
