Wichard HR D Shackle – Diameter 15-64″

MPN: 11204
SKU: CW94414
Wichard HR D Shackle - Diameter 15-64"
Wichard HR D Shackle - Diameter 15-64" - Image 2

Wichard HR D Shackle – Diameter 15-64″

MPN: 11204

SKU: CW94414

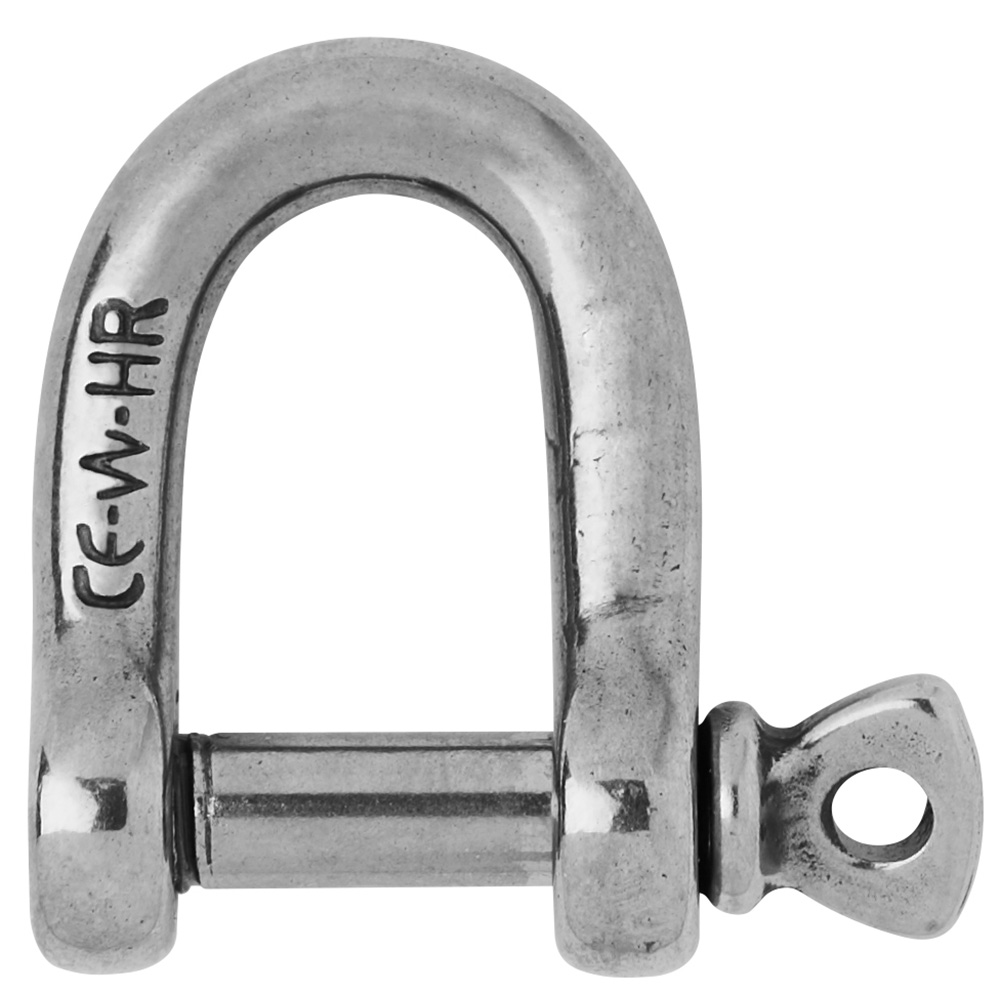

The HR D Shackle with a diameter of 15/64" is crafted from high-quality HR stainless steel grade (17,4 PH). It offers exceptional working and breaking loads, making it suitable for industrial applications. This shackle is significantly more resistant than those made from 316L stainless steel. It is marked with CE and a batch number for quality assurance.

Features
  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Categories: ,

4 in stock

$64.94

Free Shipping

OEM Parts

4 in stock

-

With 2-Day Shipping

Get By Sunday 05/04

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Wichard HR D Shackle – Diameter 15-64″

[mwai_chatbot id="default"]

About your product

Product Description

HR D Shackle – Diameter 15/64″

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications

  • Applications requesting high loads
  • Standard applications of the shackle
  • Attachment applications: blocks, head
  • Do not use it for mooring applications

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Working load (lb) 2290
  • WLL (lb) 1010
  • Breaking load (lb) 5070
  • Weight (lb) 0.053

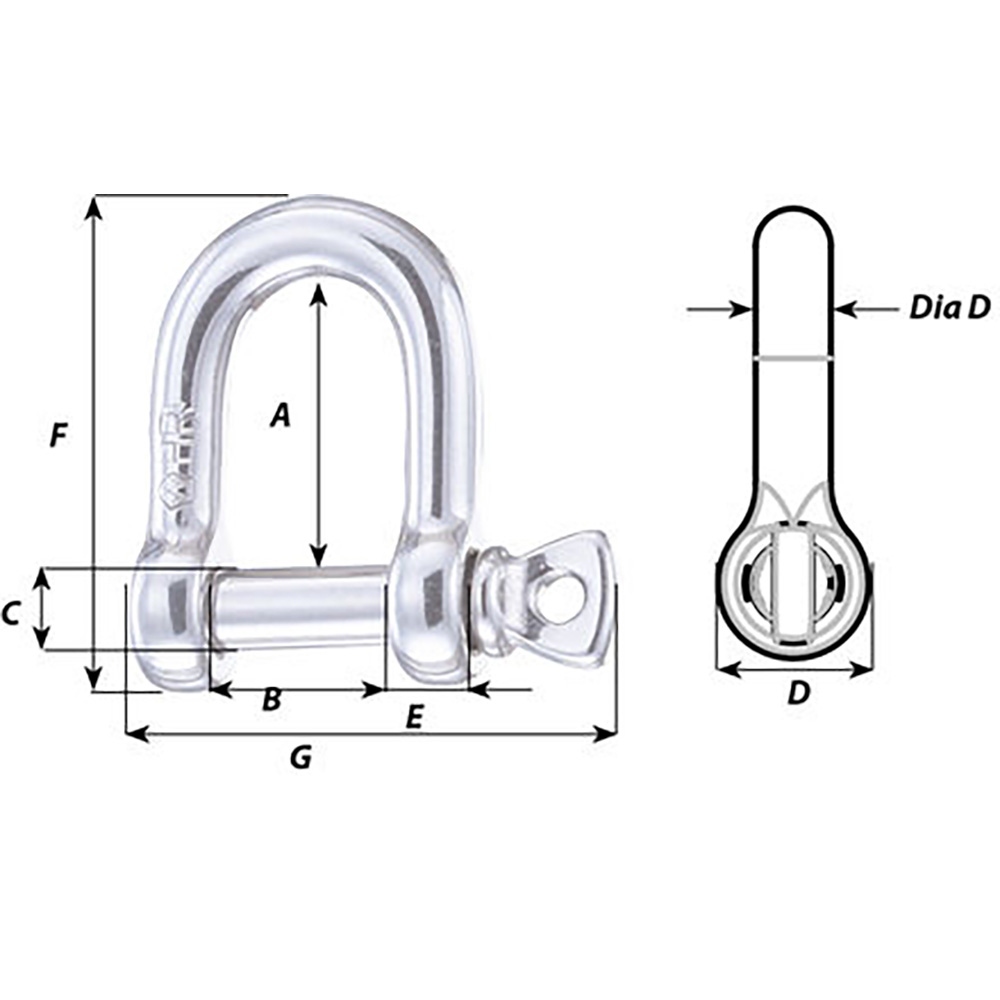

  • A (inch) 25/32″
  • B (inch) 15/32″
  • C (inch) 15/64″
  • D (inch) 5/8″
  • D diameter (inch) 15/64″
  • E (inch) 9/32″
  • F (inch) 1 13/16″
  • G (inch) 1 13/16″

Manufacturer : Wichard Marine
Manufacturer Part No : 11204
UPC : 768536112047

Specs & Manuals

Additional information

Weight 0.15 lbs
Dimensions 6.00 × 2.00 in
