Wichard Marine

Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length – 5-45-64″

MPN: 02777

SKU: CW97666

Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45-64"
Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45-64" - Image 2
Wichard Marine

Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length – 5-45-64″

MPN: 02777

SKU: CW97666

Experience the exceptional strength and versatility of the HR Quick Release Snap Shackle from Wichard Marine. Ideal for demanding sailing operations, this shackle ensures secure and efficient handling of multiple lines like spinnaker sheets. With its outstanding working and breaking loads, it's built to withstand the toughest marine conditions.

Features
  • HR forged 17.4 PH stainless steel
  • Quick release with lanyard pull
  • Large bail for multiple attachments
  • 6170 lbs working load capacity
  • Swivel design for free rotation

Categories: ,

6 in stock

$396.29

Wichard Marine

6 in stock

-

Free Shipping

OEM Parts

With 2-Day Shipping

Get By Sunday 12/28

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length – 5-45-64″

[mwai_chatbot id="default"]

About your product

Product Description

HR Quick Release Snap Shackle With Large Bail -145mm Length – 5-45/64″

Features:

  • HR forged (17.4 PH) quick-release snap shackle with large bail
  • The opening is made by pulling the lanyard
  • Perfect to attach several lines (spinnaker sheets…)
  • Outstanding working and breaking loads
  • Free rotation of the snap shackle thanks to the swivel

Applications:

  • For spinnaker operations
  • Perfect to attach several lines: spinnaker sheets…

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 6170 / (kg) 2800
  • Breaking load: (lb) 13880 / (kg) 6300
  • Weight: (lb) 0.873 / (g) 396

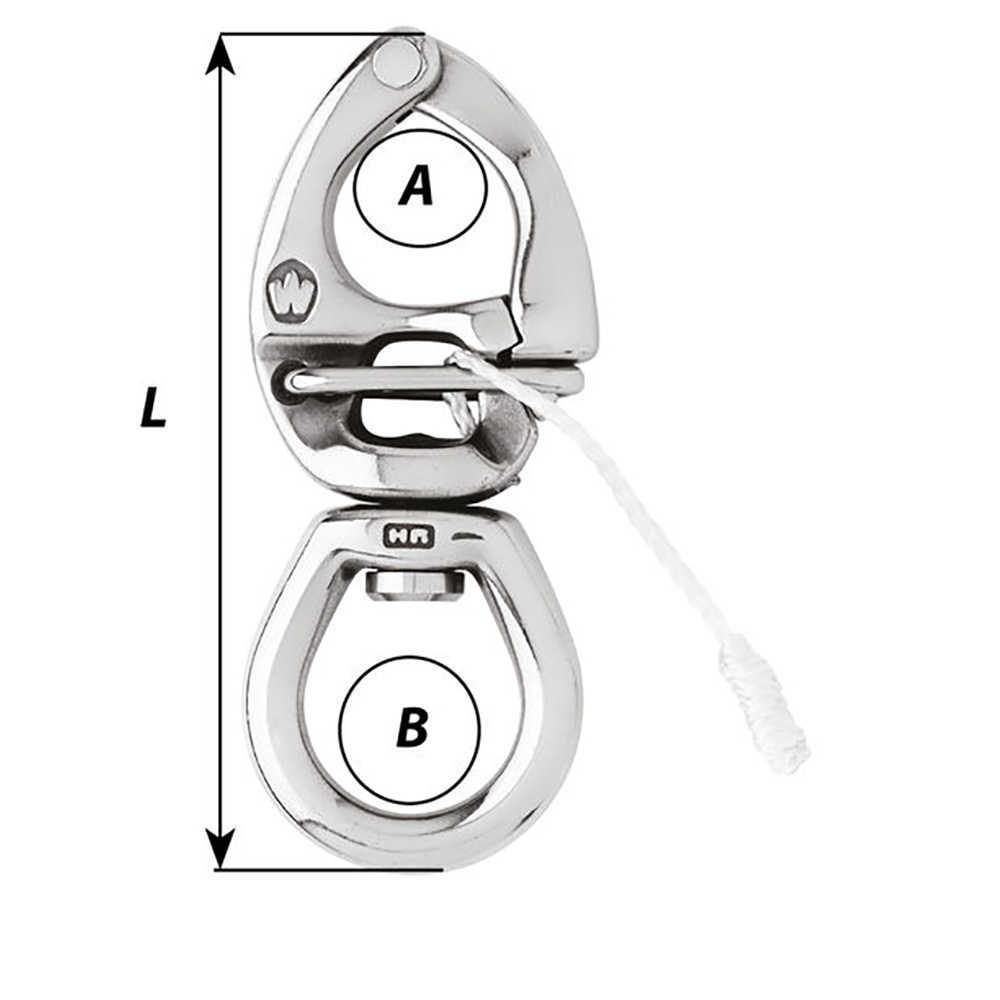

Dimensions:

  • A: (inch) 1 3/16″ / (mm) 30
  • B: (inch) 1 25/64″ / (mm) 35.5
  • Length: (inch) 5 45/64″ / (mm) 145

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Manufacturer : Wichard Marine
Manufacturer Part No : 02777

Specs & Manuals

Additional information

Weight 1.00 lbs
Brand

MPN
