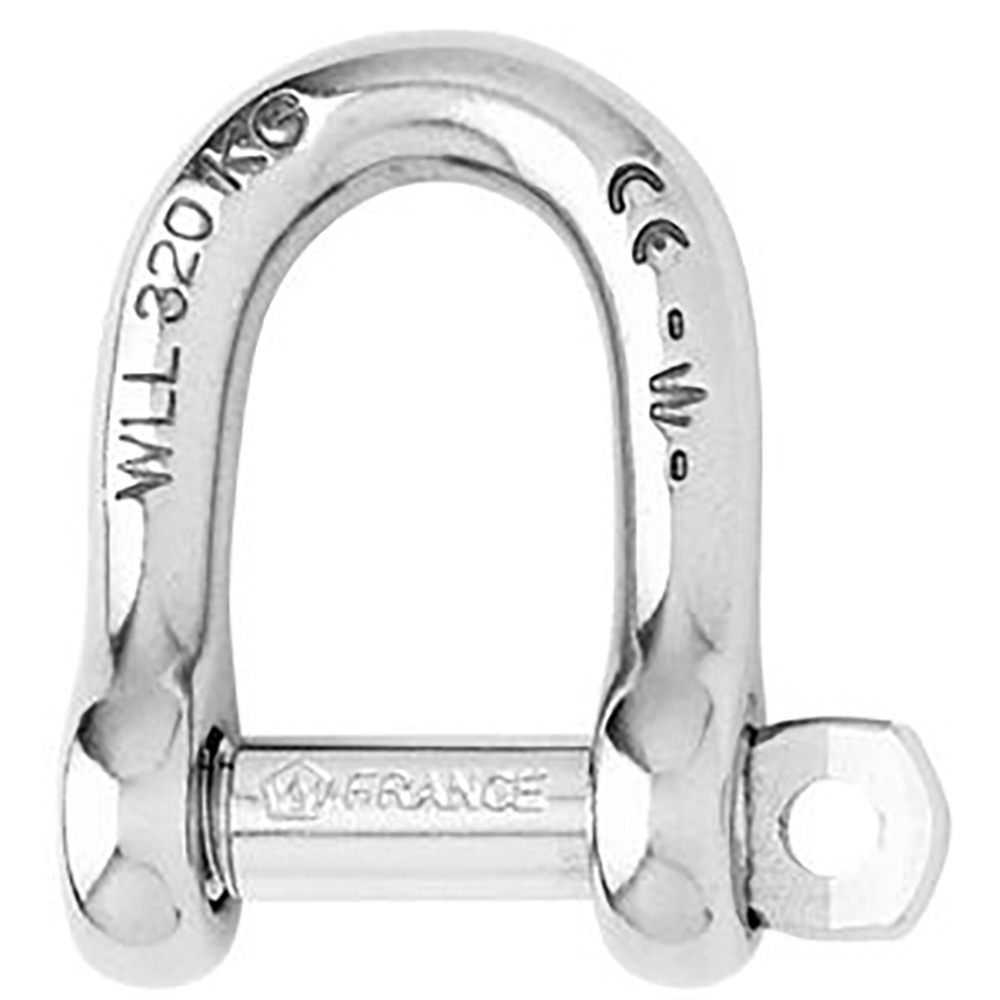

Not Self-Locking D Shackle – 14mm Diameter – 9/16″

Features:

• D shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking
• Part #01207 is not a self-locking D shackle

Applications:

• Standard applications of the shackle
• Attachment applications: blocks, head

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• WLL: (lb) 3520 / (kg) 1600
• Breaking load: (lb) 17630 / (kg) 8000
• Weight: (lb) 0.688 / (g) 312

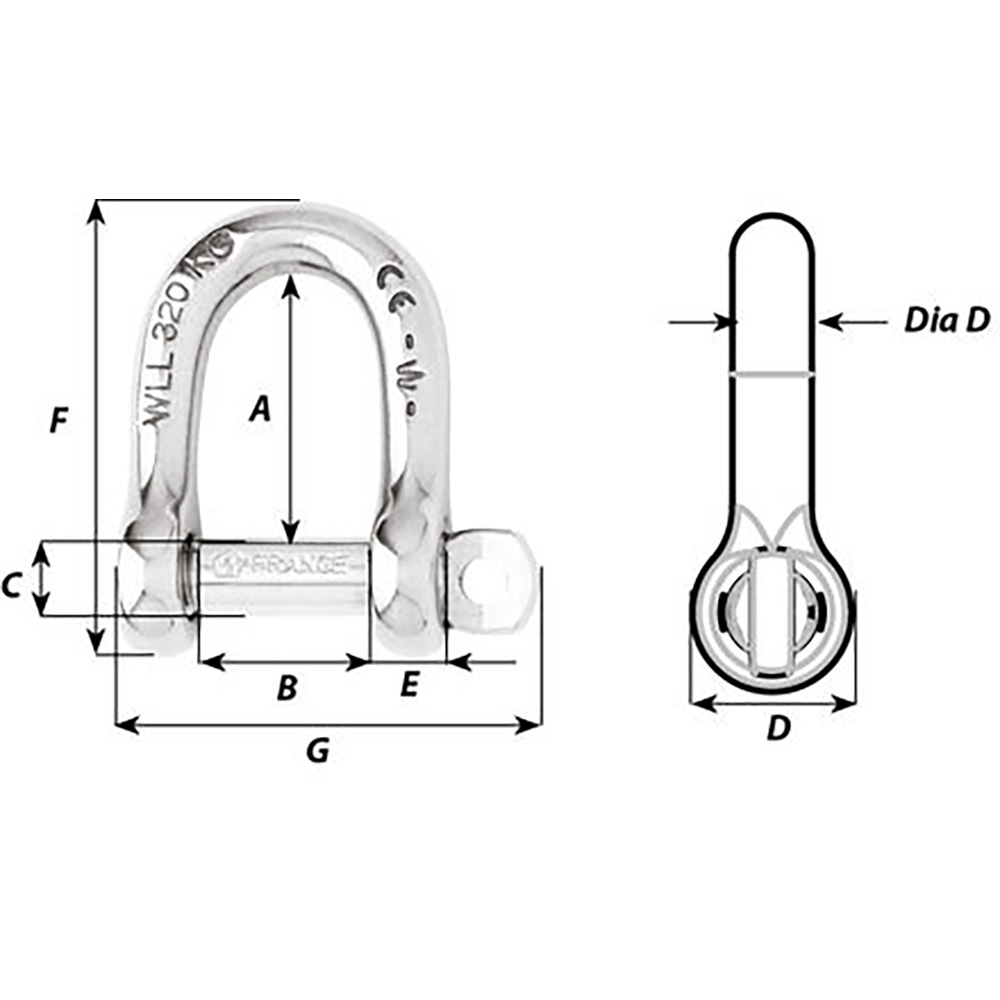

Dimensions:

• A: (inch) 1 27/32″ / (mm) 47
• B: (inch) 1 7/64″ / (mm) 28
• C: (inch) 35/64″ / (mm) 14
• D: (inch) 1 7/64″ / (mm) 28
• D diameter: (inch) 35/64″ / (mm) 14
• E: (inch) 33/64″ / (mm) 13
• F: (inch) 3 15/64″ / (mm) 82
• G: (inch) 3 5/64″ / (mm) 78

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

Manufacturer : Wichard Marine
Manufacturer Part No : 01207
