Wichard Snatch Block w-Snap Shackle – Max Rope Size 12mm (15-32″)

MPN: 34500

SKU: CW99748

Wichard Snatch Block w-Snap Shackle – Max Rope Size 12mm (15-32″)

MPN: 34500

SKU: CW99748

The Snatch Block with Snap Shackle is designed for maximum efficiency and durability, accommodating ropes up to 12mm. It features a free-rotating snap shackle, a strong closing system, and easy opening. The elastomer molded cheeks provide shock and scratch resistance. Ideal for changing sheets and spinnaker sheet deflector blocks.

Features:
  • Free rotation thanks to snap shackle
  • Very strong closing system
  • Easy opening by simply pulling on the plunger pin
  • Shock and scratch-resistant thanks to the elastomer molded cheeks
  • Accommodates rope size up to 12mm

Categories: ,

2 in stock

$294.29

2 in stock

-

Free Shipping

OEM Parts

With 2-Day Shipping

Get By Saturday 12/27

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Wichard Snatch Block w-Snap Shackle – Max Rope Size 12mm (15-32″)

[mwai_chatbot id="default"]

About your product

Product Description

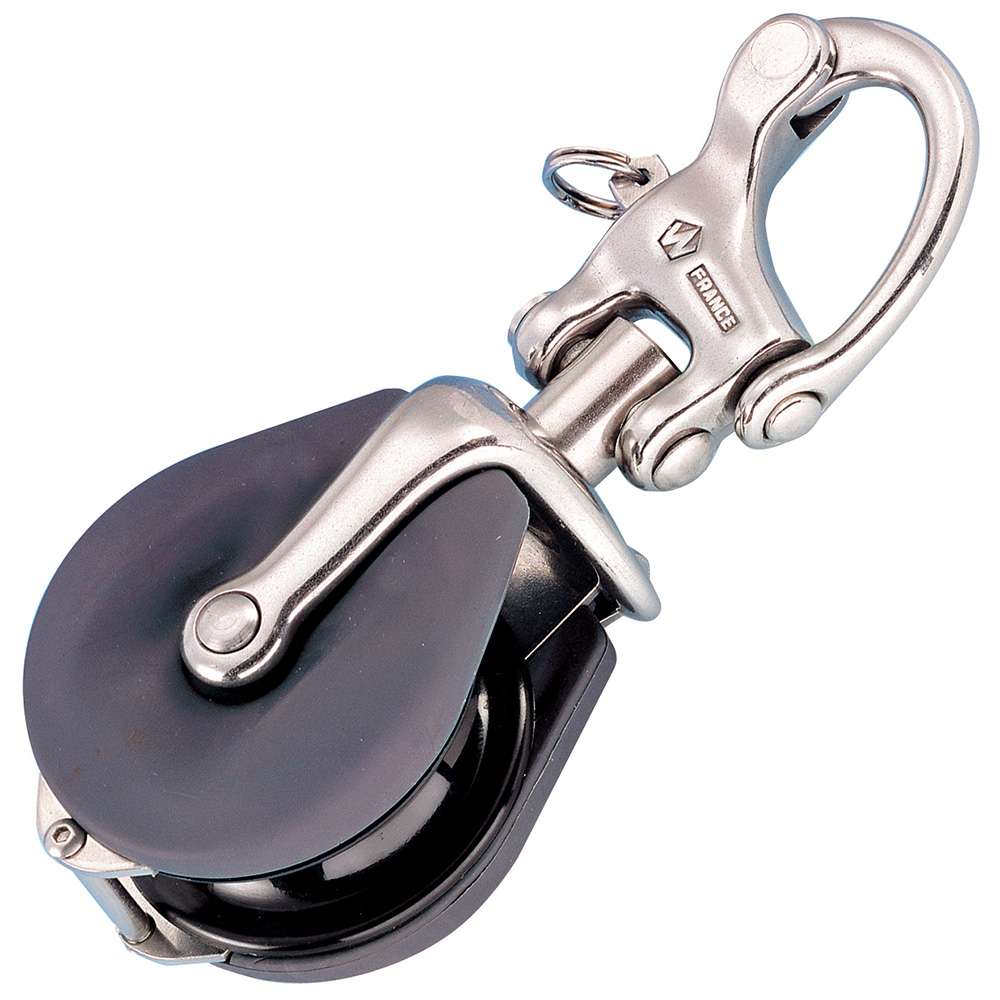

Snatch Block with Snap Shackle – Max Rope Size 12mm (15/32″)

Features:

  • Free rotation thanks to snap shackle
  • Very strong closing system
  • Easy opening by simply pulling on the plunger pin
  • Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

  • Changing sheets
  • Spinnaker sheet deflector blocks

Materials:

  • HR 17.4 PH forged stainless steel arm
  • Elastomer molded cheeks
  • Composite sheave

Specifications:

  • Rope size: (inch) 15/32″ / (mm) 12
  • Length: (inch) 5 45/64″ / (mm) 145
  • Width: (inch) 2 21/64″ / (mm) 59
  • Thickness: (inch) 1 11/16″ / (mm) 43
  • Working Load: (lb) 1580 / (kg) 720
  • Breaking Load: (lb) 2860 / (kg) 1300
  • Weight: (lb) 0.56 / (g) 254

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Manufacturer : Wichard Marine
Manufacturer Part No : 34500
