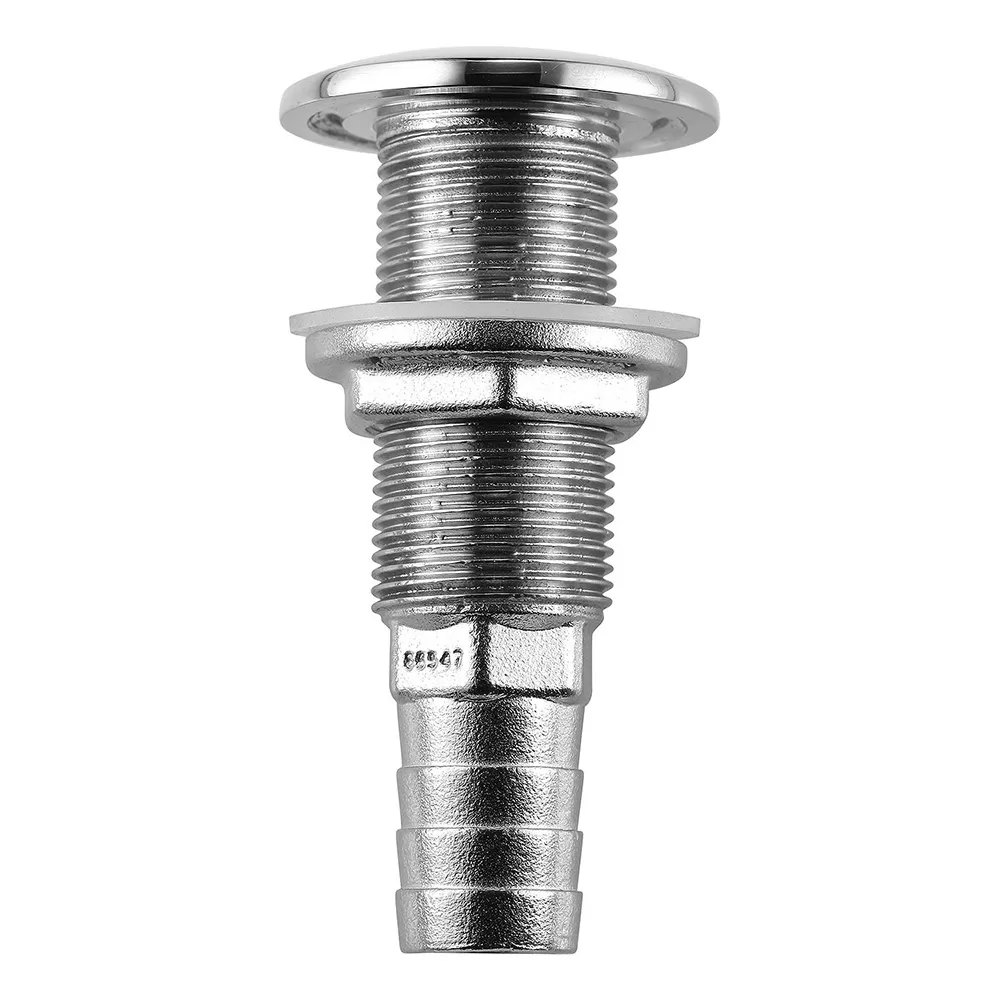

Stainless Steel Thru-Hull Standard Straight Barbed – 5/8″ Inner Diameter

Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?

Rugged Stainless Construction:

• Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
• All visible areas are polished to a mirror finish, then passivate each part for additional protection
• Thick steel sidewalls withstand continual stress and hose flexing

Faster, Simpler Installation:

• Each Thru-Hull is available with a new silicone gasket
• A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
• All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
• The barbed tail ends provide plenty of room to hold multiple clamps

Stainless Steel Straight Thru-Hulls, Barbed

• Standard Thread model has a full-length thread for thick hulls and easy tightening

Specifications:

• Hose size: (inch) 5/8″ inner diameter
• Flange Diameter: (inch) 1-7/8″
• Thread O.D. (outside diameter): (inch) 1″
• Thread Length: (inch) 2″
• Barb Length: (inch) 1-1/4″
• Total Length: (inch) 3-3/4″
• Install Hole Saw Size: (inch) 1-1/8″
• Thread NPSM: (inch) 3/4″
• Max Hull Thickness: (inch) 1-1/16″

*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only

Manufacturer : Attwood Marine
Manufacturer Part No : 66546-3
UPC : 022697665461
