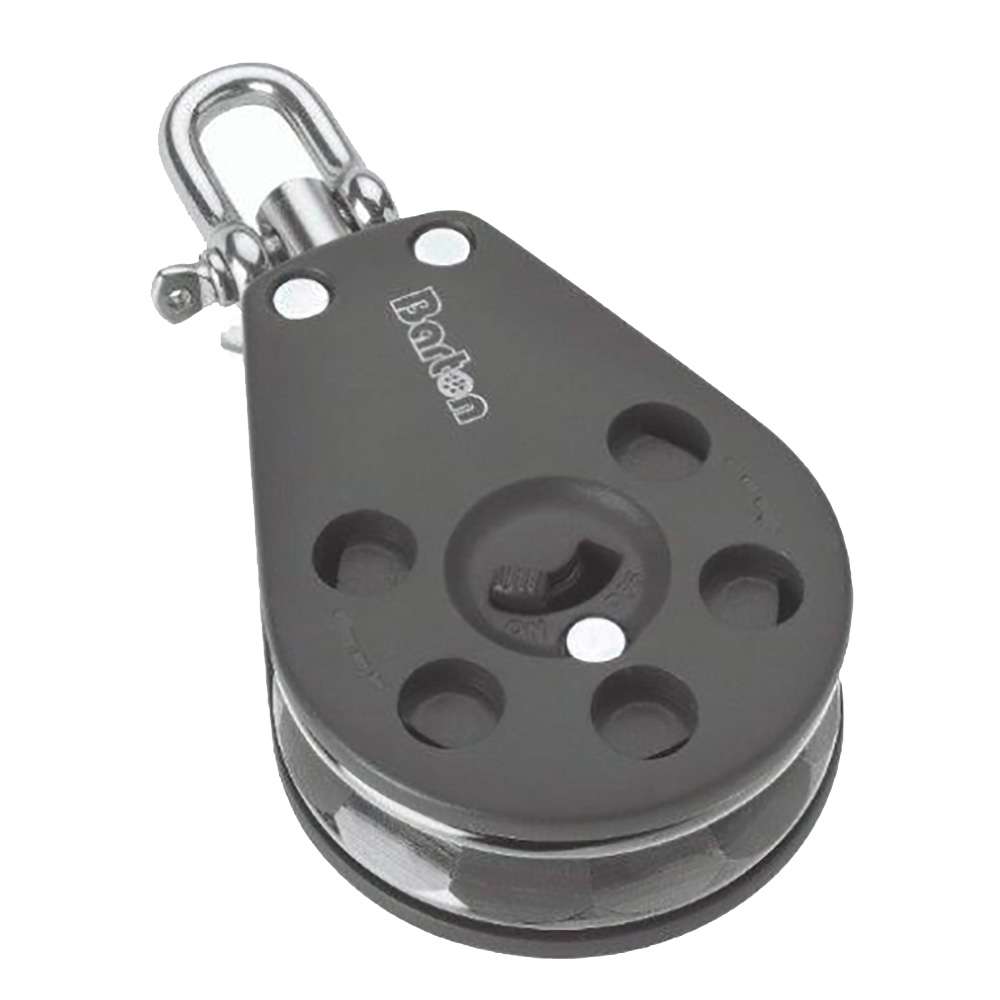

Ratchet Block – 55mm

The Barton Ratchet Block is designed to be used on mainsheet systems and spinnaker sheets on dinghies and keelboats and for small yachts up to 30 feet.

Combining high-performance engineering and contemporary design, the 2-3/16″ (55 mm) ratchet block is the first in a planned range of sizes, it also offers a stainless steel lever that locks the swivel head if desired.

The new Ratchet Block allows sailors to easily handhold loaded lines and offer a balance between holding power and controlled easing.

Designed for low friction and longevity in harsh marine environments, the Ratchet Block body is manufactured from a composite of high-density nylon and glass fiber reinforced polymer with a high level of UV protection. Internal components are of marine grade 316 stainless steel and the 12 faced aluminum sheave is anodized in gunmetal silver

Technical Specifications:

• Safe Working Load – 661 lb (300 kg)
• Breaking Load – 2,646 lb (1,200 kg)
• Maximum Rope Diameter – 3/8″ (10 mm)
• Weight – 4.8 oz (135 grams)

*Sold as an Individual

Manufacturer : Barton Marine
Manufacturer Part No : 90500
UPC : 5035088085286
