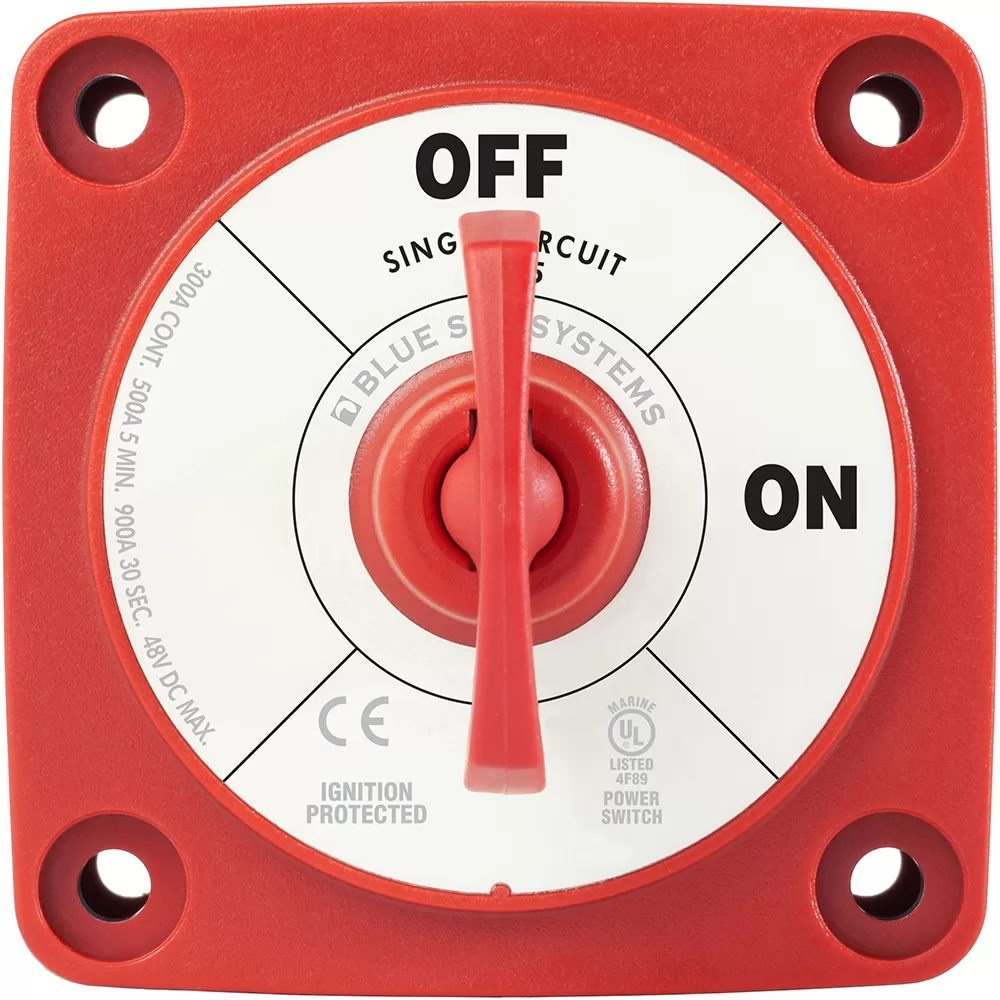

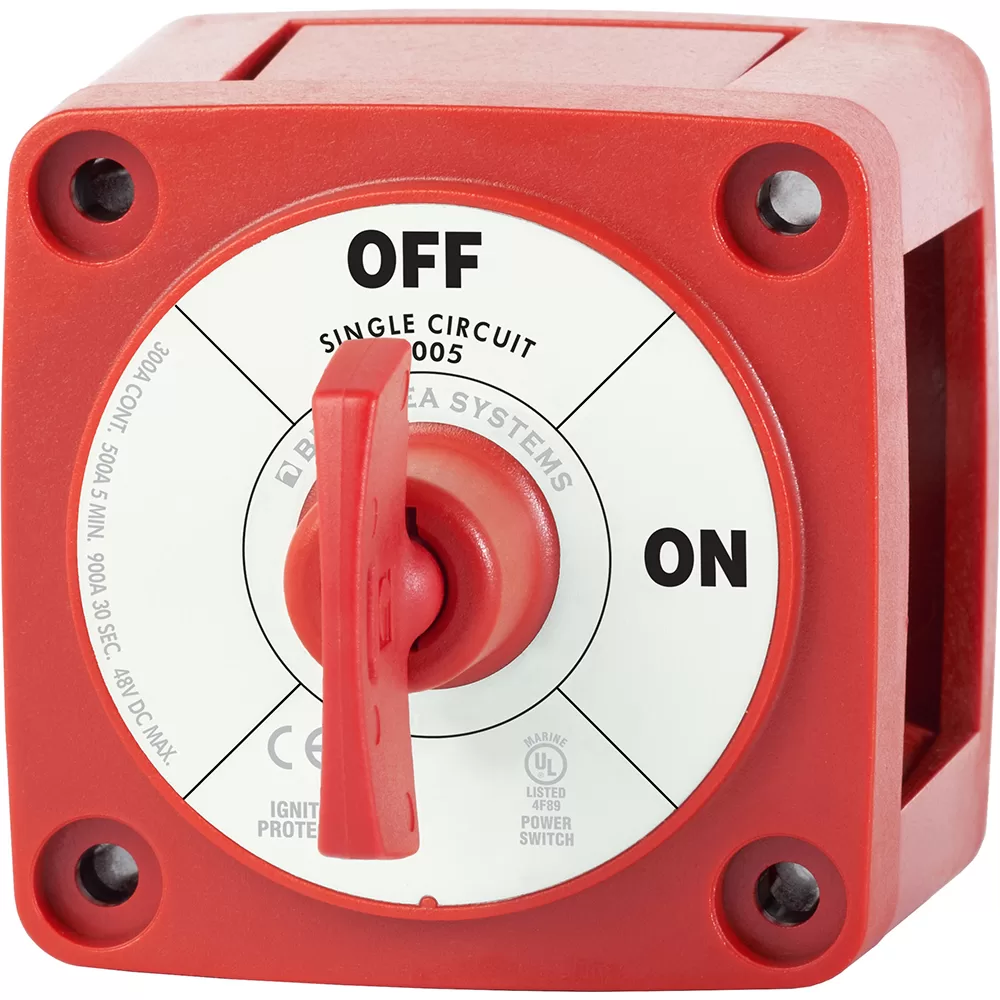

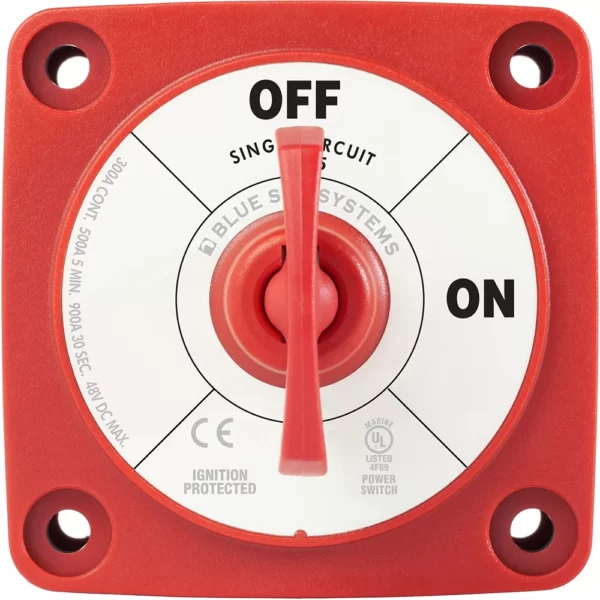

6005
m-Series (Mini) Battery Switch

Single Circuit ON/OFF

• Switches a single battery to a single load group

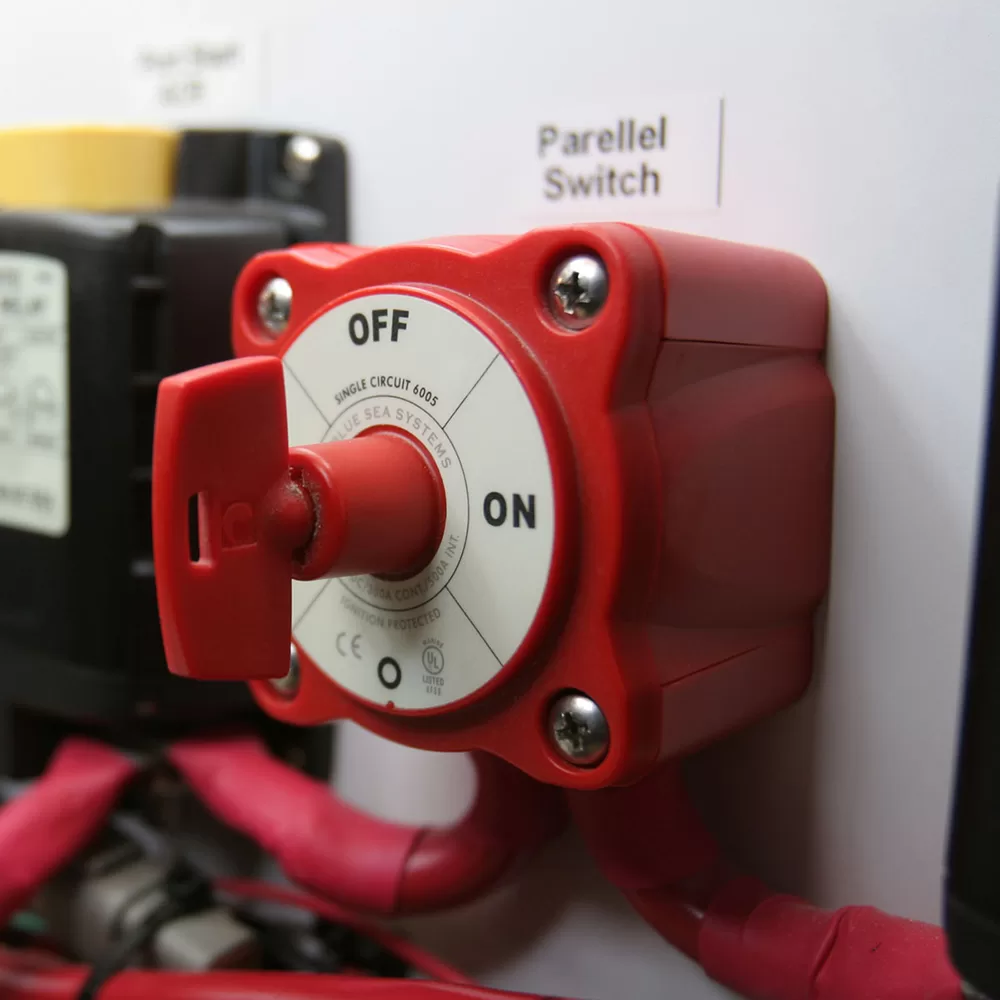

• Multiple switches can be used to manage several isolated circuits including cross connecting for emergency paralleling

Features:

• Ignition protected – Safe for installation aboard gasoline powered boats

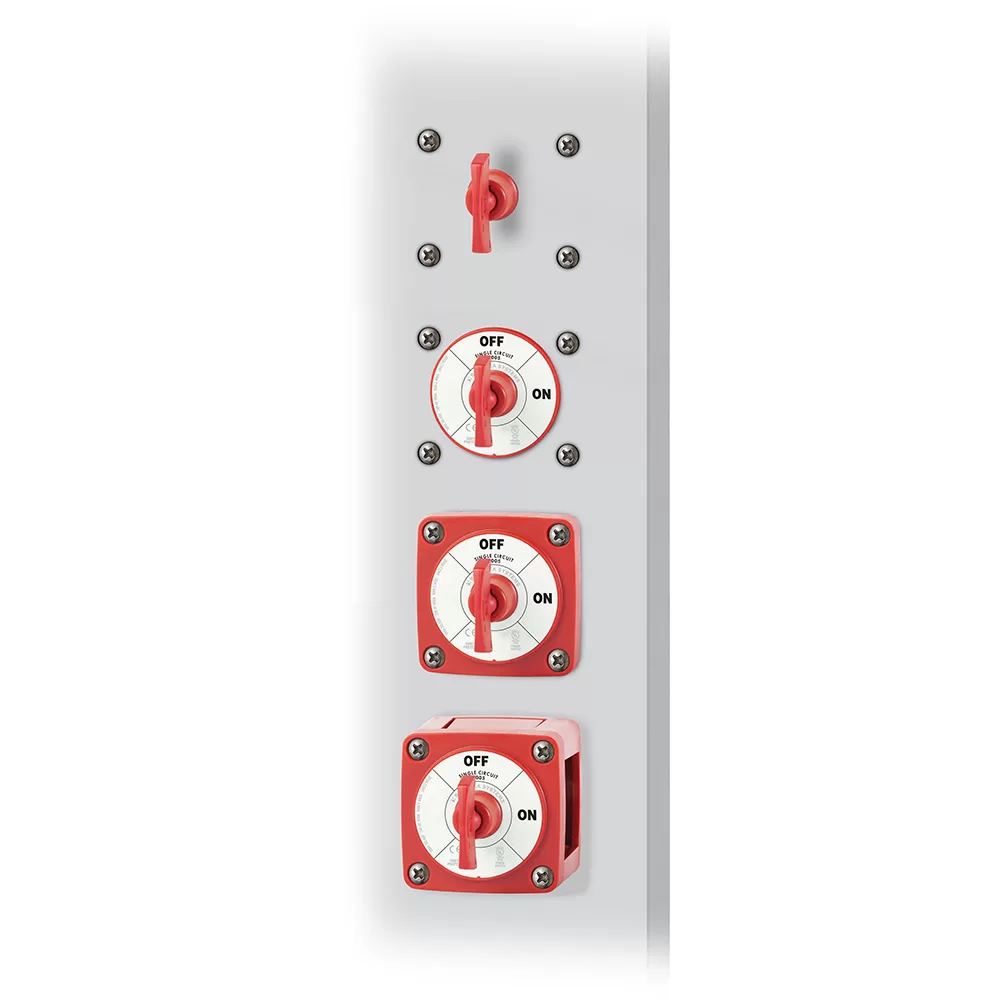

• Case design allows surface, front panel, or rear panel mounting
• Isolating cover with snap-on sections protects rear contacts

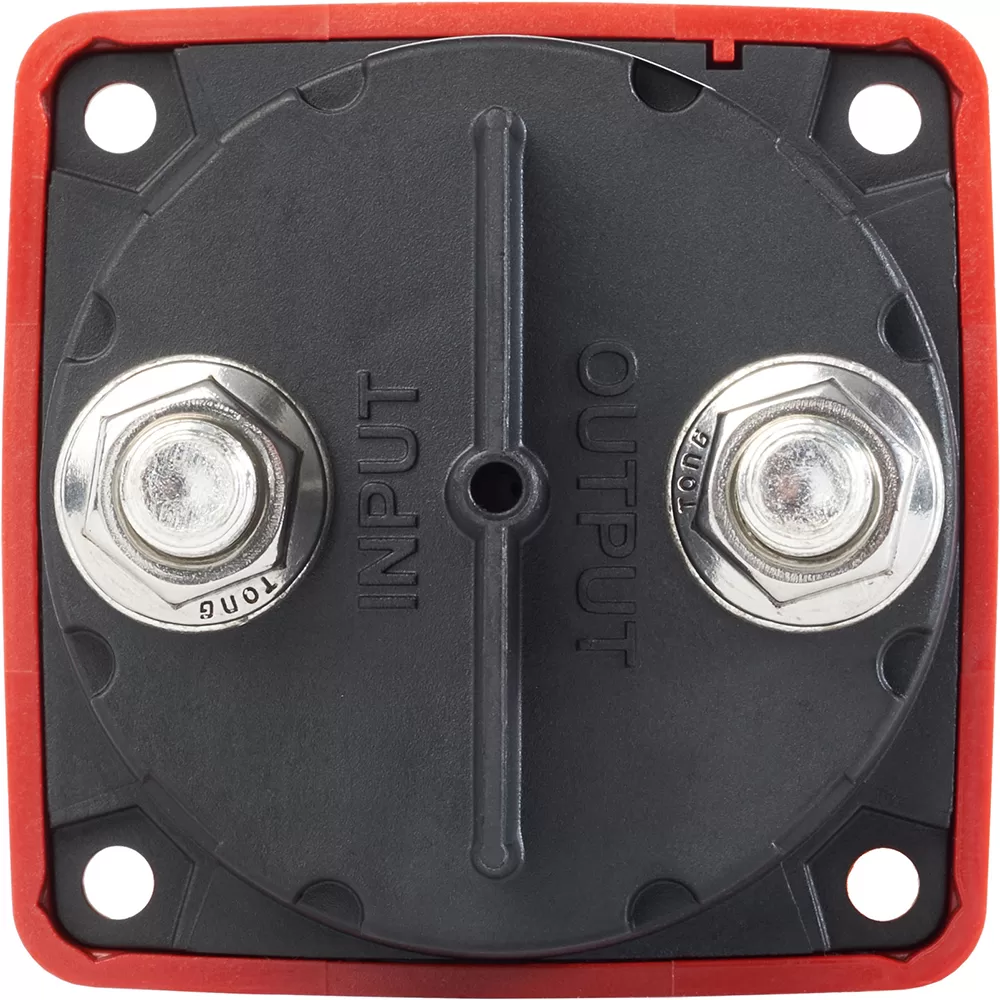

• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
• 7/8" (22.22mm) stud length to accept multiple cable terminals
• Ideal for marine or RV applications
• All non-corrosive marine grade metals
• Molded in durable reinforced polycarbonate
• Tactile textures indicate knob position by feel only
• Label with international ON/OFF legends
• Removable key or knob remains positively retained
• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 6005
UPC : 632085060053
