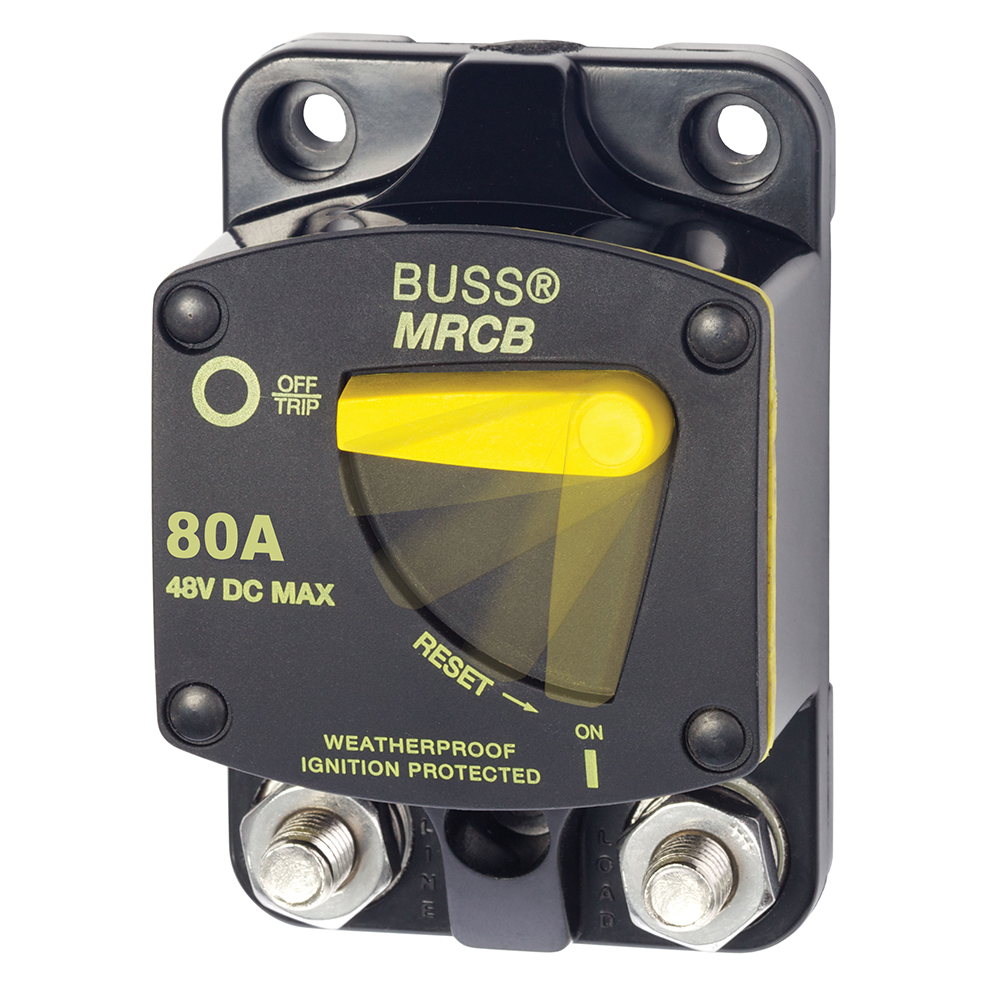

Blue Sea 7142 187 – Series Thermal Circuit Breaker – 80Amp

MPN: 7142

SKU: CW20562

Blue Sea 7142 187 - Series Thermal Circuit Breaker - 80Amp
Blue Sea Systems

Blue Sea 7142 187 – Series Thermal Circuit Breaker – 80Amp

MPN: 7142

SKU: CW20562

The 187 - Series Thermal Circuit Breakers are designed for efficient circuit protection and switching in a compact surface mount format. With a robust construction and waterproof features, they ensure safety and reliability, especially in marine applications. The breaker includes a clear operation lever and a "Trip Free" design. It meets stringent ignition protection standards for gasoline-powered boats.

Features
  • Combines switching and circuit protection into a single device
  • All components meet SAE J1171 external ignition protection requirements
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof

Categories: ,

16 in stock

$95.29

Blue Sea Systems

16 in stock

-

Free Shipping

OEM Parts

With 2-Day Shipping

Get By Tuesday 12/23

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Blue Sea 7142 187 – Series Thermal Circuit Breaker – 80Amp

[mwai_chatbot id="default"]

About your product

Product Description

187 – Series Thermal Circuit Breakers – Surface Mount

80 Amp Circuit Breaker

PN:  7142

Features:

  • Combines switching and circuit protection into a single device
  • All components meet SAE J1171 external ignition protection requirements
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected – safe for installation aboard gasoline powered boats

Specifications
Circuit Breaker Class: Type III – Switchable / Manual Reset – Trip Free
Type: Thermally Responsive Bi-Metal Blade
Case Material: Thermoset Polyester
Voltage Rating: 48 Volts DC Maximum
Interrupt Rating: 5,000 Amperes @12 Volts DC
  3,000 Amperes @24 Volts DC
  1,500 Amperes @42 Volts DC
Operating Temperature Range: -25C° to +82C°

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 7142
UPC : 632085171421

Specs & Manuals

Additional information

Weight 0.70 lbs
Dimensions 5.00 × 3.00 × 2.00 in
