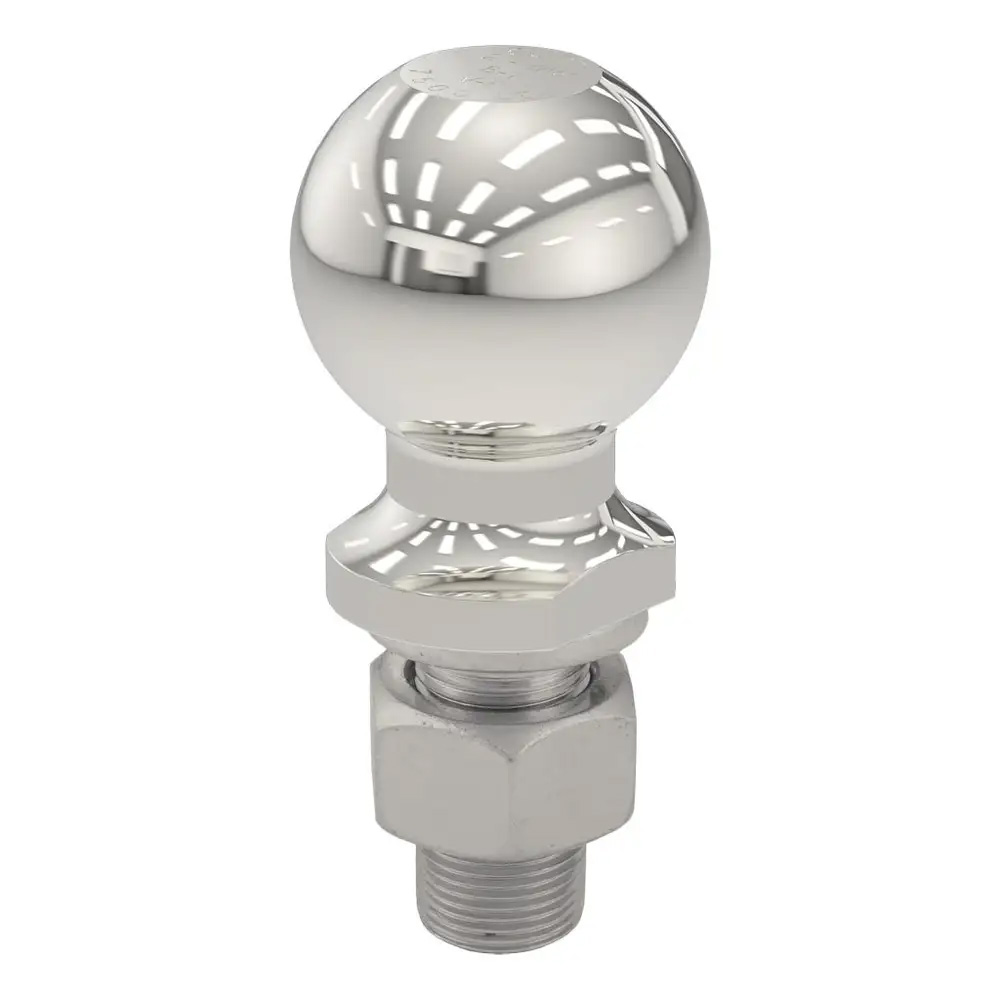

2-5/16″ Trailer Ball – 1″ x 2-1/8″ Shank – 7,500 lbs – Stainless Steel

The CURT 2-5/16″ trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they’re just spinning their wheels. CURT 2-5/16″ trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything a class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16″ trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts, and more. (NOTE: Never exceed the lowest weight capacity of any towing component, i.e., the vehicle, hitch, trailer, etc.).

This 2-5/16″ trailer ball features a ball capacity of 7,500 lbs. It features a 1″ shank diameter, a 2-1/8″ shank length, a 0″ rise, and a stainless steel finish to protect against the elements. To give users the power to tow with confidence, CURT 2-5/16″ trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.

Features:

• Fits 2-5/16″ couplers and accepts up to 7,500 lbs. GTW
• Stainless steel construction for excellent rust resistance
• Zinc-plated hex nut and helical lock washer for secure mounting
• Features fine threads for superior holding strength
• Tested for safety to meet U.S. VESC V-5 specifications

Specifications:

• Ball Capacity: 7,500 lbs
• Ball Diameter: 2-5/16 in.
• Color: Stainless
• Finish: Polished Stainless
• Hub Warehouse: D25
• Material: Forged Steel
• Part Type: 2 5/16 in. Trailer Ball
• Shank Diameter: 1 in.
• Shank Length: 2 1/8 in.
• Shank Rise: 0 in.
• Torque: 250 ft. lb.
• Warranty: Limited lifetime warranty (one-year finish, one-year parts)

*The mounting platform must be at least 3/8″ thick, and the hole size must not be more than 1/16″ larger in diameter than the threaded shank

Manufacturer : CURT
Manufacturer Part No : 40084
UPC : 612314000845
