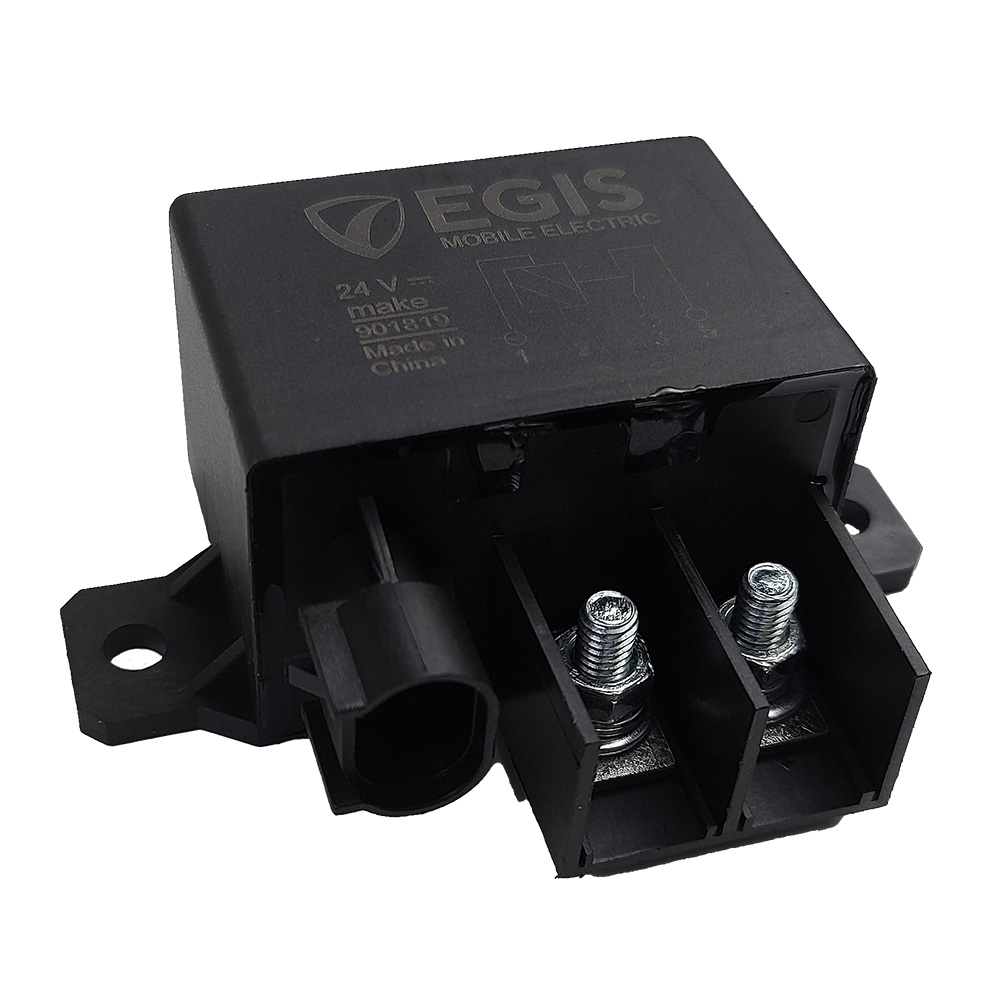

Relay 24V, 150A with Resistor

This is a 24V automotive-rated relay/industry standard drop-in replacement for Tyco/Amp. The relay switch carries high-amp electrical currents in high ambient temperatures/wet environments.

Applications:

• Resistor circuit protection ensures flyback voltage does not affect control signal circuitry. A great option for sensitive electrical systems.
• High intermittent amp rating of 300 amps for up to 3 seconds, making this relay great for temporary high-equipment start-up amp draw applications.
• Automotive-grade connectors ensure moisture and dust intrusion are kept from the control circuitry.
• The high-temperature rating of 125C/257F makes this a great relay for high-temperature installation environments like engine bays and other low-ventilation spaces.

Features:

• Bullet-proof Construction – Robust automotive grade relay with IP54 ingress protection and reinforced mounting tabs ensure secure mounting
• Dual mounting holes on either side for easy mounting with ¼-20”/M6 1.25 bolts or screws up to #14 screw
• Incorporate the highest quality materials for superior performance and have a high 100,000 electrical switching cycle capacity
• Enhanced vibration and shock protection ensures enhanced reliability, a long service life, and the operational readiness of the electrical system

Specifications:

• Intermittent Current @ 3 SEC (Amps): 300
• Ambient Temp. Rating (Low/High) (Celsius): -40/125 C
• Max Continuous Current (Amps): 180 @23 degrees C
• Electrical Endurance Rating (Cycles): 1,000,000
• On State Current Draw @ 24 VDC: 163 mA
• Operating Voltage Range: 17.6-32VDC

Focal Features:

Sealed Housing

IP67-rated housing keeps out moisture and ensures long-term reliability.

Reinforced Mounting

Robust mounting tabs with strengthening gussets ensure the relay stays mounted securely, even through vibration, heat, and wire tension.

Terminal Protection

Shielded dual M6x1.0 terminals ensure protection from accidental contact shorts.

Delphi Metripak Connector

Automotive-grade sealed control wire connectors keep moisture out of the control circuit.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Egis Mobile Electric
Manufacturer Part No : 901819
