Reactor™ 40 Hydraulic Autopilot with GHC™ 50 Autopilot Instrument

** Not designed to be used with Garmin Smartpump**

Every Captain Needs a Co-Pilot.  Designed for powerboats, this Reactor 40 hydraulic autopilot with GHC™ 50 display gives you the extra hand you need, so you can explore paradise worry-free.

Features:

• This Reactor 40 corepack is the perfect companion for your hydraulically steered system.
• With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation.  It even reduces power consumption, minimizes heading error, and more.
• Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
• You just want to get on the water, so we made calibration fast and easy.  That’s the power of simplicity.
• Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix® marine smartwatches, and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument.)
• Gain more freedom when maneuvering your boat.  This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.
• Want more?  The optional GHC™ 50 autopilot instrument enhances your autopilot experience.
• When connected to your compatible Garmin chartplotter, all Reactor 40 corepacks offer powerboat and sailing features, including heading hold and step turns — plus wind hold and tack/jibe when paired with a wind sensor (sold separately.)

Technical Specifications – Reactor 40 :

• Unit dimensions (W x H x D) – 4.3″ x 4.4″ x 1.9″ (10.9 x 11.2 x 4.8 cm)
• Display resolution (W x H) – 320 x 240 pixels
• Display Type – QVGA color LCD display
• NMEA output – NMEA 2000
• Supply voltage – 10 to 20V
• Operating temperature – -15° C to 70 C° (5° F to 158° F)

Technical Specifications – GHC™ 50:

• Dimensions (H x W x D) – 5.5” x 4.1” x 2.0” (14.0 x 10.5 x 5.1 cm)
• Display Type – 800 x 480 WVGA
• Display Size – 5″ (12.7 cm)
• Touch Display – Yes
• Knob Control – With GRID 10/20
• Remote Control via ANT+® Connectivity – Yes
• Wi-Fi Connectivity – Yes
• NMEA 2000 Networking – Yes
• Ethernet – Yes

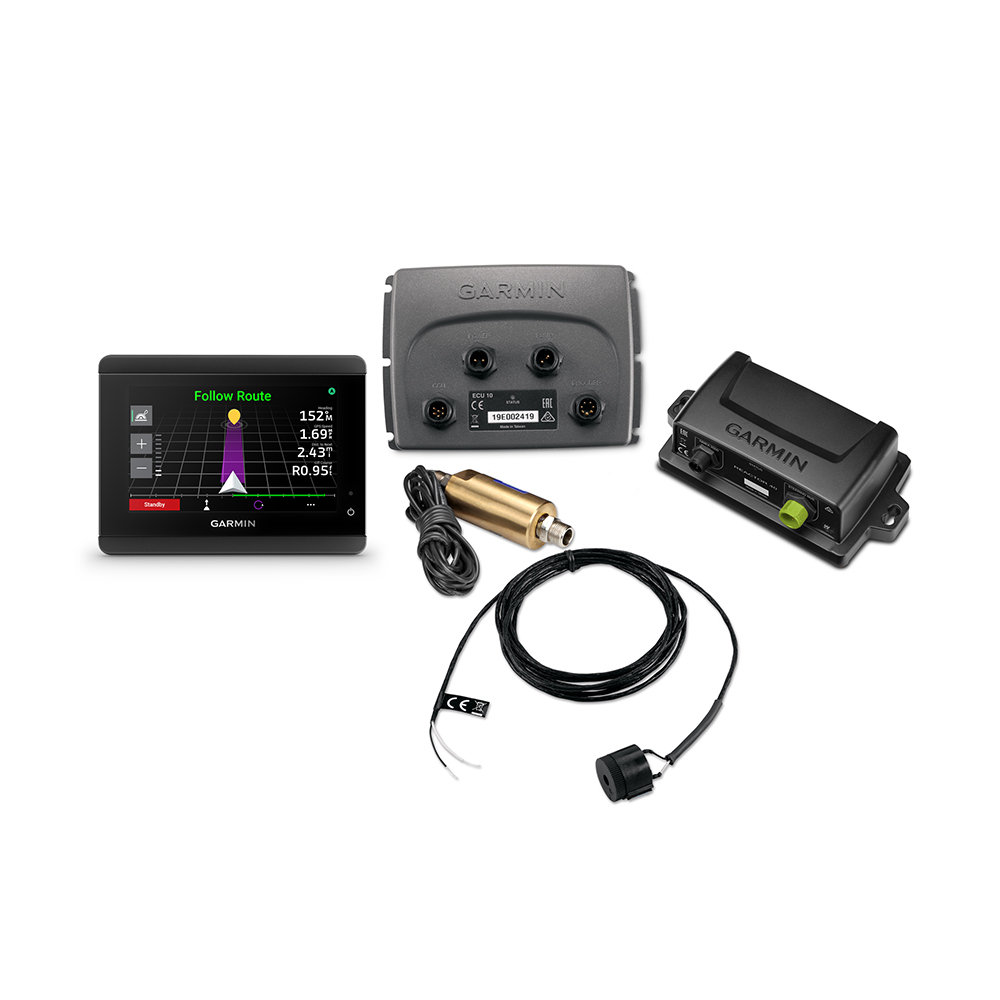

What’s in the Box?

• Reactor 40 CCU (Course Computer Unit)
• GHC™ 50 marine autopilot touchscreen display
• ECU (Electronic Control Unit)
• ECU power cable
• Interconnect cable
• Shadow Drive
• Buzzer
• NMEA 2000® drop cables (2 meters)
• NMEA 2000 power cable
• NMEA 2000 T-connectors
• Male and female terminators
• Documentation

*Sold as an Individual

Manufacturer : Garmin
Manufacturer Part No : 010-02794-00
UPC : 753759302849
