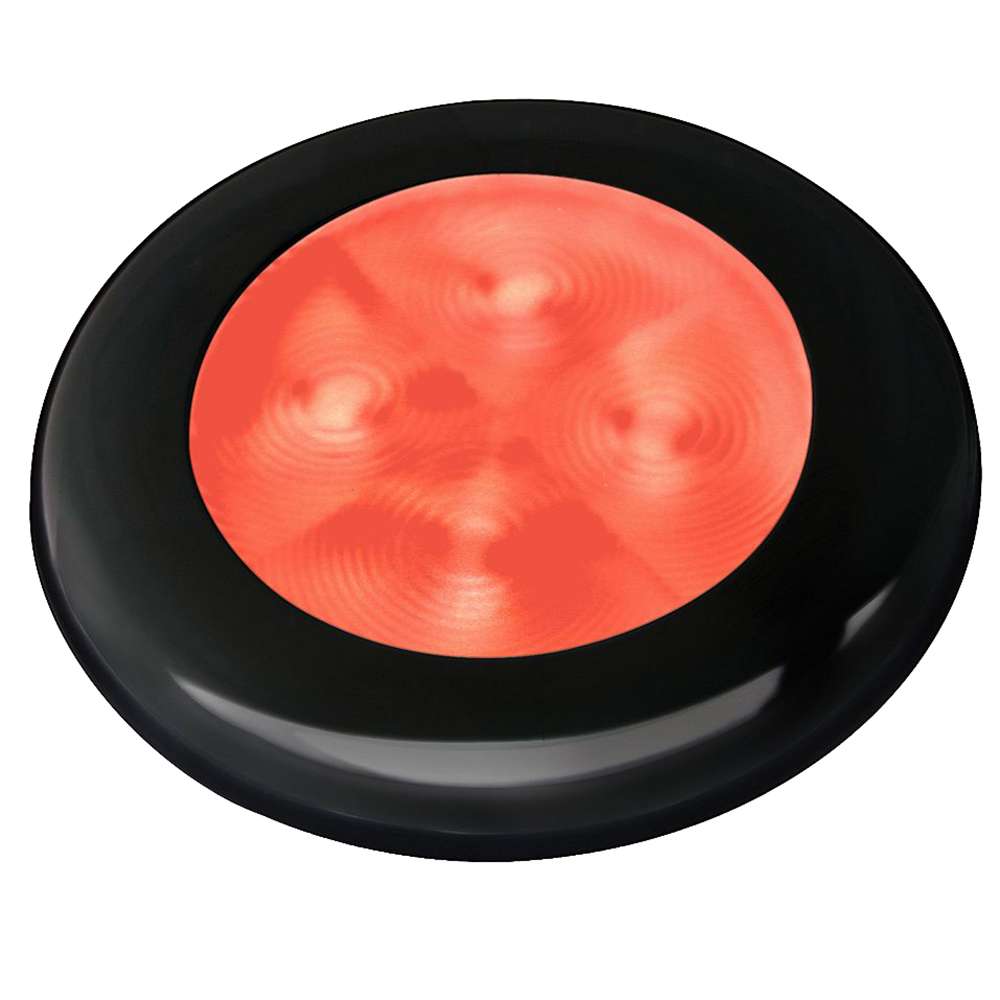

Slim Line LED ‘Enhanced Brightness’ Round Courtesy Lamp – Red LED – Black Plastic Bezel – 12V

Attractive, energy efficient lighting for interior and exterior use.

Hella Marine round LED courtesy lamps can be installed almost anywhere on board.

Over 3 x brighter than regular Soft Light White and Warm White LED courtesy lamps.

Advanced lens technology provides a cool and even spread of soft light without glare or eye strain. Hella Marine LED courtesy lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw of less than 0.5W (less than 0.04A @ 12V). This provides safer installation into light weight materials where the heat of incandescent lamps may cause damage to the surrounding structure.

Each lamp is completely sealed, highly shock, impact and vibration resistant, perfectly suited for the demanding marine environment.

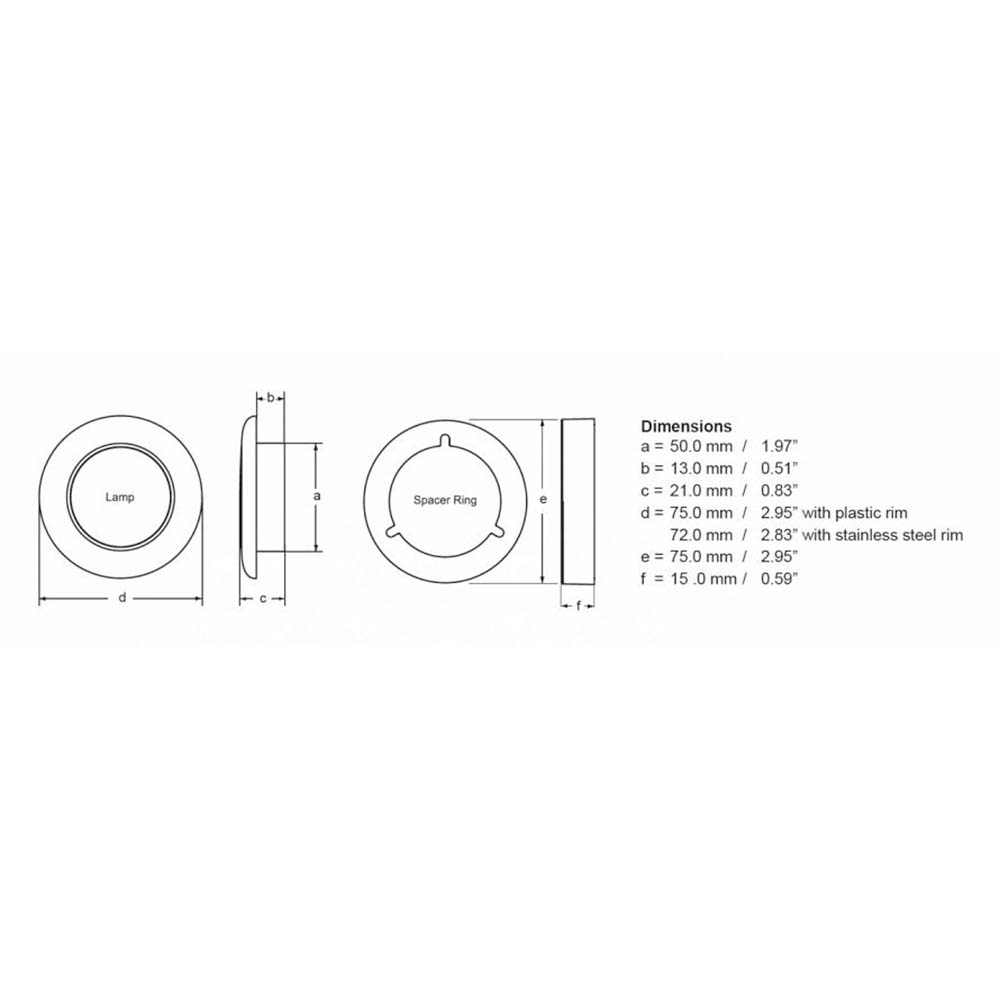

Enhanced brightness lamps include a surface mounting ring with 3 x stainless steel screws. Stainless steel and white rim lamps include a white spacer, black rim lamps a black spacer.

Specifications:

• Lens Material: UV resistant enhanced impact acrylic
• Rim Material: UV resistant plastic. 316 stainless steel
• Dimming: Dimmed via Hella Marine Dimmer 5XA 998 572-001
• Cable: Pre-wired with 120mm of single core marine cable
• Operating Voltage: 12V DC or 24V DC
• Power Consumption: < 0.5W ( < 0.042A @ 12V / < 0.02A @ 24V )
• Degree of Protection: IP 67 – Completely Sealed
• Mounting: Stainless steel screws included
• Weight: 50g (including cable)

Manufacturer : Hella Marine
Manufacturer Part No : 980507251
UPC : 9416325165101
