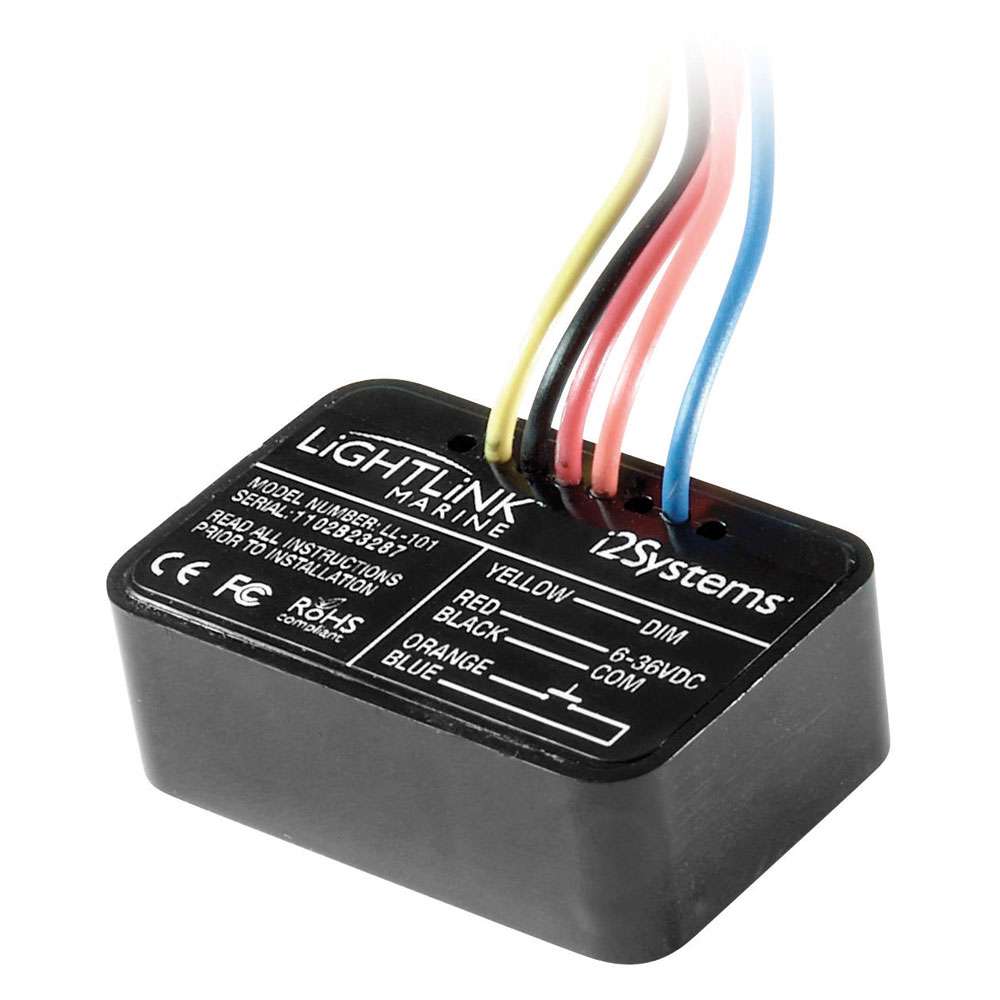

LightLink LL-101 Marine Dimming Module
Part #: LL-101

Operation is simple! Press and hold the momentary switch to initiate dimming cycle. Dimming cycle continues to dim as long as switch is engaged, ranging from 100% to approximately 5% intensity holding 2 seconds at each position before dimming the opposite direction. Briefly press and release momentary switch for on/off operation.

Specifications:

• Input Voltage: 6-36 Volt DC
• Dimensions: Width: 1.5″ x Height: 0.5″ x Depth: 1.0″

Features:

• Compatible with i2Systems Apeiron, Ember and Profile lights
• Dimming control via a momentary switch or contact
• Small size, encapsulated, fits into most switch boxes

The LL-101 means that no matter what level you have the lights at when you turn them off, they will resume at full brightness when turned back on.

The LightLink LL-101 is capable of dimming and controlling up to
(20) i2Systems Fixtures, including:

• Apeiron A1110
• Apeiron A2162
• Ember E1150
• Profile P1100

(20′) i2Systems

• S-Line S1200

Manufacturer : I2Systems Inc
Manufacturer Part No : LL-101
