Lectrotab Joystick LED Trim Tab Control

MPN: JLC-11

SKU: CW101159

Lectrotab Joystick LED Trim Tab Control

MPN: JLC-11

SKU: CW101159

Experience seamless boat handling with the Lectrotab Joystick LED Trim Tab Control, designed for intuitive operation and enhanced boating pleasure. Effortlessly manage your trim tabs with a single joystick, ensuring precise adjustments for optimal performance. The LED display offers clear visibility of tab positions, adapting brightness to ambient light conditions, while the NMEA 2000 compatibility ensures seamless integration with your marine systems.

Features
  • Single joystick operation
  • LED tab position indicators
  • NMEA 2000 compatible
  • Waterproof and UV-resistant design
  • Automatic return to last position

2 in stock

$451.29

2 in stock

-

Free Shipping

OEM Parts

With 2-Day Shipping

Get By Tuesday 01/27

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Lectrotab Joystick LED Trim Tab Control

[mwai_chatbot id="default"]

About your product

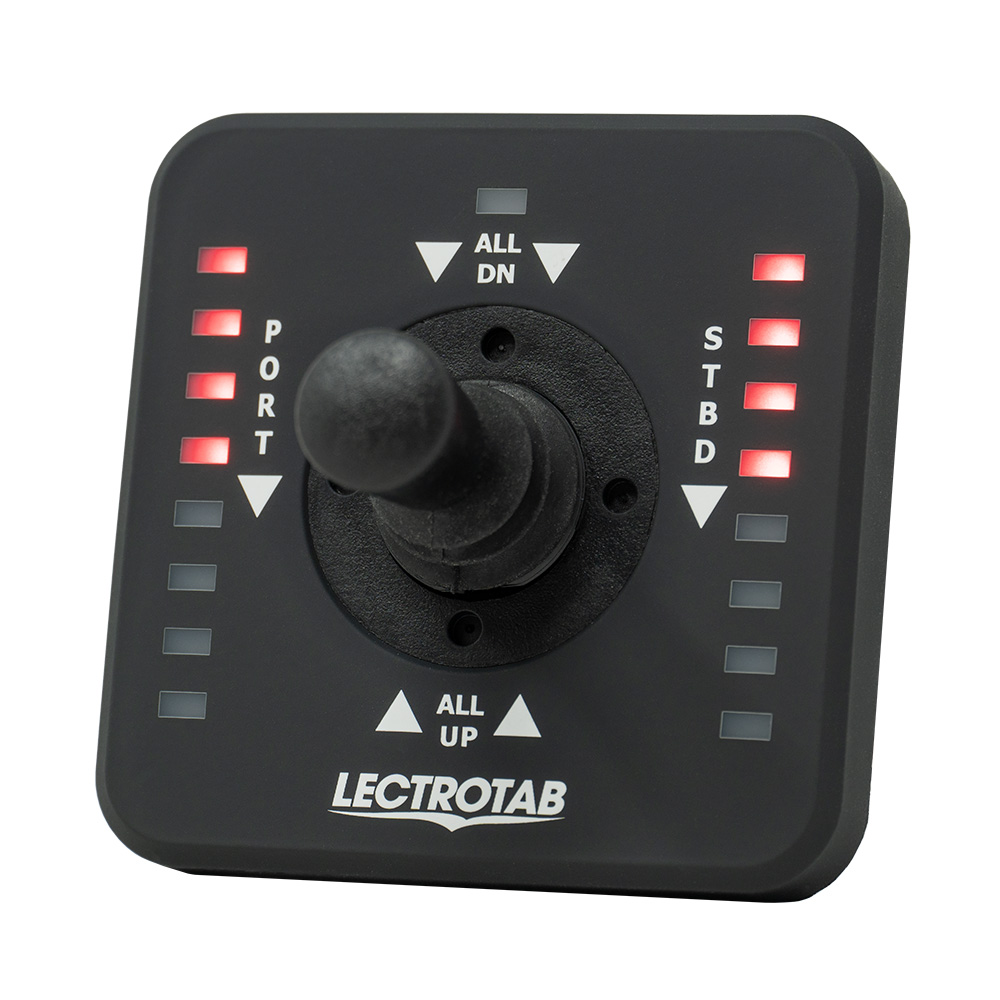

Joystick LED Trim Tab Control

Lectrotab’s Joystick LED control incorporates features requested by boat owners to provide user-friendly control for a more enjoyable boating experience.

Features:

  • Single “Joystick” control
  • NMEA 2000 compatible
  • LED display of each trim tab position
  • Microprocessor-based trim tab control with LED tab position indicators
  • NMEA 2000 compatible with JLC-NMEA adapter
  • Move both tabs up or down simultaneously with a single motion
  • Dual station ready – just add a second JLC-11 and JR-* cable (sold separately)
  • Automatic return to last tab position if the ignition key is turned off and back on again
  • Completely sealed, completely waterproof, and will not deteriorate in sunlight
  • Automatic tab retraction and calibration with key or accessory switch off
  • Easy upgrade from any of our Lectrotab controls
  • No external power module required
  • LED tab position indicators dim automatically in darkness and brighten in sunlight
  • Single or Dual Actuator per tab
  • Operates on 12 or 24 VDC systems

Specifications:

  • Display Color: Black
  • Number of Stations/Actuators: Single or Dual Station/1 or 2 Actuator/tab
  • Overall Width: 3.0″/77mm
  • Overall Height/Thickness: 3.0″ (77mm)/2.0″ (50mm)
  • Mounting Hole Cutout (Diameter): 2.625″/66.7mm
  • DC Voltage: 12/24
  • Fuse Size Power Input (1 Actuator Per Tab): 12 VDC-15 or 20 AMPs 24 VDC = 10 AMPs
  • Fuse Size Aux. (Must Connect): 1 to 2 AMPs

Manufacturer : Lectrotab
Manufacturer Part No : JLC-11
UPC : 850046155673

Additional information

Weight 0.60 lbs
Dimensions 6.00 × 5.00 × 4.00 in
