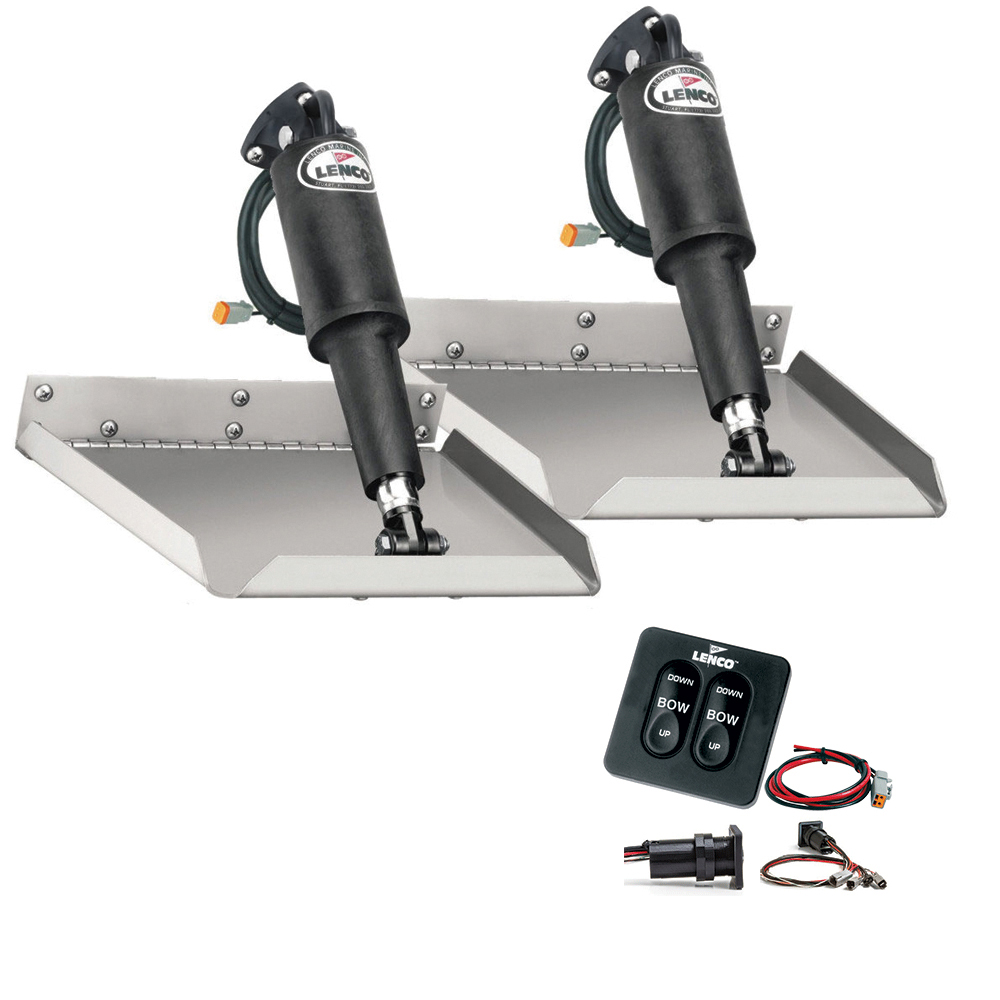

Edge Mount Trim Tab Kit w/Standard Tactile Switch Kit

Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4″ (10.16 cm) less transom height than Lenco standard mount trim tabs.

Suggested Boat Length:16′-25′
L” x W”: 9″ x 12″
Hinge Height: 2″
Minimum Transom Height: 13.5″

Kit Contents

• 2 each of 12-gauge stainless steel trim tab blades

• 2 each of #15054-001 actuator with 6′ leads & Deutsch plugs

• 2 each of #30133-103 20′ actuator extension wiring harnesses

• 2 each of #15085-001 (116) upper mounting brackets with gland seal

• 2 each of #50014-001 (119) lower mounting brackets

• 1 each of the Lenco owner’s / installation manual

• All necessary stainless steel mounting hardware

Specifications:

• Blades: 12 Gauge Stainless Steel

• Finish:Smooth

• Class: Fuel Efficient

• Compliance: CE Certified

• Compatibility: Any Boat
