Maretron

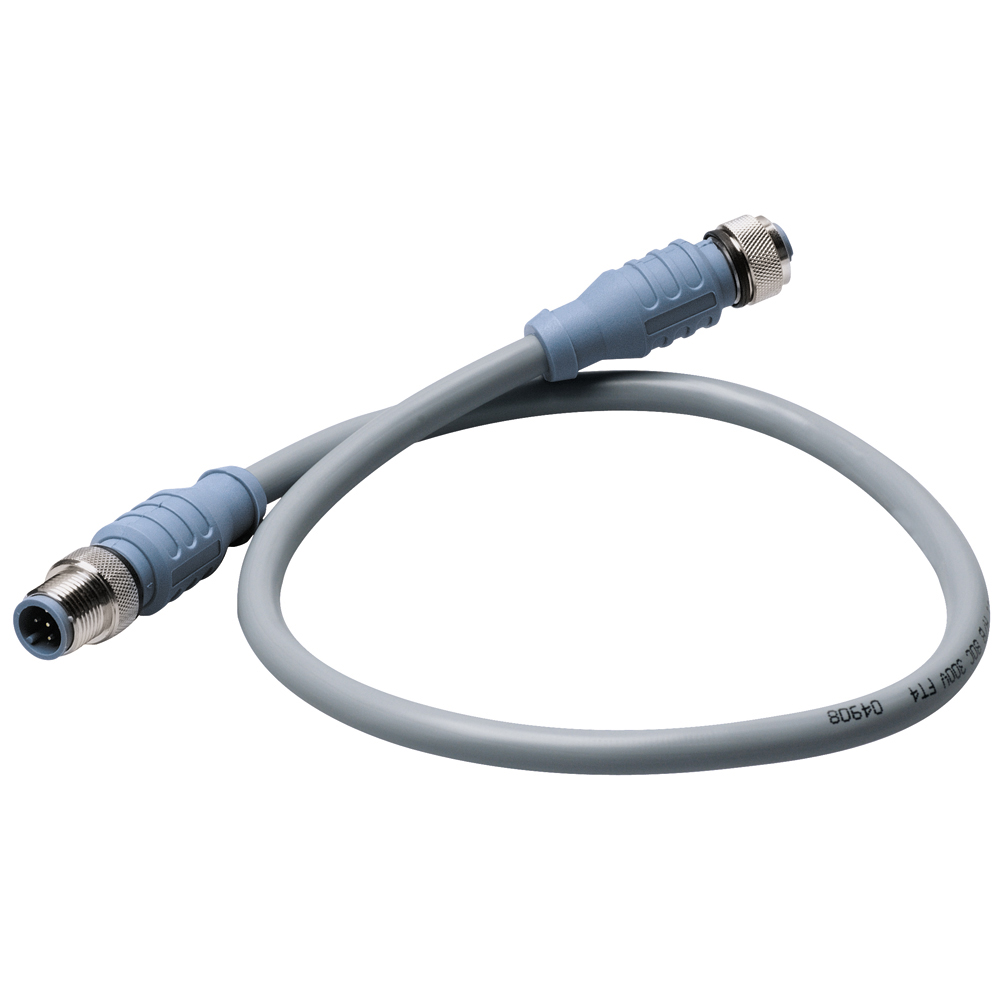

Maretron Micro Double-Ended Cordset – 1 Meter

MPN: CM-CG1-CF-01.0

SKU: CW31798

Maretron Micro Double-Ended Cordset - 1 Meter
Maretron

Maretron Micro Double-Ended Cordset – 1 Meter

MPN: CM-CG1-CF-01.0

SKU: CW31798

OEM
Parts

Shop &

The Micro Double-Ended Cordset is a high-quality electrical connector designed for durability and performance. It features a robust construction with thermoplastic materials and brass plating, ensuring reliable connections. Rated for 4.0 Amps and 250 V, it is suitable for various applications. The cordset also meets stringent environmental standards.

Features
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • NMEA: NMEA 2000 Approved

14 in stock

$47.29

Maretron

14 in stock

UPS Ground

OEM Parts

With 2-Day Shipping

Get By Thursday 02/19

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Maretron Micro Double-Ended Cordset – 1 Meter

[mwai_chatbot id="default"]

About your product

Micro Double-Ended Cordset – 1M

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

Manufacturer : Maretron
Manufacturer Part No : CM-CG1-CF-01.0
UPC : 873804001517

Additional information

Weight0.20 lbs
Dimensions5.00 × 4.00 × 1.00 in
Brand
