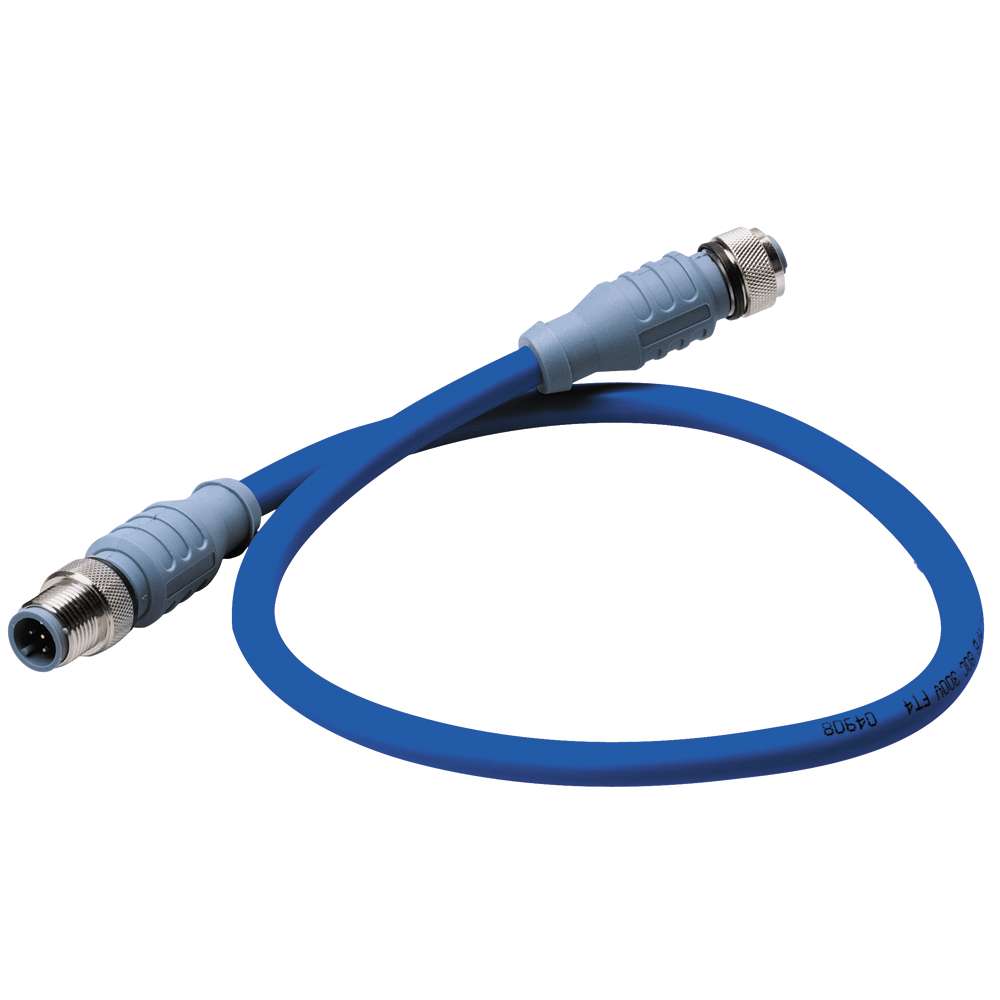

Maretron Mid Double-Ended Cordset – 10 Meter – Blue

MPN: DM-DB1-DF-10.0
SKU: CW47021
Maretron Mid Double-Ended Cordset - 10 Meter - Blue

Maretron Mid Double-Ended Cordset – 10 Meter – Blue

MPN: DM-DB1-DF-10.0

SKU: CW47021

The Maretron Mid Double-Ended Cordset is a durable and high-performance cable designed for marine applications. It features robust materials and excellent electrical ratings, ensuring reliable connectivity. The cordset is rated for extreme temperatures and is NMEA 2000 approved. Its construction meets various environmental protection standards.

Features
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Current Rating: 4.0 Amps, Voltage Rating: 250 V
  • Outer Jacket Mat/Color: PVC/Gray
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • NMEA 2000 Approved, UL and CSA certifications

Categories: ,

1 in stock

$60.30

Free Shipping

OEM Parts

1 in stock

-

With 2-Day Shipping

Get By Wednesday 05/07

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Maretron Mid Double-Ended Cordset – 10 Meter – Blue

[mwai_chatbot id="default"]

About your product

Product Description

Maretron Mid Double-Ended Cordset – 10 M Blue

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″

    Electrical

  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS

  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3
    Manufacturer : Maretron
    Manufacturer Part No : DM-DB1-DF-10.0
    UPC : 873804001999
    • Specs & Manuals

    Additional information

    Weight 2.30 lbs
    Dimensions 8.00 × 8.00 × 2.00 in
    Brand

    UPC

    MPN
