Maretron

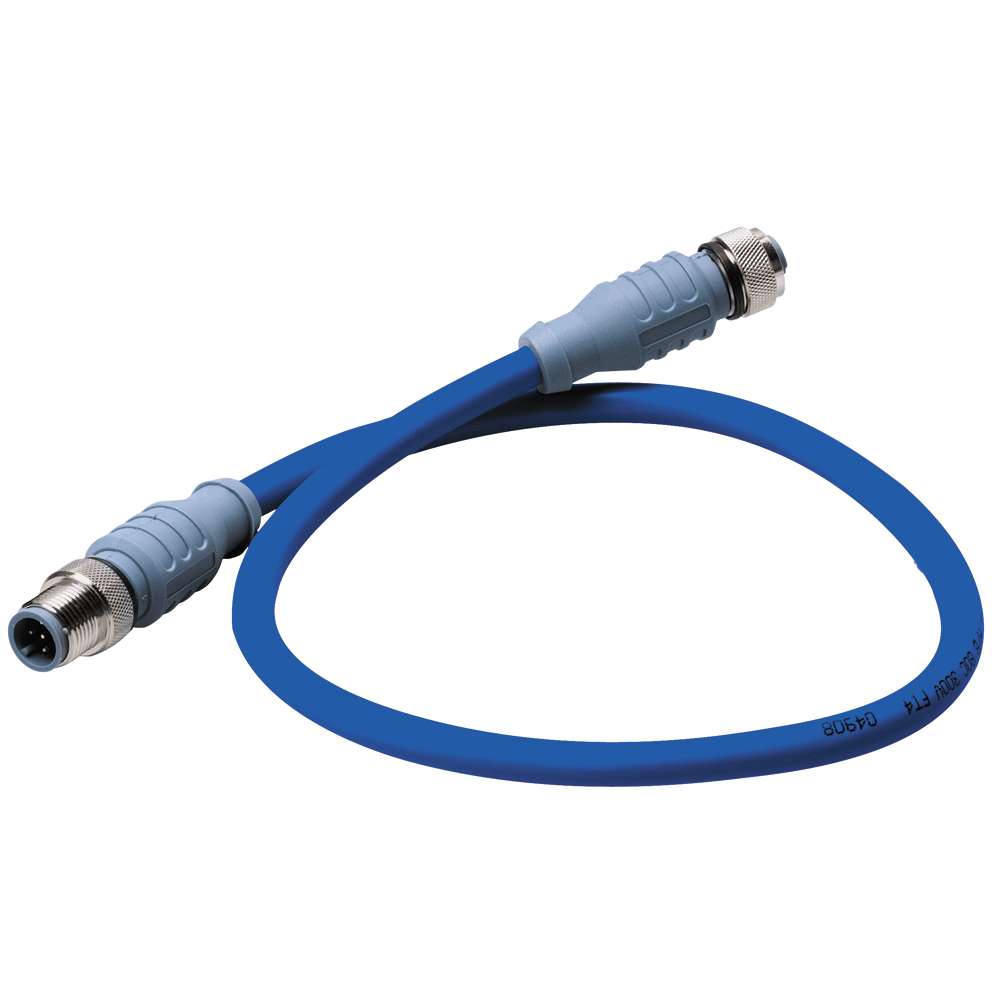

Maretron Mid Double-Ended Cordset – 6 Meter – Blue

MPN: DM-DB1-DF-06.0

SKU: CW47016

Maretron Mid Double-Ended Cordset - 6 Meter - Blue
Maretron

Maretron Mid Double-Ended Cordset – 6 Meter – Blue

MPN: DM-DB1-DF-06.0

SKU: CW47016

OEM
Parts

Shop &

The Maretron Mid Double-Ended Cordset is a high-quality electrical connector designed for durability and performance. It features a robust construction with a temperature rating of -40 to 80 degrees Celsius. The cordset is NMEA 2000 approved and suitable for various environmental conditions. Its design ensures reliable connectivity in marine applications.

Features
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Current Rating: 4.0 Amps, Voltage Rating: 250 V
  • Outer Jacket Mat/Color: PVC/Gray
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • NMEA 2000 Approved, IEC 61162-3

3 in stock

$65.00

Maretron

3 in stock

Free Shipping

OEM Parts

With 2-Day Shipping

Get By Monday 02/16

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Maretron Mid Double-Ended Cordset – 6 Meter – Blue

[mwai_chatbot id="default"]

About your product

Maretron Mid Double-Ended Cordset – 6 M Blue

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″

    Electrical

  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS

  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3
    Manufacturer : Maretron
    Manufacturer Part No : DM-DB1-DF-06.0
    UPC : 873804001951

    • Additional information

    Weight1.40 lbs
    Dimensions6.00 × 6.00 × 1.00 in
    Brand

    UPC
