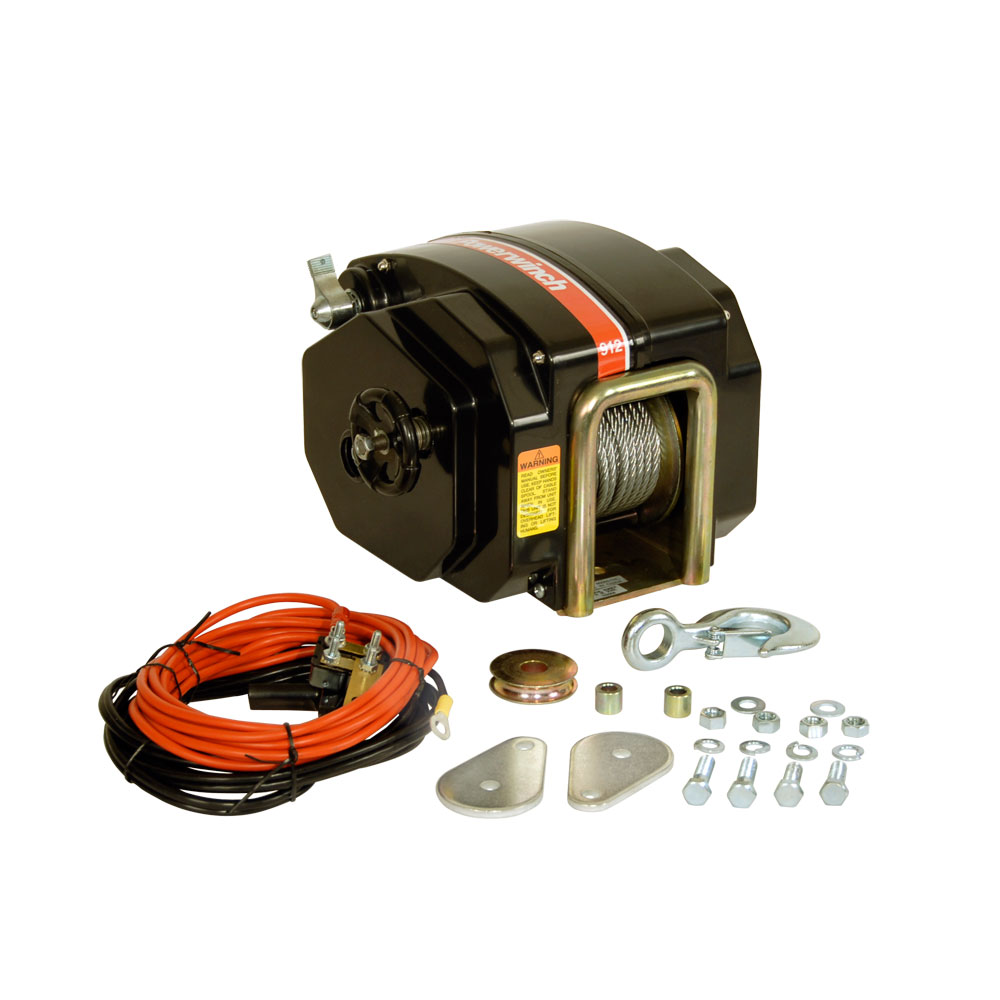

12v Electric Trailer Winch

The 912 and 712 Trailer Winches are well established with solid, reliable reputations. They feature smooth power-in/free-wheel out action. You can use a pulley or block at the bow eye to double your pulling power You can get more strength out of your trailer winch, but it slows retrieval speed 50%.

• Remote power-in/freewheel-out operation
• 60 amp standard wiring harness
• Pulley block for double line applications
• One year limited warranty

Model 912

• suggested max boat length
• Max. boat weight of 11,500 lbs
• 4000 lb vertical lift capacity (single line) or double pull/line capacity 7500 lbs. (Not to be considered or used as a hoist)

Specifications

• Max. Boat Weight: 11500
• Line Speed: 8 FPM
• Vertical Lift Capacity: 4000 lbs
• Remote Control: No
• Light: No
• Double Line Capacity: 7500 lbs
• Gear Ratio: 450:1
• Power Source: 12V
• Circuit Breaker: 60 amp
• Unit Weight: 35 lbs
• Depth: 10″
• Width; 10″
• Height: 8″
• Cable Length and Diameter: 40′ x 7/32″
  Manufacturer : Powerwinch
  Manufacturer Part No : P77912
  UPC : 000000166089
