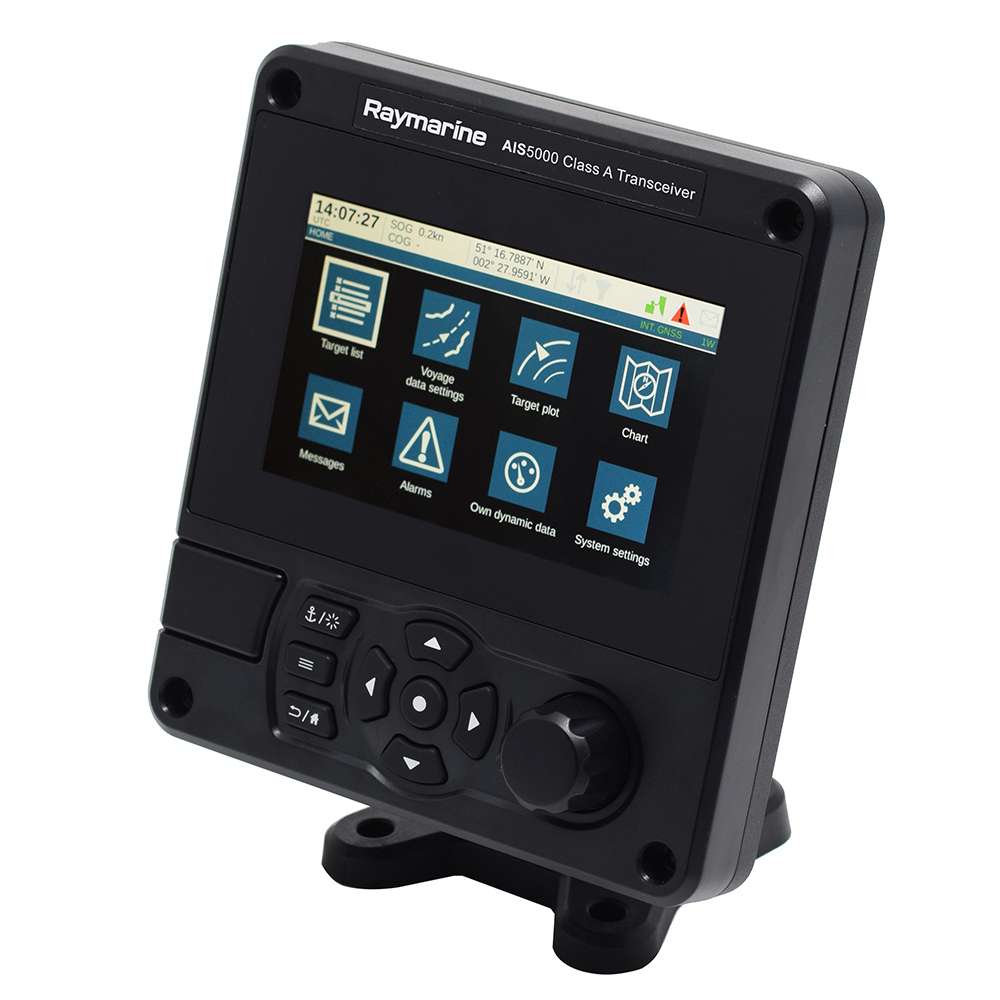

AIS5000 AIS Transceiver for Maritime First Responders

Designed for maritime first responders, search and rescue (SAR) and law enforcement agencies, the AIS5000 Automatic Identification System (AIS) transceiver delivers robust Class A AIS network capability and serves as a gateway device for secure text messaging in the maritime domain.

AIS5000 integrates with Raymarine encrypted multifunction displays to enable secure ship-to-ship and ship-to-shore messaging, tasking, intel sharing, SAR coordination and much more.

Raymarine’s encrypted navigation system is the only system certified to the US Federal Information Processing Standards (FIPS 140-2) and offers Secure but Unclassified Tactical Exchange Data System (STEDS) capability to authorized participating agencies.

Advanced Class A AIS Capabilities

AIS5000 is a full-function Class A Automatic Identification System transceiver enhanced for First Responder applications.

• Fourth generation AIS technology for expanded speed, range and processing performance
• Full color target display with optional ENC mapping
• Integrated Man Overboard/SAR Transponder track and management system
• Silent mode (receive-only) mode for anti-piracy and EMCON operations

Rugged & Versatile

Engineered to withstand the toughest conditions, AIS5000 is right at home onboard all vessels from the largest ocean-going ships to small, fast RIBs and interceptors.

• Certified to the highest industry standards for waterproofness, shock and vibration
• Compact enclosure with NMEA2000 and NMEA0183 connectivity
• Optional junction box available for expanded shipboard sensor and ECDIS connectivity
• Flexible overhead, bulkhead, desktop and surface mount options

Secure Maritime Domain Awareness

AIS5000 integrates with LightHouse encrypted MFDs to securely pass digital data between friendly units using the VHF-band AIS network.

• Blue Force Tracking (BFT) of friendly units.
• Open or covert participation in the AIS network along with partner vessels.
• Secure text messaging, status reporting, intel sharing and tasking*
• Target of Interest (TOI) designation and interception*
• Over-the-air reception and automatic SAR pattern plotting*

*Coming soon for LightHouse 3 based systems.

What’s in the Box?

• E70529    AIS5000 Tranceiver
• A80586    Mounting Bracket
• A80587    Power Cable
• A80588    Junction Box
• A80589    GNSS Antenna
• A80593    Interface Cable (x2)
• LIT70279    AIS5000 Literature Pack

Manufacturer : Raymarine
Manufacturer Part No : E70529
UPC : 723193831168
