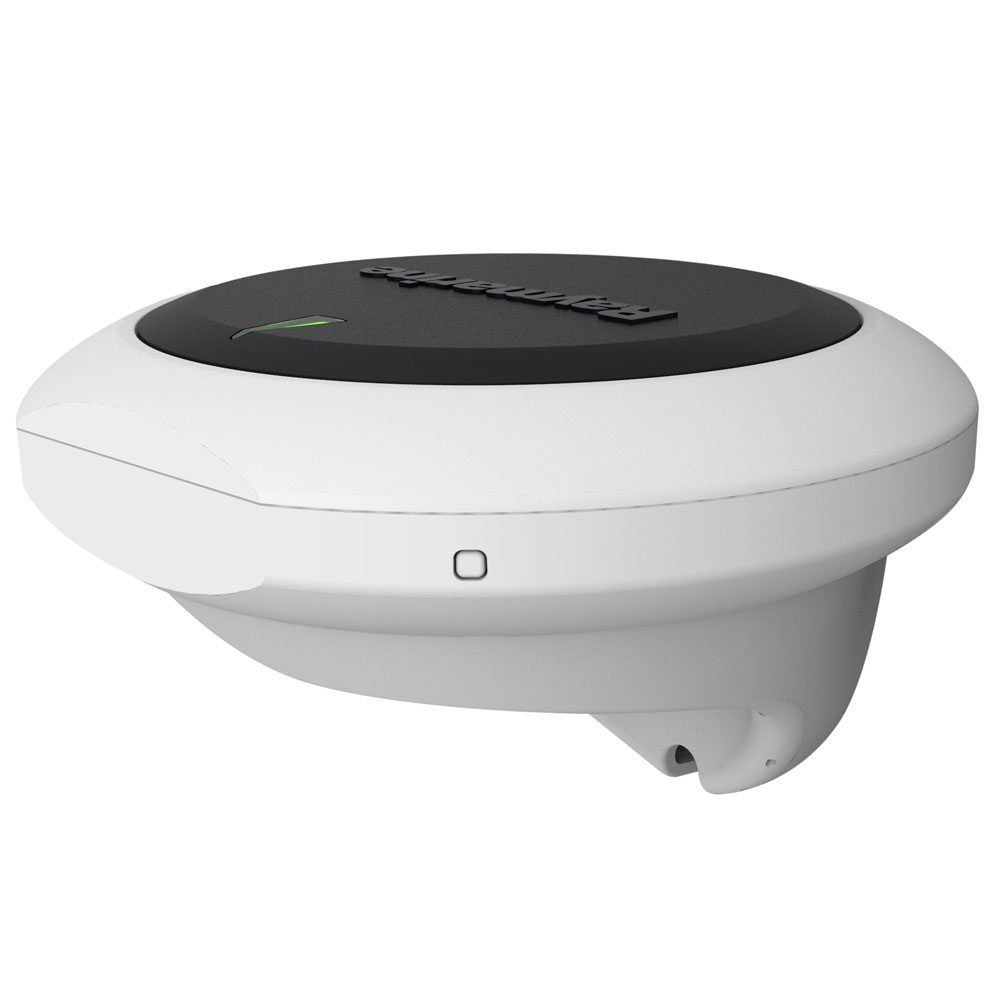

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-to-install housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change

• Flexible installation options. Mount above or below deck

• Simple SeaTalk^ng connectivity to the control head and ACU

• Solid state sensor technology delivers dynamic accuracy to within 2° in all conditions

• Auto-compensation for on board magnetic fields and reliable heading accuracy in the northern and southern extremes

• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

Manufacturer : Raymarine
Manufacturer Part No : E70096
UPC : 723193768884
