Flip Pro Plus Fast Charge USB-A & USB-C Socket

The revolutionary ultra-fast combination USB A & USB C charger.

Flip Pro Plus is designed for use with either a 12V or 24V input and features 1x 60W USB-C and 1x36W USB-A charging ports for maximum choice and performance. Juggling different devices with different cables? Then this is the option.

Features:

• 12/24V fast charge, dual USB socket
• Redesign to match other Flip Pro aesthetics
• Low profile
• Type A/C dual USB charger

The Flip Pro Plus is a combination of Scanstrut’s most sought-after chargers, designed to be used with either a 12V or 24V input, and features 1x USB-A and 1x USB-C to create a rapid, universal, ultra-fast charging solution.

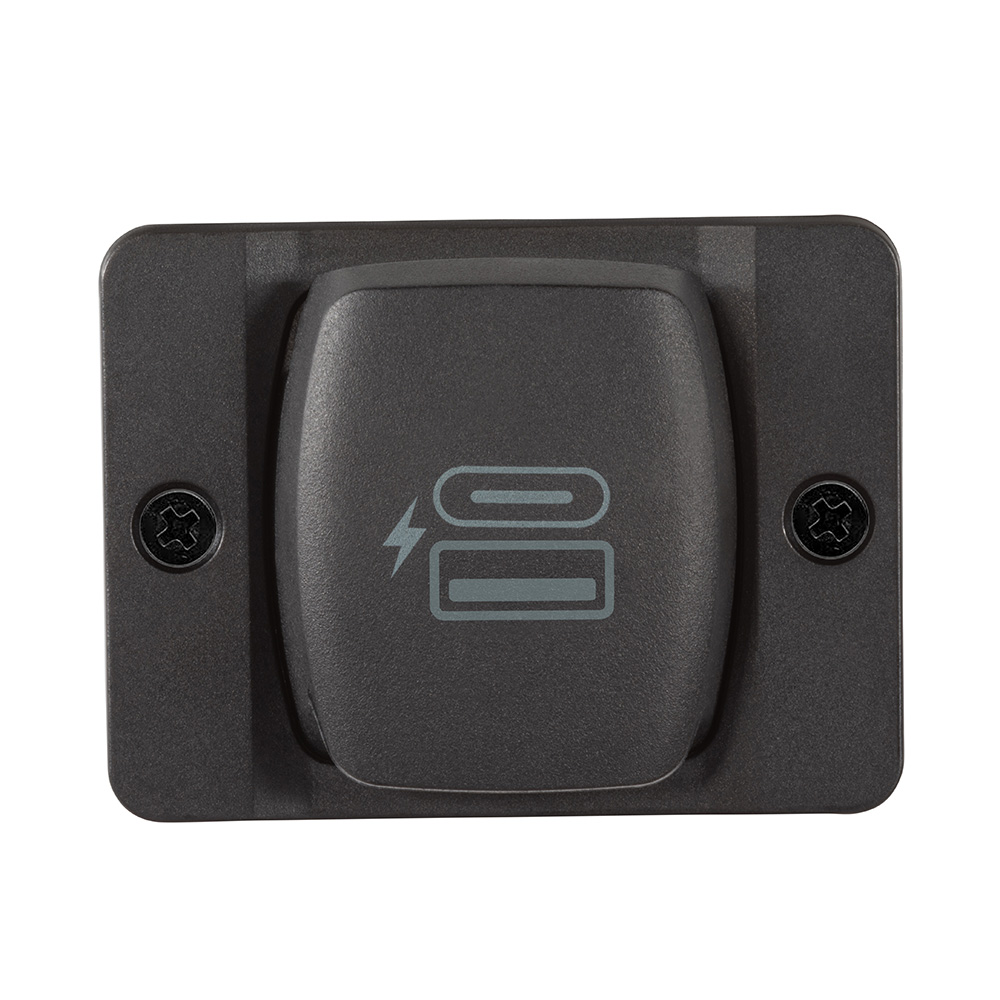

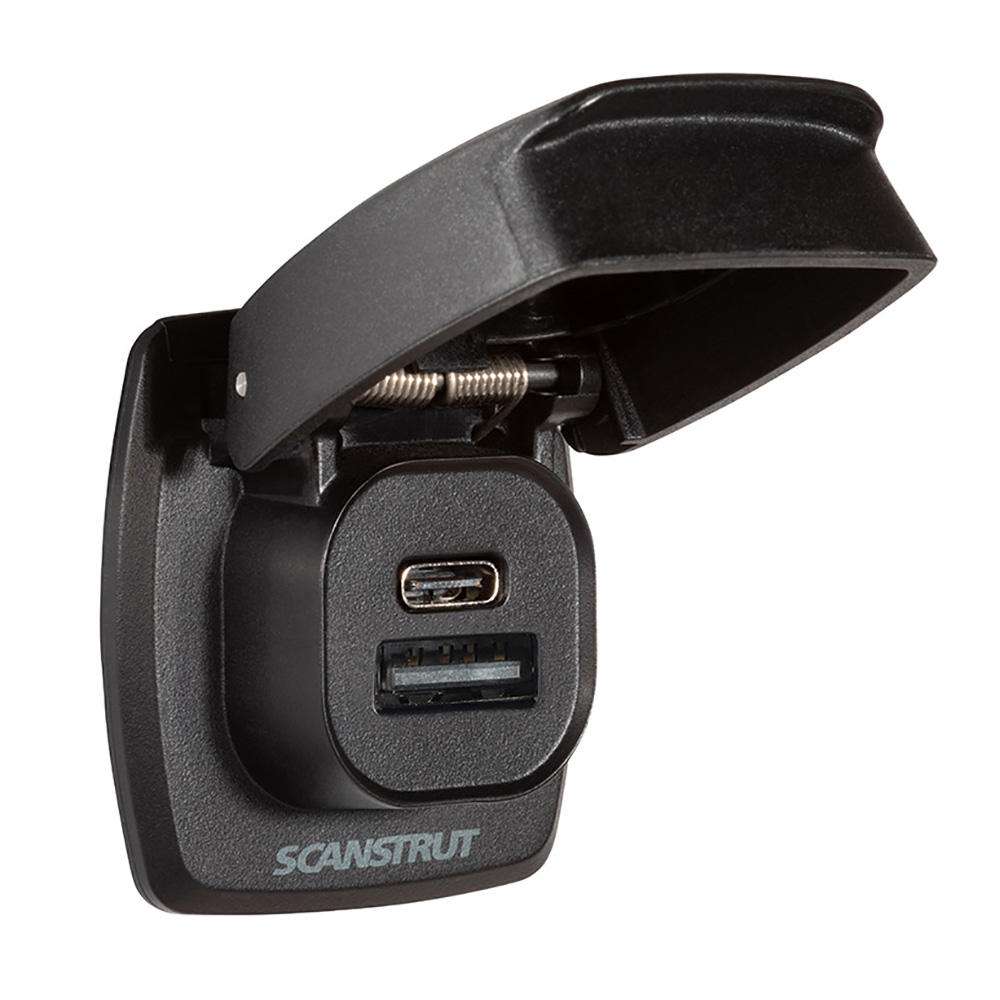

The Flip Pro Plus is a redesign of Scanstrut’s classic Flip Pro to ensure the boat’s aesthetics stay aligned with Scanstrut’s other designs in the Flip Pro range.  When not in use, the spring-loaded caps remain tightly closed, protecting the ports from the elements.

Featuring a super-compact footprint that matches the rest of Scanstrut’s Flip Pro range, it is constructed from premium, marine-grade materials. Flip Pro Plus has been rigorously tested and is IPX4 waterproof, making it completely washdown-ready.

Flip Pro Plus is FAST! It will charge at 36W on a 12V system or up to 60W on a 24V. With a PD chip, this charger is truly universal, making it perfect for charging modern laptops via the USB-C port. It is also designed for charging large tablets, offering an effortless charge for both an iPad Pro & iPhone at the same time.

USB – C output:

• 60W max on 24V system
• 36W max on 12V system

USB-A – A output:

• 36W max

The install cut-out matches Scanstrut’s Flip Pro Max, Duo, and Multi USB sockets (32mm (1 1/8”) for a seamless look across the range. Now users can keep up with the heavier power draws of modern electronic devices while keeping premium, universal USB chargers all around the boat.

Universal

• Universal fit for any USB-A or USB-C connectors
• Fast charge up to 2 devices at a time
• Easy Install, using a standard USB mounting hole – 32mm (1 1/8”)

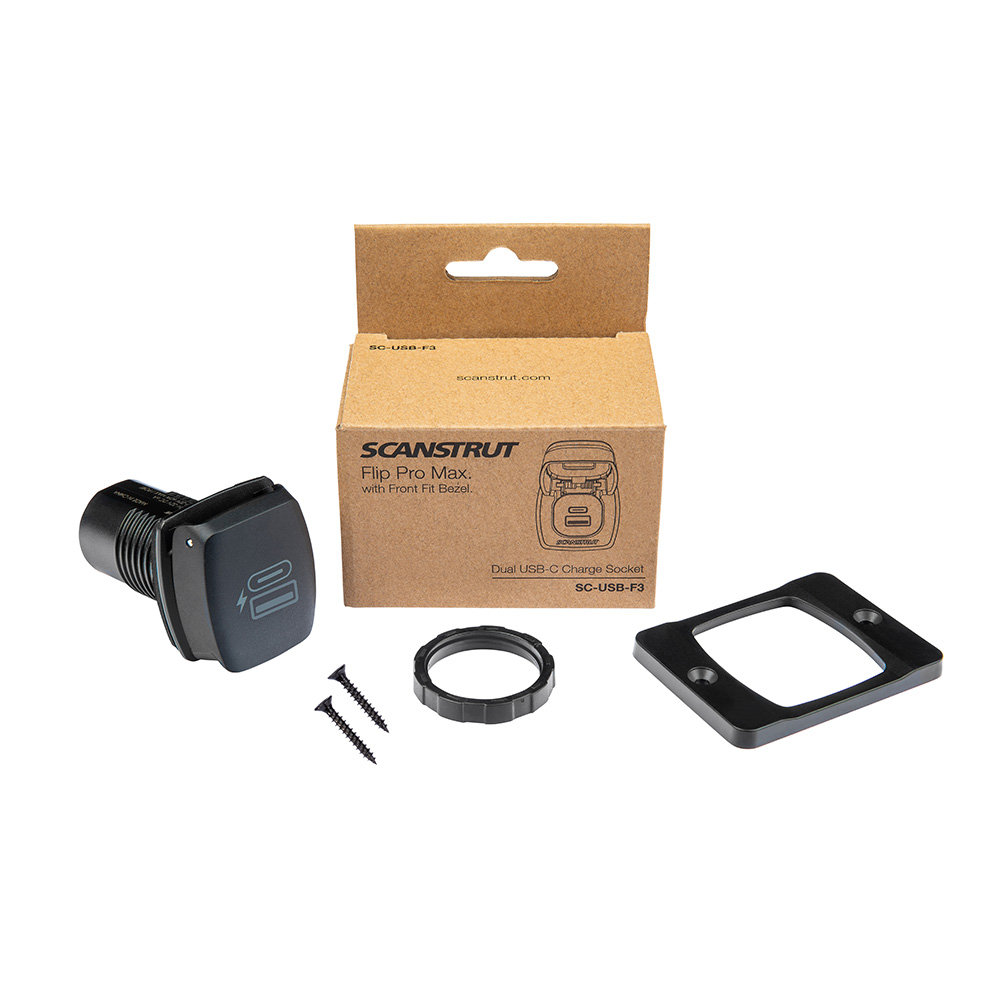

Is supplied with an optional front mount bezel

• Washdown Proof
• IPX4 waterproof with the cover closed

Marine Ready

• PCB /or electronic with a protective coating
• UV resistant Plastics
• 316 stainless hinge and spring

Electrical Information

• Input voltage: 10-30V DC (12/24V System)
• Input current Max: 6A (10A fuse recommended)
• Standby power draw: 0.01W

Important information

The charge cable supplied with the device (tablet, phone, action camera, etc) must be used to achieve maximum charge performance from this charger. Phones will charge at the same speed, whether on a 12V or 24V input voltage system. However, a 24V system must be used to get the full 60W output suitable for fast-charging laptops.

Manufacturer : Scanstrut
Manufacturer Part No : SC-USB-F4
UPC : 5060114798878
