Horizontal Double-Entry Cable Seal – Grey

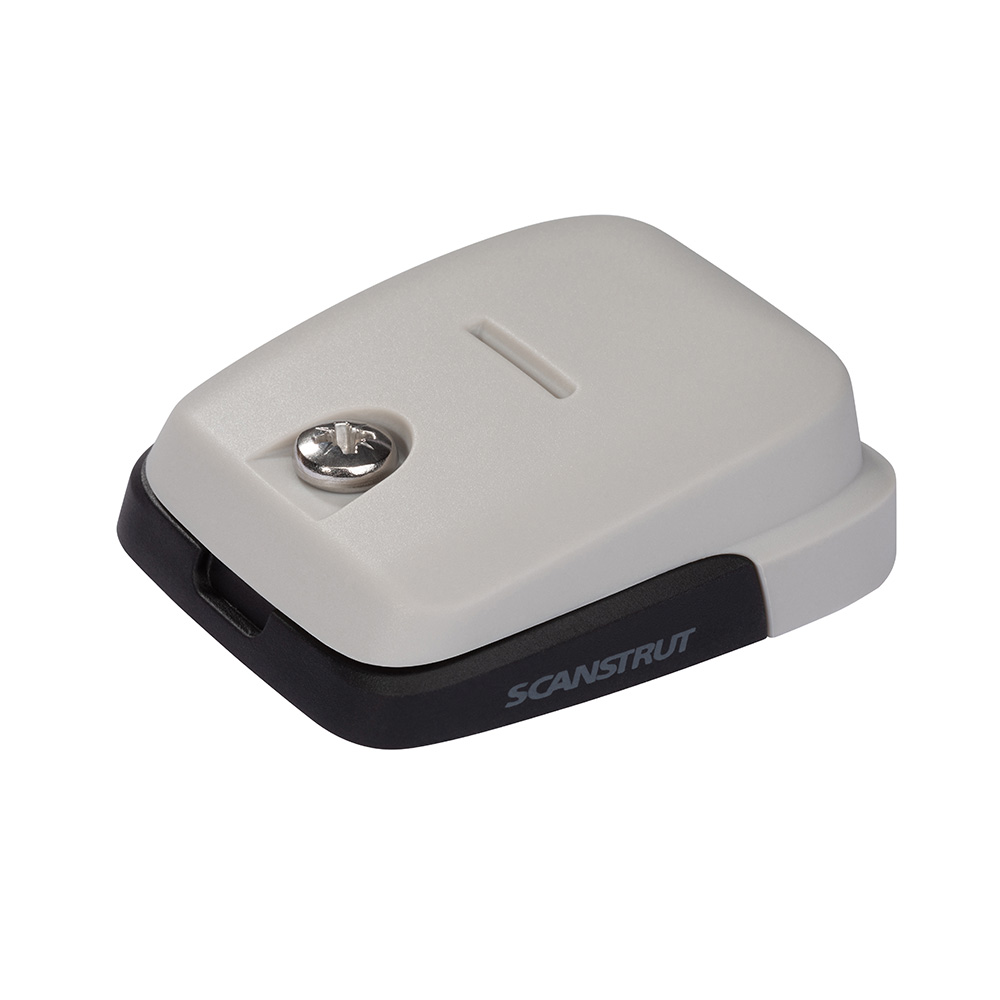

The DS-HD6 double horizontal cable seal was designed to eliminate the time-consuming and sub-standard routing of solar panel cables. Scanstrut’s seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two solar panel cables externally to internally on the roof of boats.

Features:

• Designed for solar panel installations
• Compact footprint – just 54mm (W) 63mm (L) 24mm (h)
• Makes it perfect for installing it as close to the solar panel as possible
• Easy-fit cable routing that cuts down the installation time through wood, metal, and GRP
• IP68 watertight seal
• Grey high-impact plastic

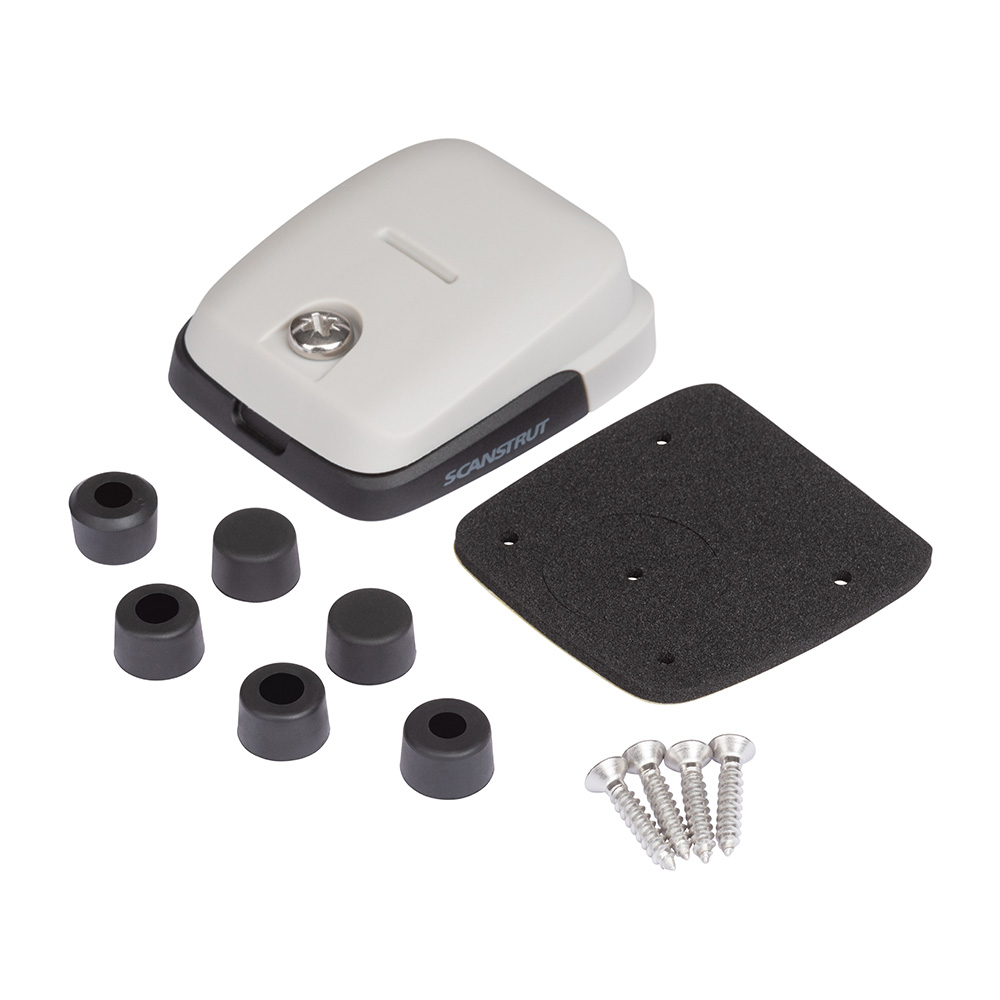

• Includes 316 stainless steel fixings and a waterproof 3M gasket
• Clean and simple design
• The low-profile construction is impact-resistant and provides extra protection from water
• Captive nuts make for easy assembly and also allow for reliable repeat installations
• Scanstrut’s materials have been selected to be UV-stable and hard-wearing
• No messy sealant on the bungs
• Constructed from premium marine-grade materials

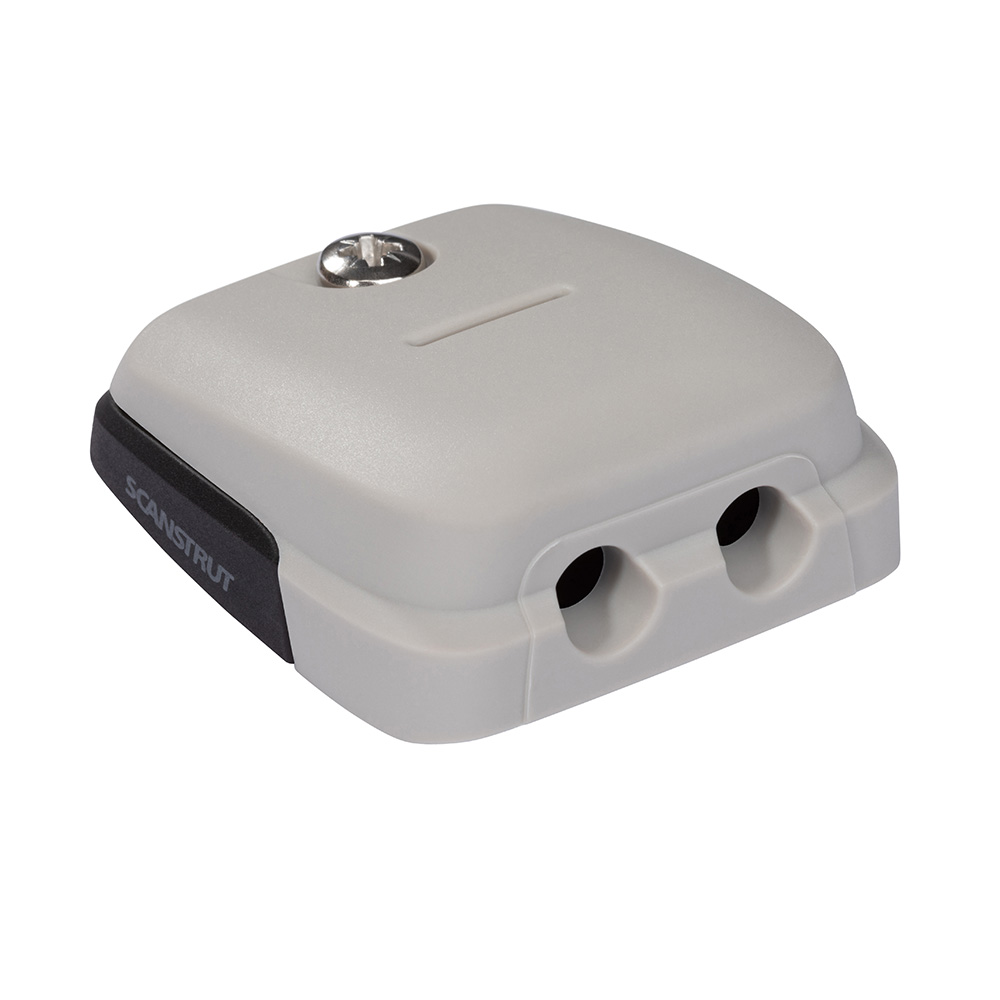

Install 2 Cables – Select Any Combination:

• 5mm (0.19”) and 6mm (0.23”) in any combination

Manufacturer : Scanstrut
Manufacturer Part No : DS-HD6
