Schaefer Marine

Schaefer Spring Loaded-Lined Slide-Stainless Steel f-1-1-4″ T-Track

MPN: 705-92

SKU: CW74742

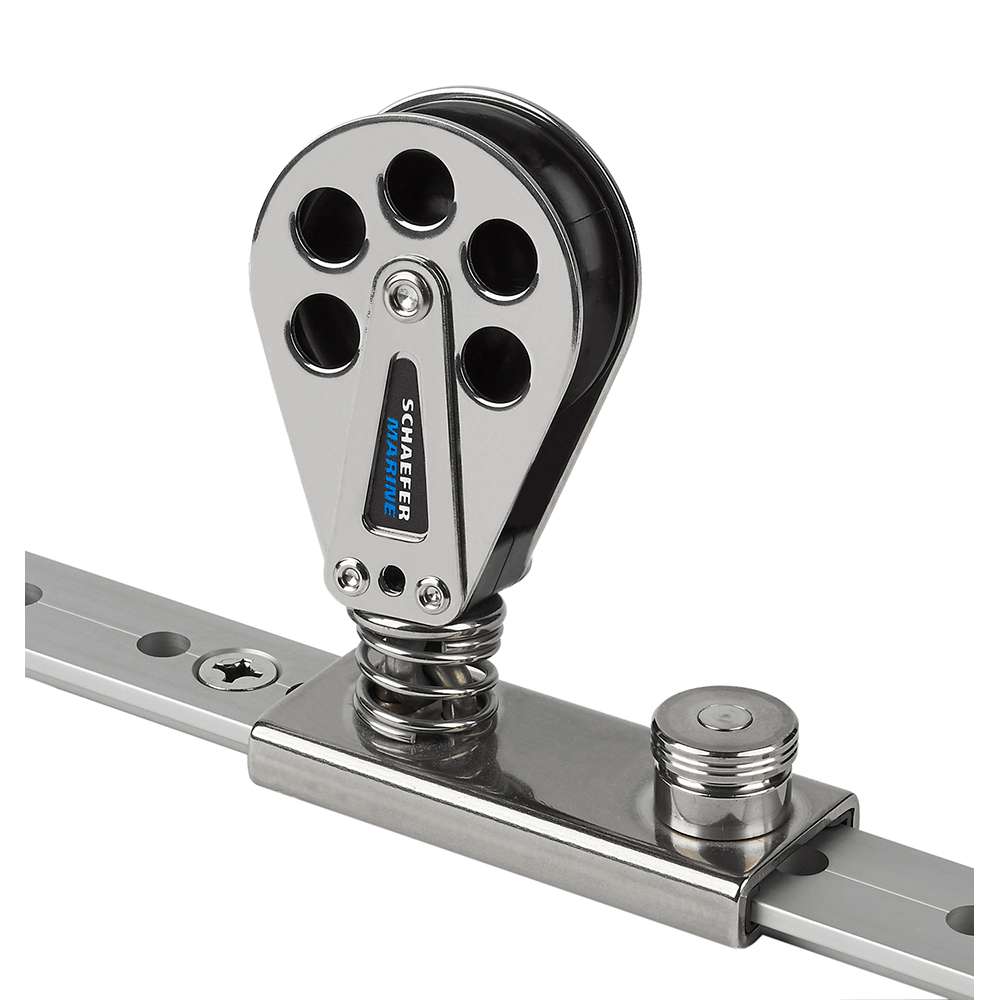

Schaefer Spring Loaded-Lined Slide-Stainless Steel f-1-1-4" T-Track

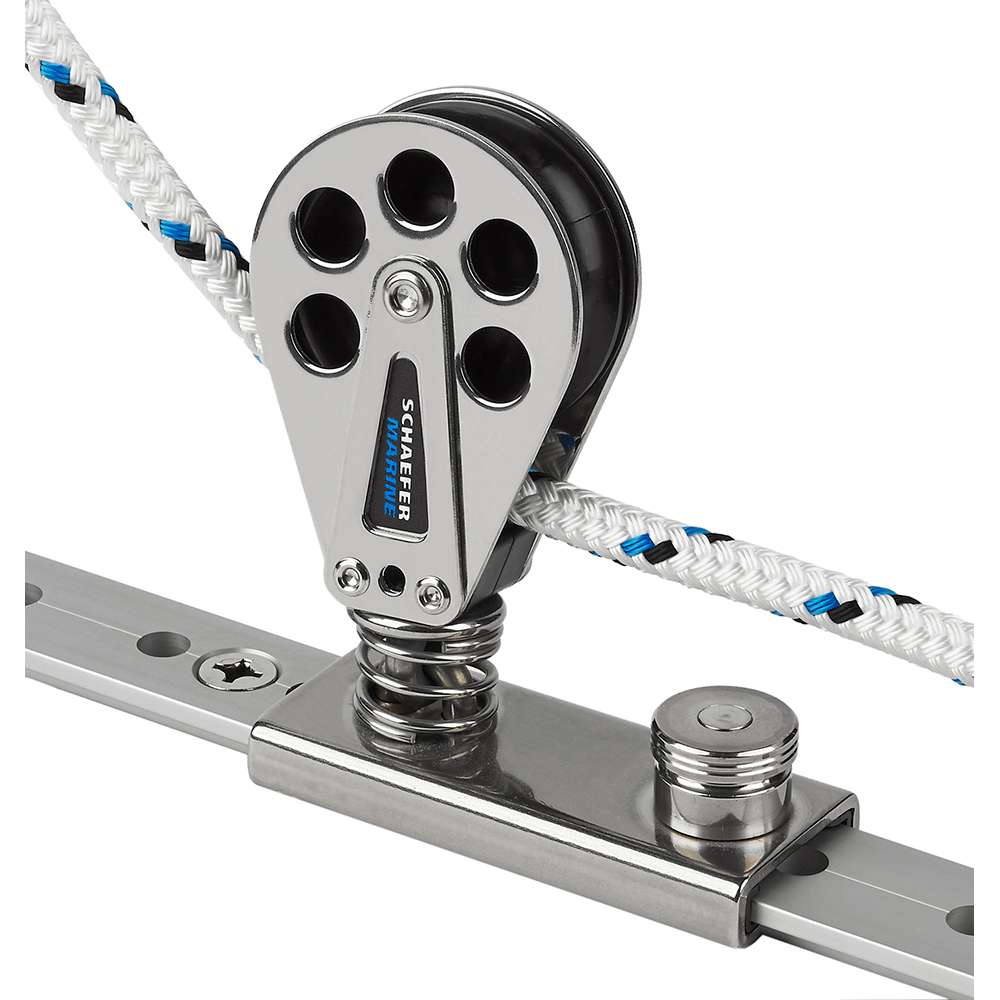

Schaefer Spring Loaded-Lined Slide-Stainless Steel f-1-1-4" T-Track - Image 2
Schaefer Marine

Schaefer Spring Loaded-Lined Slide-Stainless Steel f-1-1-4″ T-Track

MPN: 705-92

SKU: CW74742

OEM
Parts

Shop &

The Spring Loaded/Lined Slide is designed for 1-1/4" T-Track, featuring a Delrin? sheave for smooth operation and high load capacity. Its stainless steel components ensure durability, while the polyethylene liner allows for easy adjustments. This product supports boats up to 33 feet and 12,000 lbs.

Features
  • Track Size: 1-1/4" x 3/16" (32 mm x 5 mm)
  • Max. Boat Length: 33' (10 m)
  • Max. Boat Weight: 12000 lbs. (5455 kg)
  • Max. Sail Area: 520 sq. ft. (48 m2)
  • SWL: 2250 lbs. (1020 kg)

3 in stock

$287.29

Schaefer Marine

3 in stock

Free Shipping

OEM Parts

With 2-Day Shipping

Get By Saturday 02/07

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Schaefer Spring Loaded-Lined Slide-Stainless Steel f-1-1-4″ T-Track

[mwai_chatbot id="default"]

About your product

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4″ T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

  • Track Size 1-1/4″ x 3/16″ (32 mm x 5 mm)
  • Max. Boat Length 33′ (10 m)
  • Max. Boat Weight 12000 lbs. (5455 kg)
  • Max. Sail Area 520 sq. ft. (48 m2)
  • Sheave Diameter 2-3/8″ (60 mm)
  • Max Line 1/2″ (12 mm)
  • Length 4″ (102 mm)
  • Width 1-9/16″ (39 mm)
  • Height 4-15/16″ (126 mm)
  • Bearing Height 2-3/8″ (67 mm)
  • SWL 2250 lbs. (1020 kg)
  • Weight 14 oz. (397 g)

Manufacturer : Schaefer Marine
Manufacturer Part No : 705-92
UPC : 740507021305
