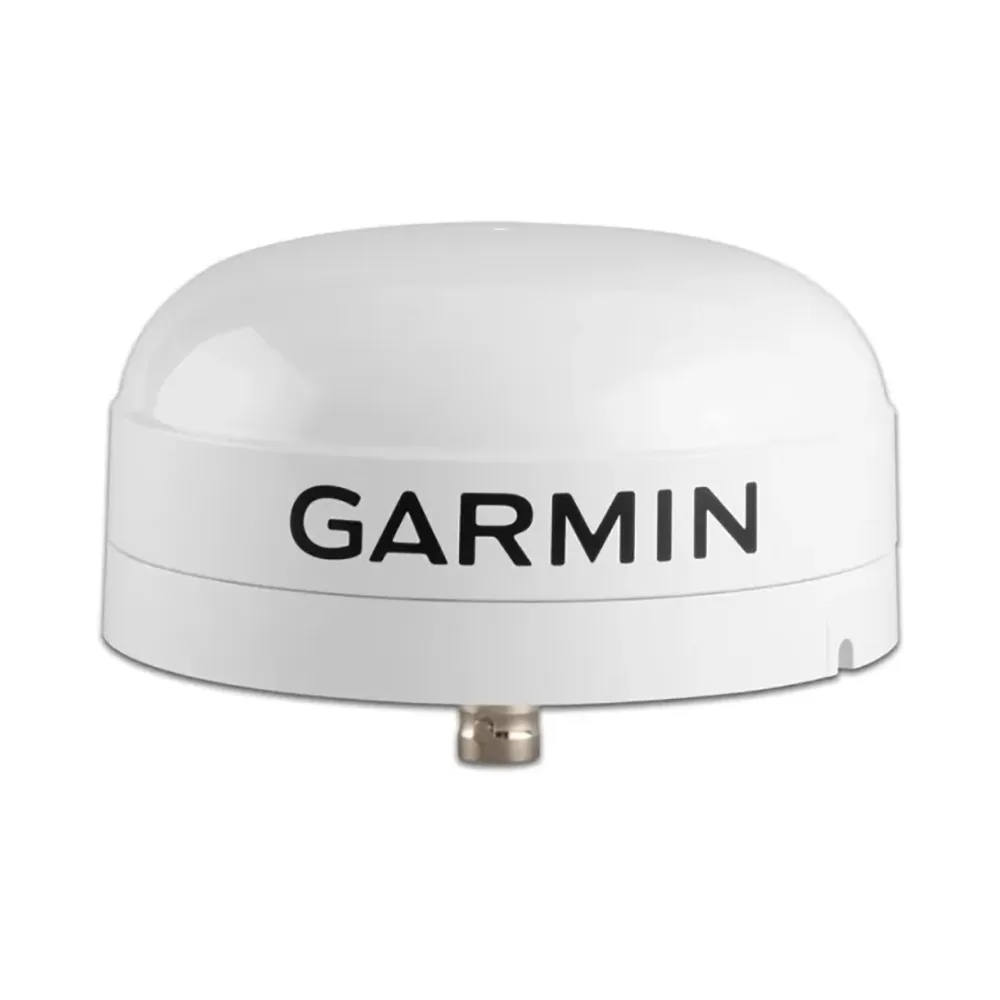

GA™ 38 GPS/GLONASS Antenna for Cortex® V1 & M1

Built to take advantage of the GLONASS system/constellation of satellites as well as standard GPS, this robust external antenna is packaged in a low-profile water-resistant housing and provides 3 easy mounting solutions: pole, surface, or under-deck (for the underside of fiberglass decks). External GPS/GLONASS antennas provide increased flexibility and installation options as well as the potential for enhanced reception of GPS/GLONASS signal for those products with built-in GPS/GLONASS antennas.

Specifications:

• Dimensions (DxH): (inch) 3-19/32″ x 1-5/18″ / (mm) 91.6 x 49.5
• Weight: 7.1 oz / 201 g.
• Temperature Range: -22° F to 176° F / -30° C to 80° C
• Case Material: Fully gasketed, high-impact plastic alloy, waterproof to IPX7

What’s In The Box?

• GA 38
• Surface mounting bracket
• Pole mounting bracket
• Under-deck mounting bracket
• Mounting hardware
• BNC-SMA antenna cable (32 ft/10m)
• Installation instructions

Manufacturer : Vesper
Manufacturer Part No : 010-13305-00
UPC : 753759318703
