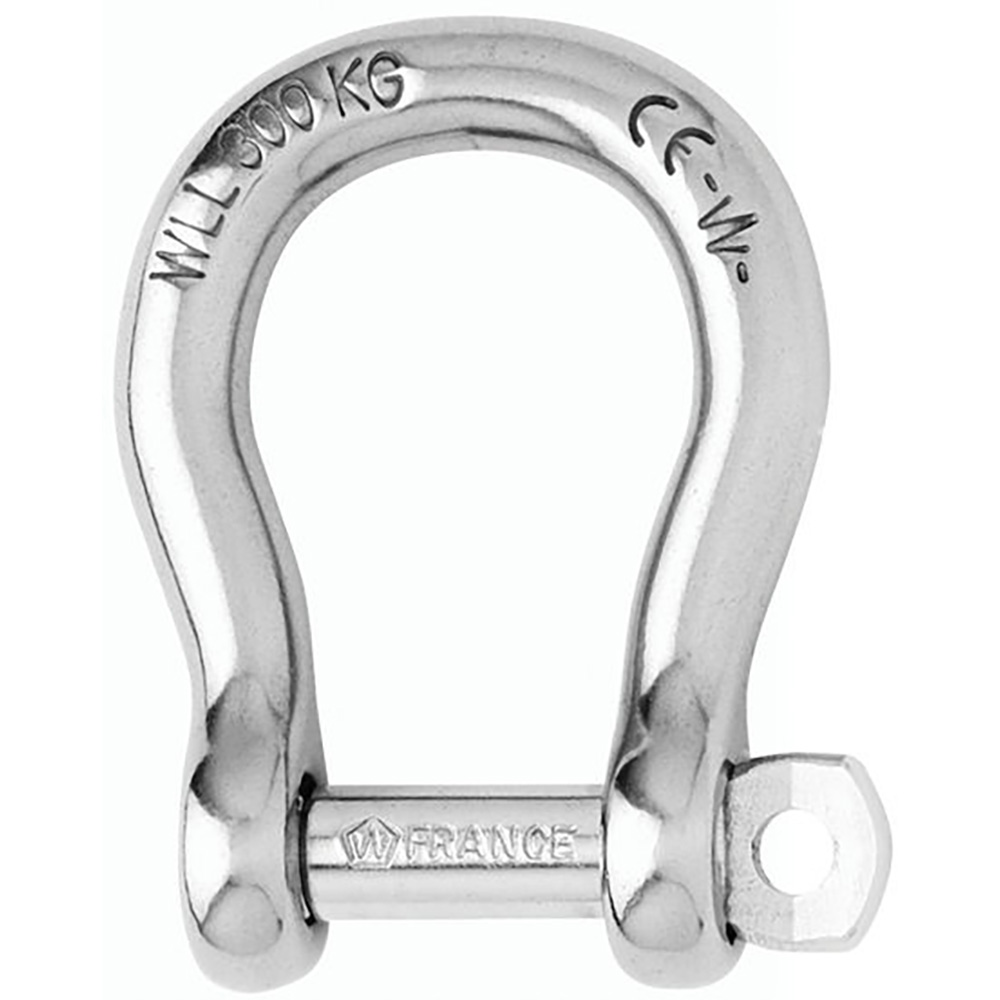

Not Self-Locking Bow Shackle – 16mm Diameter – 5/8″

Features:

• Bow shackle forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• WLL: only for industrial applications (lifting i.e…)
• CE marking
• Part # 01247 is not self-locking

Applications:

• To be used when ample room is required
• Possibility to attach several lines or cables

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 7050 / (kg) 3200
• WLL: (lb) 4400 / (kg) 2000
• Breaking load: (lb) 22040 / (kg) 10000
• Weight: (lb) 1.19 / (g) 540

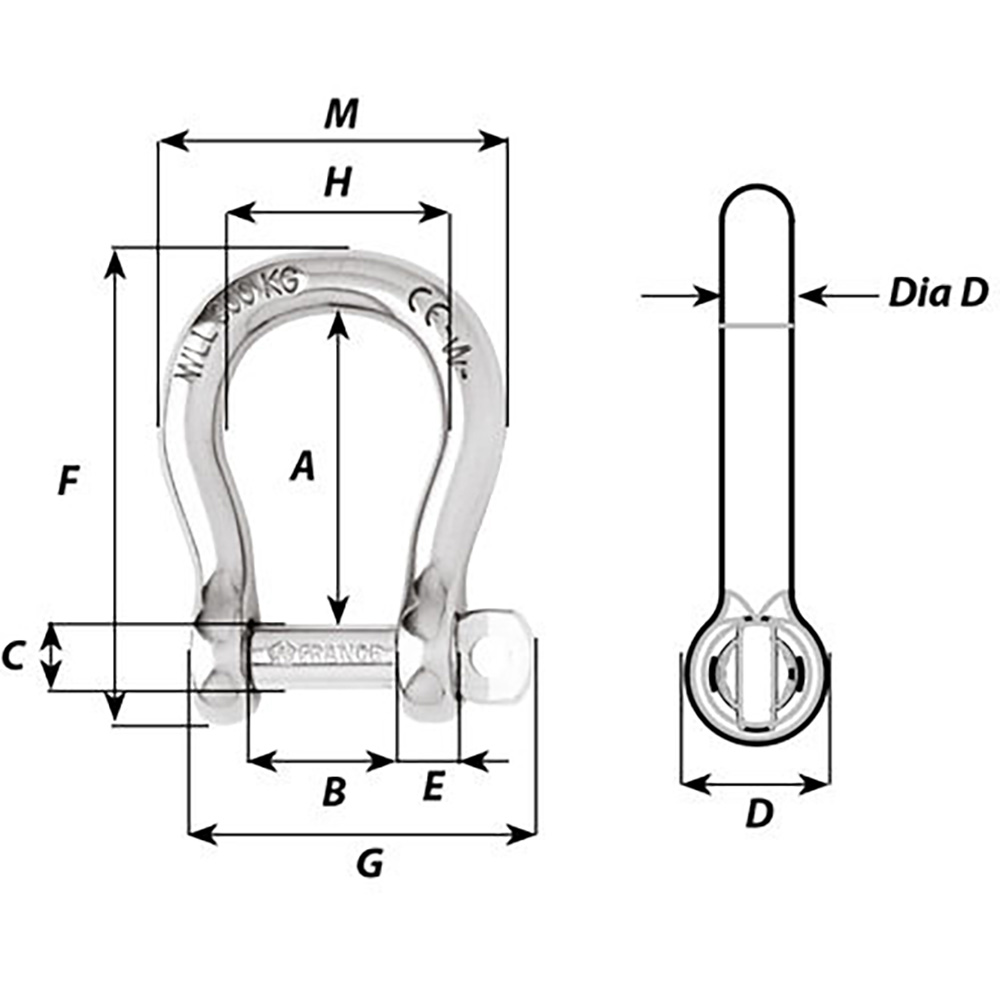

Dimensions:

• A: (inch) 2 3/4″ / (mm) 70
• B: (inch) 1 17/64″ / (mm) 32
• C: (inch) 35/64″ / (mm) 14
• D: (inch) 1 17/64″ / (mm) 14
• D diameter: (inch) 5/8″ / (mm) 16
• E: (inch) 19/32″ / (mm) 15
• M: (inch) 3 11/32″ / (mm) 85

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
  WLL = Breaking load / 5

*Sold as an Individual

Manufacturer : Wichard Marine
Manufacturer Part No : 01247
