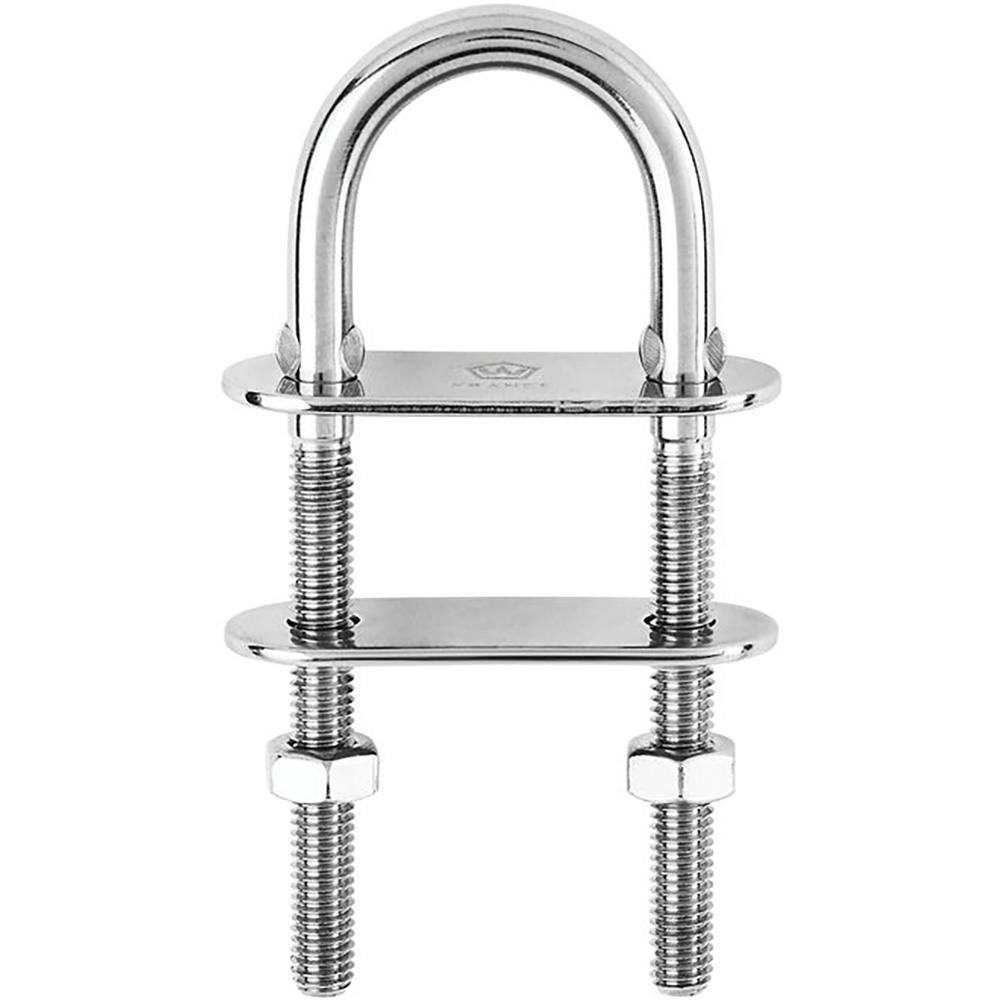

U-Bolt Pad Eye – 8mm Diameter – 5/16″ – 80mm Length – 3-5/32″

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks…)
• Delivered with bolts and counter-plate
• Max tightening torque: 18 mm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 5290 / (kg) 2400
• Breaking load: (lb) 10580 / (kg) 4800
• Weight: (lb) 0.251 / (g) 114

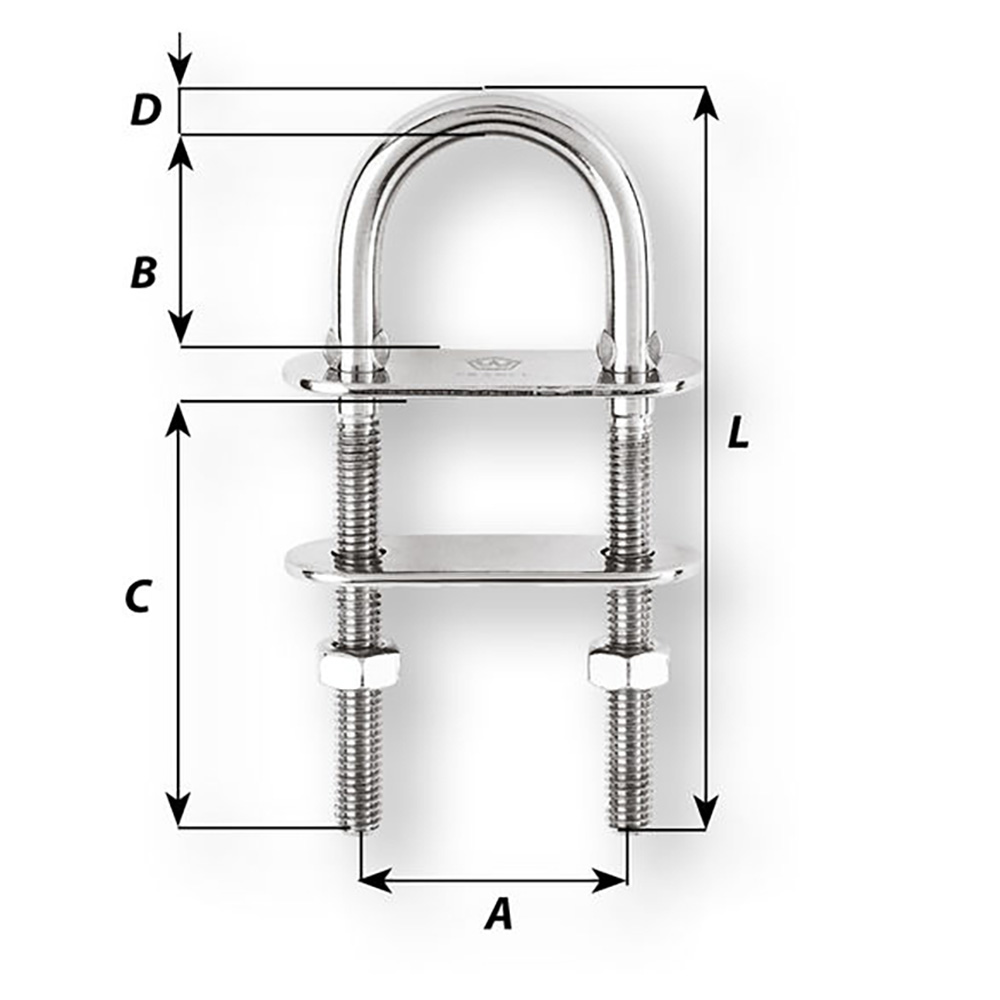

Dimensions:

• A: (inch) 1 27/64″ / (mm) 36
• B: (inch) 1 3/16″ / (mm) 30
• C: (inch) 1 37/64″ / (mm) 40
• D diameter: (inch) 5/16″ / (mm) 8
• Length: (inch) 3 5/32″ / (mm) 80

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Manufacturer : Wichard Marine
Manufacturer Part No : 06514
