Humminbird HB2124 CHIRP Radar

MPN: 750013-1
SKU: CW62429

Humminbird HB2124 CHIRP Radar

MPN: 750013-1

SKU: CW62429

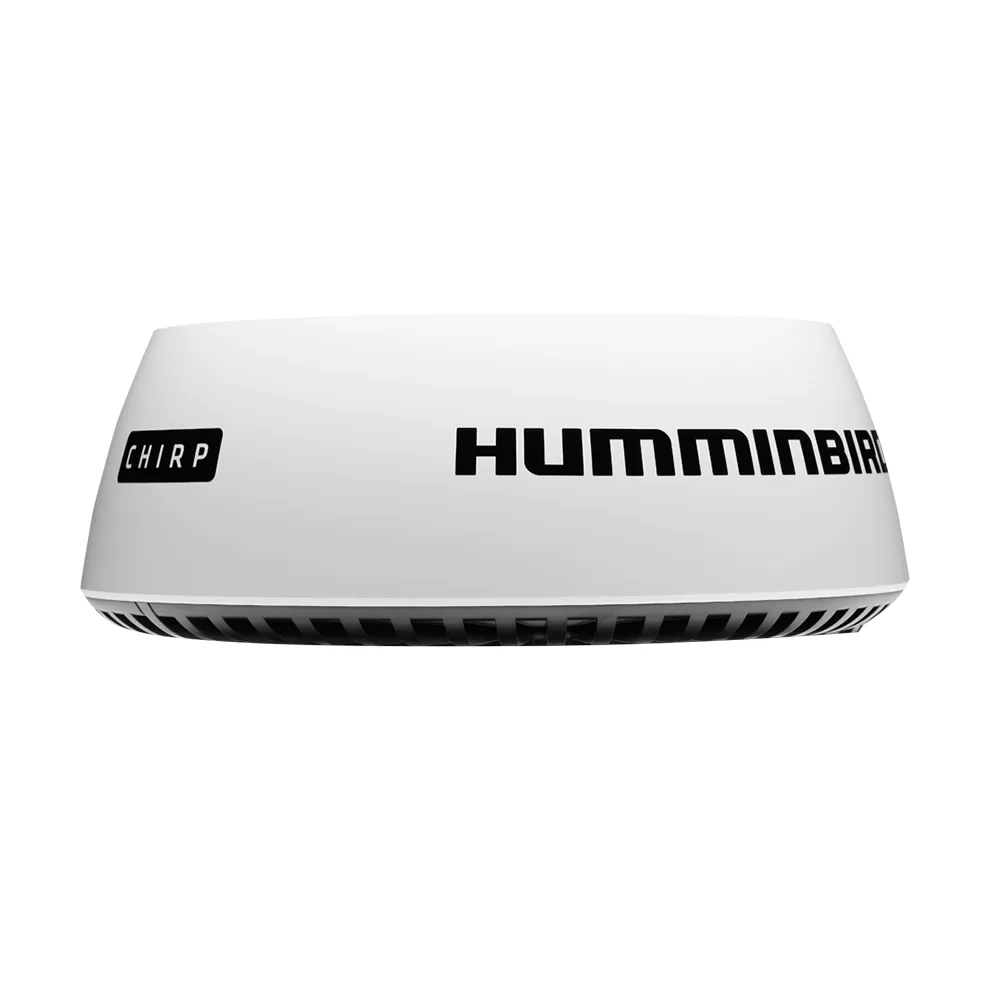

The HB2124 CHIRP Radar by Humminbird offers advanced radar imaging capabilities, enhancing situational awareness in low-visibility conditions. It is compatible with select HELIX and ONIX models, providing excellent tracking of weather and vessels. The radar excels in both long and short-range detection, making it ideal for fishing. Its compact design and solid-state technology set a new standard in radar performance.

Features:
  • Antenna Dimension - 21" Enclosed Dome
  • Antenna Type - Patch Array
  • Peak Power Output - 20W
  • Transmit Frequency - 9354 to 9446 MHz
  • Beam width (nominal) - 4.9? Horizontal and 20? Vertical

2 in stock

$1899.99

Free Shipping

OEM Parts

2 in stock

-

With 2-Day Shipping

Get By Friday 06/13

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Humminbird HB2124 CHIRP Radar

[mwai_chatbot id="default"]

About your product

Product Description

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

  • Antenna Dimension – 21″ Enclosed Dome
  • Antenna Type – Patch Array
  • Peak Power Output – 20W
  • Transmit Frequency – 9354 to 9446 MHz
  • Beam width (nominal) – 4.9° Horizontal and 20° Vertical
  • Input Voltage – 12 or 24 VDC (Miniumum – 10.8 Volts, Maximum – 31.2 Volts)
  • Networking – Ethernet
  • Maximum Range Scale – from 1/16 to 24 nautical miles
  • Power Consumption – Transmit mode – 17W; Standby Mode – 7W; Sleep Mode – 2W
  • Duplexer – Circulator
  • Pulse Widths @ 3 dB – 40 ns to 14.7µs
  • CHIRP Lengths – 400 ns to 20µs
  • CHIRP Bandwidth – Up to 32 MHz
  • IF Bandwidth – 26 MHz
  • Noise – Less than 4 dB
  • Polarization – Horizontal
  • Waterproofing – IPX6
  • Weight – 12.3 lbs (5.6 kg)
  • Compatibility Networking HELIX models and all ONIX models

Manufacturer : Humminbird
Manufacturer Part No : 750013-1
UPC : 082324050169
