Maretron Mid Double-Ended Cordset – 2 Meter – Gray

MPN: DM-DG1-DF-02.0
SKU: CW46990

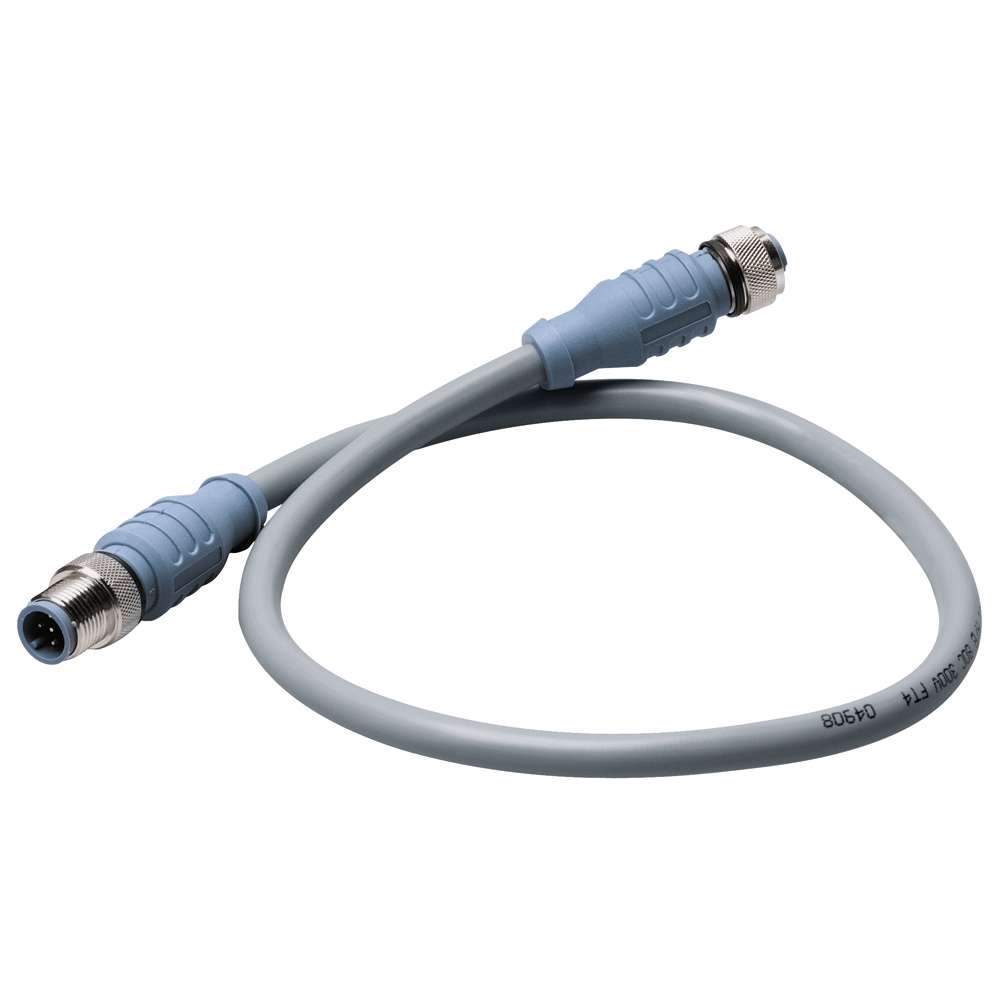

Maretron Mid Double-Ended Cordset - 2 Meter - Gray

Maretron Mid Double-Ended Cordset – 2 Meter – Gray

MPN: DM-DG1-DF-02.0

SKU: CW46990

The Maretron Mid Double-Ended Cordset is a high-quality electrical connector designed for durability and performance. It features robust materials and a wide temperature range, making it suitable for various environments. The cordset is NMEA 2000 approved and meets multiple safety standards. Its design ensures reliable connectivity in demanding applications.

Features
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Current Rating: 4.0 Amps, Voltage Rating: 250 V
  • Outer Jacket Mat/Color: PVC/Gray
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • NMEA 2000 Approved, UL and CSA certified

Categories: ,

3 in stock

$33.20

UPS Ground

OEM Parts

3 in stock

-

With 2-Day Shipping

Get By Monday 06/02

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Maretron Mid Double-Ended Cordset – 2 Meter – Gray

[mwai_chatbot id="default"]

About your product

Product Description

Maretron Mid Double-Ended Cordset – 2 M Gray

Mechanical:

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″

    Electrical

  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V

    Cable

  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: PE (data pair), PVC (power pair)
  • Number of Conductors: 2×16 (1.29mm) AWG, Data 2×20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
  • Shielding (3 Levels): Alum/Polyester Foil (Overall), Foil (Power Pair), Foil (Data Pair)

    ENVIRONMENTAL

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

    APPROVALS

  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
  • NMEA: NMEA 2000 Approved
  • IEC: IEC 61162-3
    Manufacturer : Maretron
    Manufacturer Part No : DM-DG1-DF-02.0
    UPC : 873804001784
    • Specs & Manuals

    Additional information

    Weight 0.50 lbs
    Dimensions 9.00 × 7.00 × 1.00 in
