MaretronMicro Double-Ended Cordset – 0.5M – *Case of 6*

MPN: CM-CG1-CF-00.5CASE
SKU: CW68298

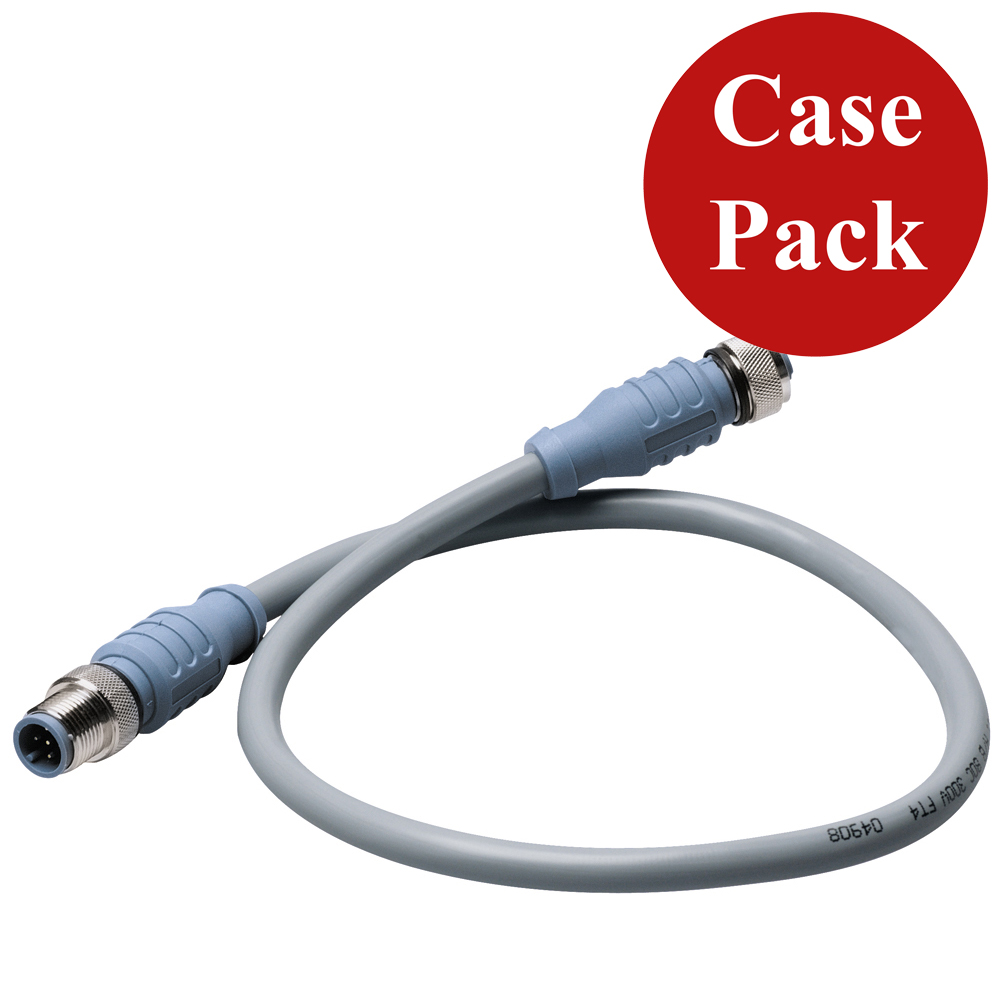

MaretronMicro Double-Ended Cordset - 0.5M - *Case of 6*

MaretronMicro Double-Ended Cordset – 0.5M – *Case of 6*

MPN: CM-CG1-CF-00.5CASE

SKU: CW68298

The Micro Double-Ended Cordset is a durable and versatile product designed for various applications. It features a thermoplastic PUR body, brass contacts, and a PVC outer jacket. The cordset supports 4.0 Amps and 250 V, with a temperature rating from -40?C to 80?C. It is UL and NMEA 2000 approved.

Features
  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40?C to 80?C

Categories: ,

2 in stock

$139.29

Free Shipping

OEM Parts

2 in stock

-

With 2-Day Shipping

Get By Sunday 05/04

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The MaretronMicro Double-Ended Cordset – 0.5M – *Case of 6*

[mwai_chatbot id="default"]

About your product

Product Description

Micro Double-Ended Cordset – 0.5M – *Case of 6*

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59″ Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40° C to 80° C to (-40° F to 176° F)Approvals
  • (Cable) UL: PLTC 75° C Sunlight Resistant E90625, AWM 80° C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75° C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

Manufacturer : Maretron
Manufacturer Part No : CM-CG1-CF-00.5CASE

Specs & Manuals

Additional information

Weight 0.60 lbs
Dimensions 5.00 × 5.00 × 1.00 in
