Maxwell ANCHORMAX Windlass

MPN: ANCHORMAX
SKU: CW14941
Maxwell ANCHORMAX Windlass

Maxwell ANCHORMAX Windlass

MPN: ANCHORMAX

SKU: CW14941

The ANCHORMAX™ Windlass offers a high power to weight ratio and is designed for boats ranging from 5m to 10m. Its compact, sealed gearbox and easy installation make it a practical choice for boaters. The unit is supplied with essential accessories for immediate use. However, it is not suitable for hauling halyards or chain.

Features:
  • Extremely high power to weight ratio
  • Compact, fully sealed gearbox with a vertically mounted motor
  • Minimized intrusion below decks, ideal for 5m to 10m boats
  • Simple installation without dismantling the winch
  • Marine-grade alloy gear housings and stainless steel drum

Categories: ,

Out of stock

$832.29

Free Shipping

OEM Parts

Out of stock

With 2-Day Shipping

Get By Sunday 05/04

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Maxwell ANCHORMAX Windlass

[mwai_chatbot id="default"]

Frequently Bought Together:

About your product

Product Description

ANCHORMAX™ Windlass

Features:

  • Has an extremely high power to weight ratio
  • ompact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor
  • Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft)
  • Fitting to the boat is simplicity itself as no dismantling of the winch is required
  • Gear housings are marine-grade alloy and the drum is stainless steel
  • Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions
  • Not recommended for use to haul halyards
  • Not recommended for use to haul chain

Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings.

STANDARD EQUIPMENT

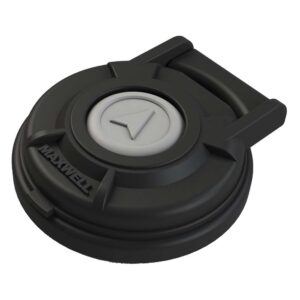

  • Footswitch

SPECIFICATIONS
Maximum Line Pull 386kg (850lb)
Speed @ nominal working load 24m/min (76ft per min) (80 amps with 100kg/220lb load)
Voltage 12v
Power 600w
Weight 8kg(17.6lb)
Maximum Boat Load 10m (33ft)
Max. Boat Weight 4 Tons

Manufacturer : Maxwell
Manufacturer Part No : ANCHORMAX
UPC : 1000000001853

Specs & Manuals
Quick Guide

Additional information

Weight 18.00 lbs
Dimensions 14.00 × 9.00 × 9.00 in
