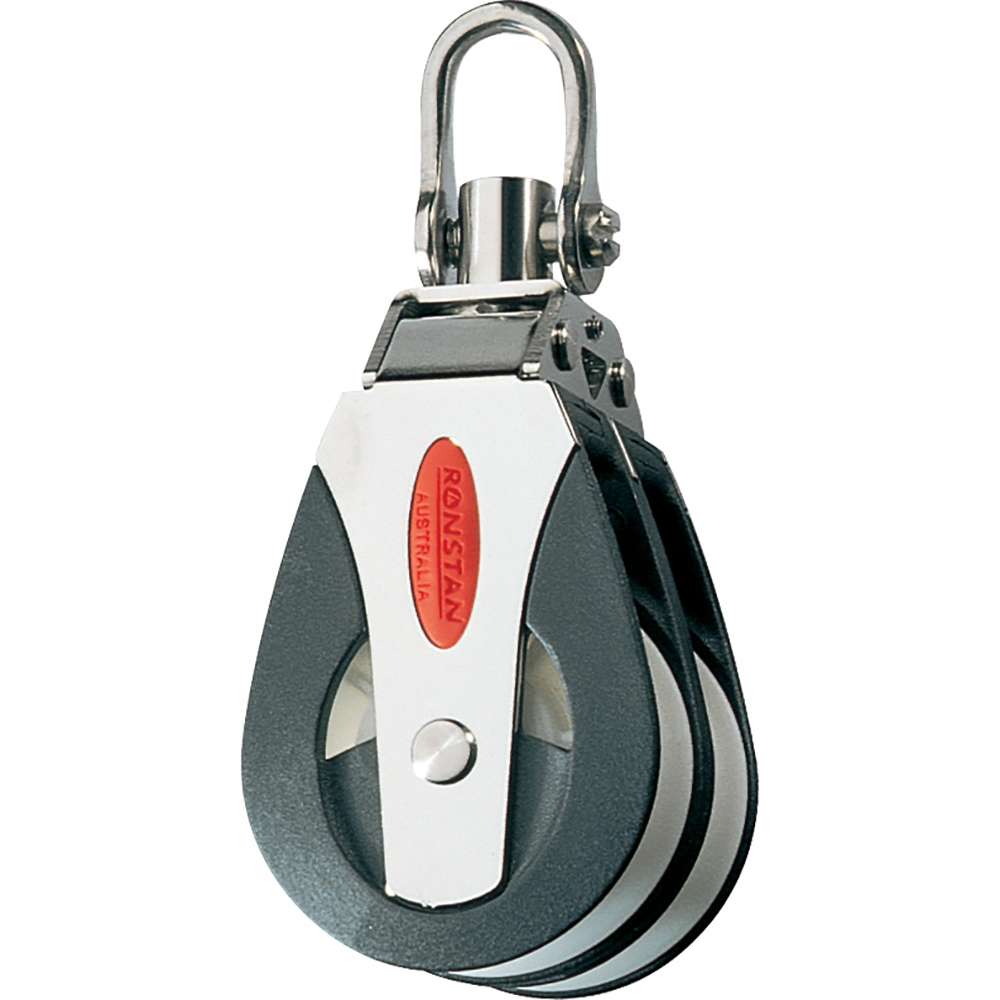

Series 50 All Purpose Block – Double

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Swivel shackle head for full 360 degree rotation (non-locking).

Features:

• Exceptionally high working loads
• Low maintenance & long service life
• Self-lubricating Acetal polymer sheave ensures low friction and extreme durability
• Slotted pin shackle eliminates fouled lines

Applications:

• Mainsheet and halyard applications, vang and spinnaker control lines on boats to (33ft). 10m
• S60 – on boats up to 40ft, (12m)

Materials:

• Grade 316 stainless steel load strap
• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:

• Sheave Diameter: (inch) 2″ / (mm) 50
• Max Rope Diameter: (inch) 1/2″ / (mm) 12
• Pin Diameter: (inch) 1/4″ / (mm) 6
• Maximum Working Load: (lb) 2200 / (kg) 1000
• Breaking Load: (lb) 4410 / (kg) 2000
• Weight: (oz) 9.0 / (g) 255

Manufacturer : Ronstan
Manufacturer Part No : RF51200
UPC : 9316800241231
