Shakespeare 5206-N 8′ VHF Antenna

MPN: 5206-N
SKU: CW10627

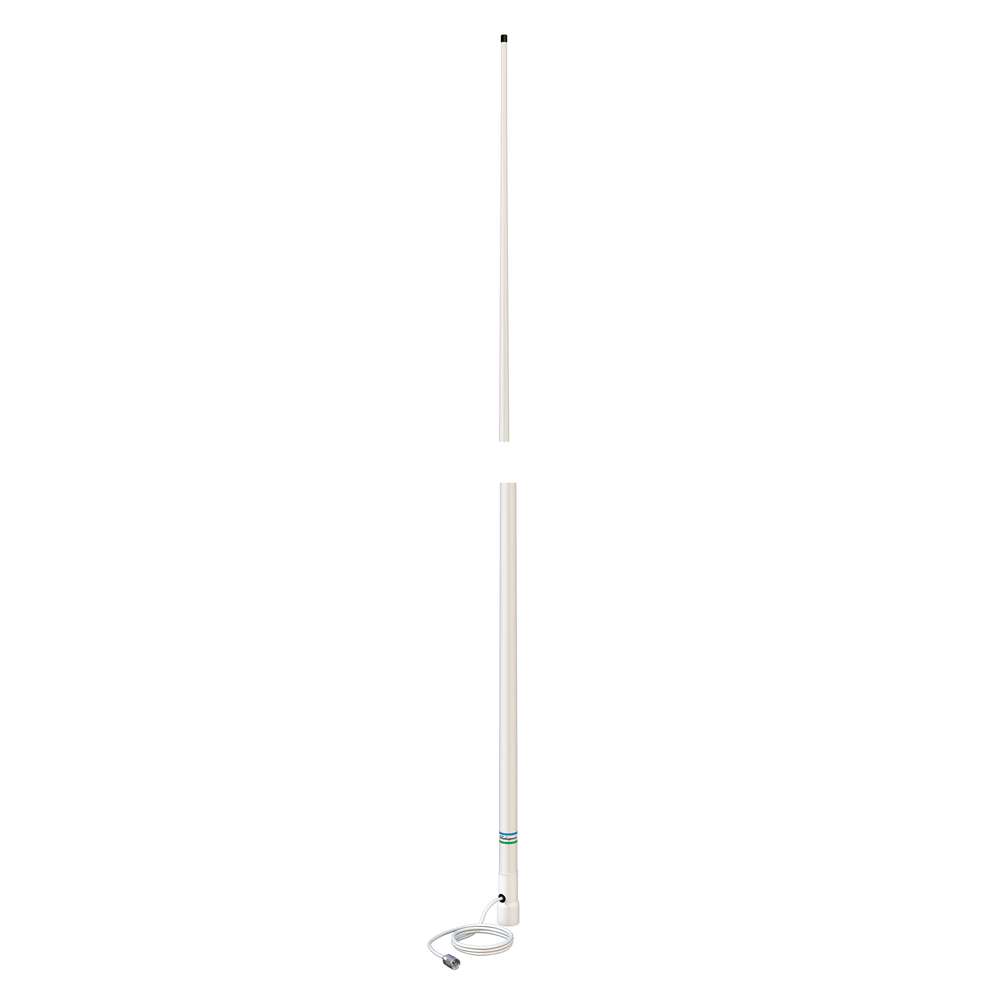

Shakespeare 5206-N 8' VHF Antenna

Shakespeare 5206-N 8′ VHF Antenna

MPN: 5206-N

SKU: CW10627

The Shakespeare Style 5206-N VHF Marine antenna is an economical and lightweight option designed for effective communication. With an 8' length and 6dB gain, it features a nylon ferrule and is suitable for various mounting options. This antenna is ideal for users where range is not the primary concern. It comes with a 2-year warranty for added peace of mind.

Features
  • Quality copper cable elements for good range and efficiency
  • Nylon ferrule with standard 1"-14 thread
  • Includes 15' RG-58 cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
  • Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas

Categories: ,

51 in stock

$79.29

Free Shipping

OEM Parts

51 in stock

-

With 2-Day Shipping

Get By Sunday 05/18

Add to wishlist

30 Day Returns

Click to read our policy

Same Day Shipping

Order before 3PM EST

Always Low Prices
Marine
Co-Pilot
Marine Co-Pilot
Shopping Assistant

Sample Questions:

What is the weight and length?

Does it come with the motor?

What is the manfu. part number?

Ask Any Question About The Shakespeare 5206-N 8′ VHF Antenna

[mwai_chatbot id="default"]

Frequently Bought Together:

About your product

Product Description

Shakespeare Style 5206-N VHF Marine – Reduced Length Version

8′ LENGTH 6dB

END-FED WITH MATCHING STUB

Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

  • Quality copper cable elements for good range and efficiency
  • Nylon ferrule with standard 1"-14 thread
  • Includes 15′ RG-58 cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
  • Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
  • One section
  • Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency: VHF Marine band
Bandwidth: 3 MHz
SWR: 1.5:1 @156.8 MHz
Impedance: (Ohms): 50
Gain: 6 dB
Max Input (Watts): 50
DC Ground: NO – the antenna will read "open circuit" when checked with an ohm meter or continuity tester.
Termination: RG-58
Height (feet): 8
Polarization: Vertical
Radiation pattern: Omni-directional

Manufacturer : Shakespeare
Manufacturer Part No : 5206-N
UPC : 719441100186

Specs & Manuals
Quick Guide

Additional information

Weight 2.40 lbs
Dimensions 95.00 × 3.00 × 3.00 in
Brand

UPC

MPN
