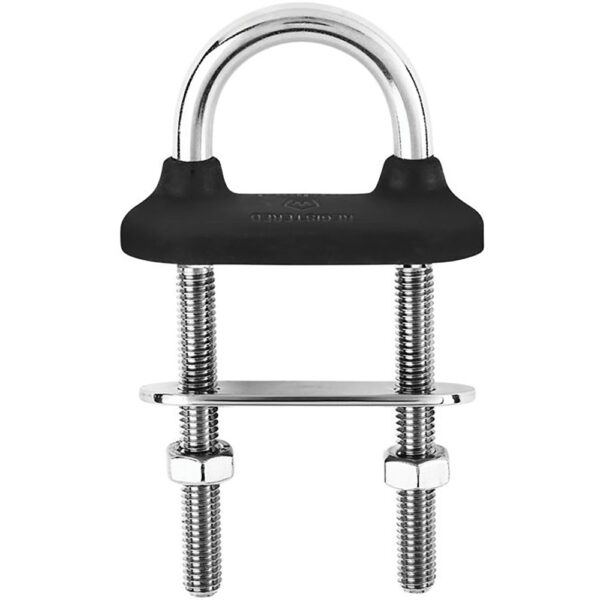

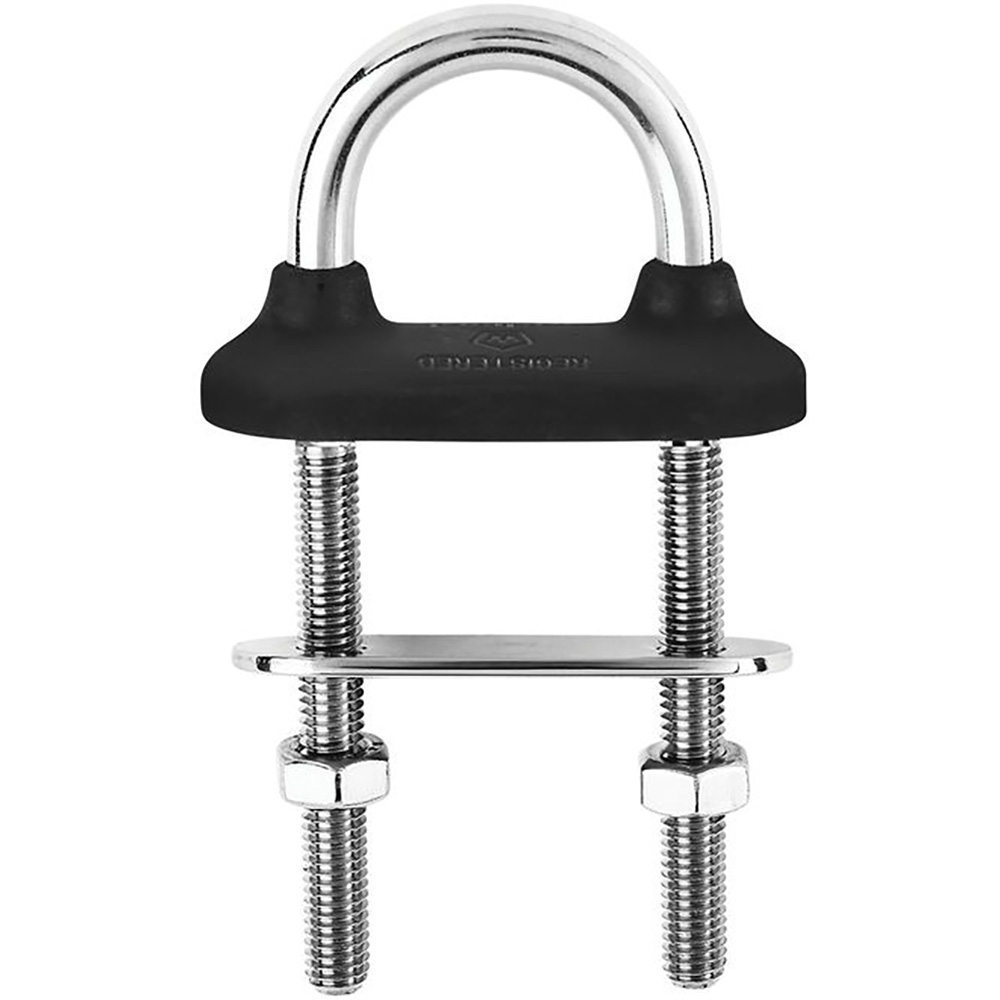

Black Watertight U-bolt – 5mm Diameter – 13/64″ – 60mm Length – 2-23/64″

Features:

• Fully drop-forged product with high-quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 4.5 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Color: Black
• Working load: (lb) 1410 / (kg) 640
• Breaking load: (lb) 4400 / (kg) 2000
• Weight: (lb) 0.077 / (g) 35

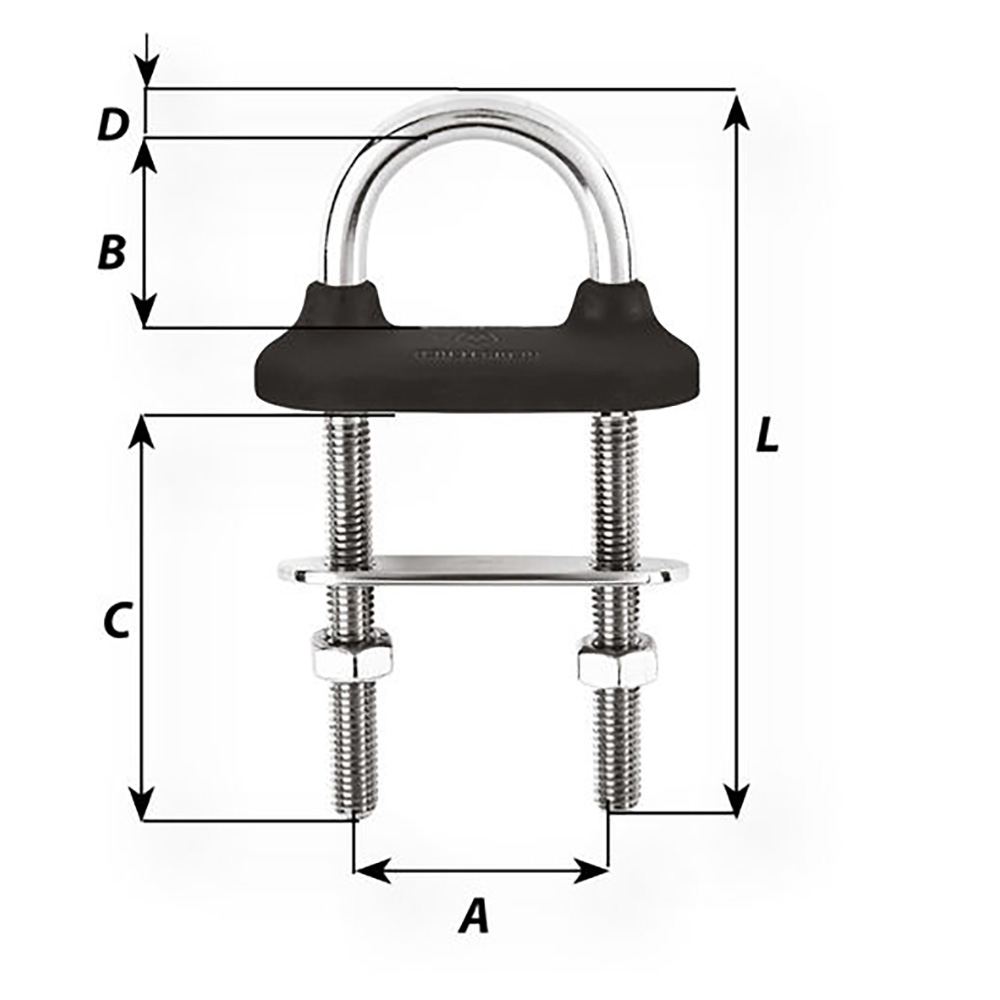

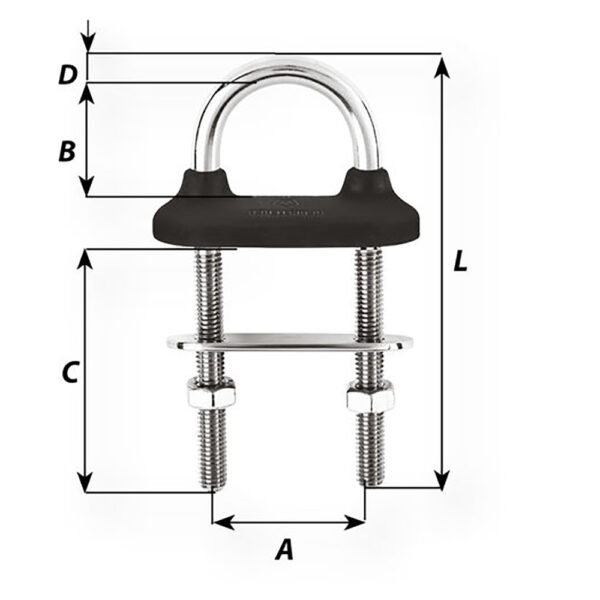

Dimensions:

• Length: (inch) 2 23/64″ / (mm) 60
• A: (inch) 1 7/64″ / (mm) 28
• B: (inch) 53/64″ / (mm) 21
• C: (inch) 1 3/16″ / (mm) 30
• D diameter: (inch) 13/64″ / (mm) 5

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Manufacturer : Wichard Marine
Manufacturer Part No : 65321
